Features
-Termination: Supports soldering or PCB mount for secure attachment to the printed circuit board.
-Material: Often constructed from metal (e.g., steel, brass) for durability and good electrical conductivity.
-Shielding: Provides electromagnetic interference (EMI) shielding, crucial for applications requiring noise reduction and signal integrity.
-Polarization: Keying features to ensure correct orientation during mating, preventing mismating and potential damage.
Applications
1.Medical Devices
2.Test and Measurement Instruments
3.Military and Aerospace Applications
4.Automotive Electronics
Specifications

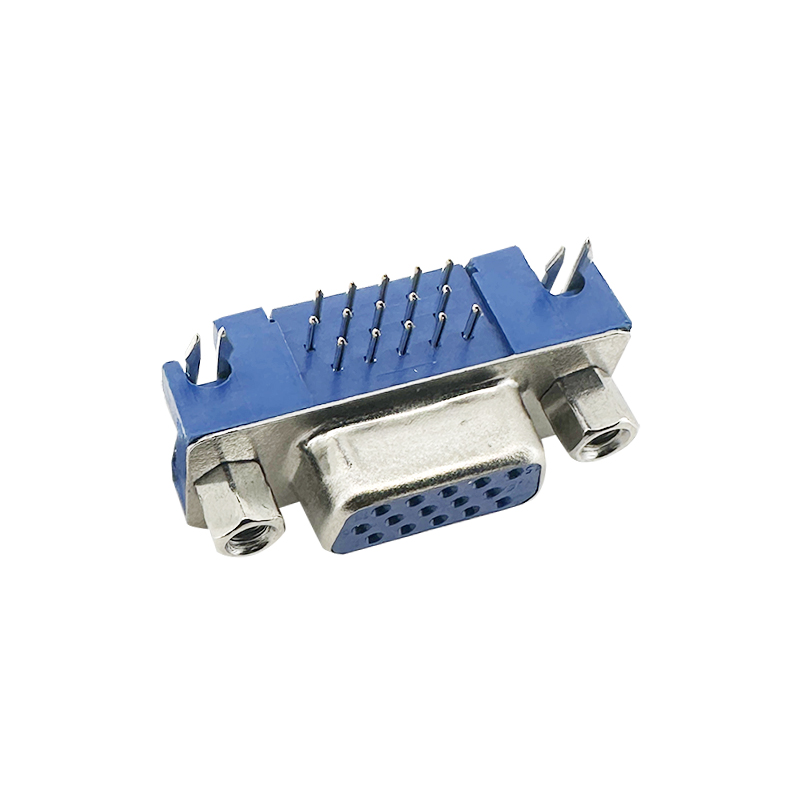

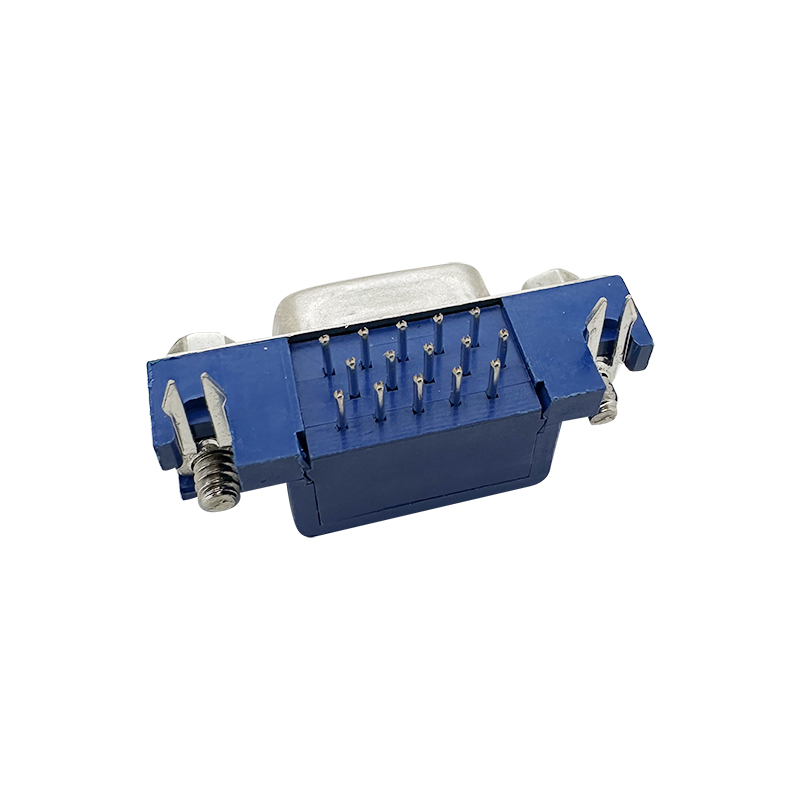

HDR 3 Row D-SUB Connector,15P Female,Right angle,3.08mm
Order Information
RHTAYD15-15-F-L
Type:15 Or 15B
15-No.of 15pins
F-Female
L-Blue B-Black
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
Technical Documents
Please contact us for more information.
