Features
-Connector Type: D-SUB (Dual Row)
-Number of Pins: 9P, 15P, 25P, 37P
-Orientation: Right Angle
-Pitch: Typically 8.1mm pitch between pins
Applications
1.Computer Peripherals
2.Industrial Equipment
3.Telecommunications
4.Test and Measurement Equipment
Specifications

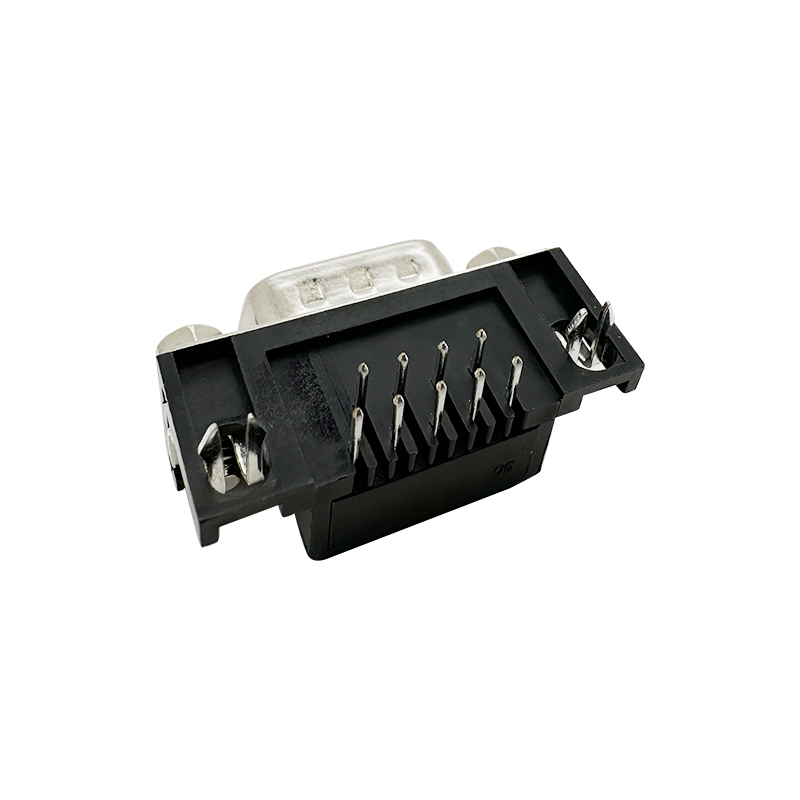

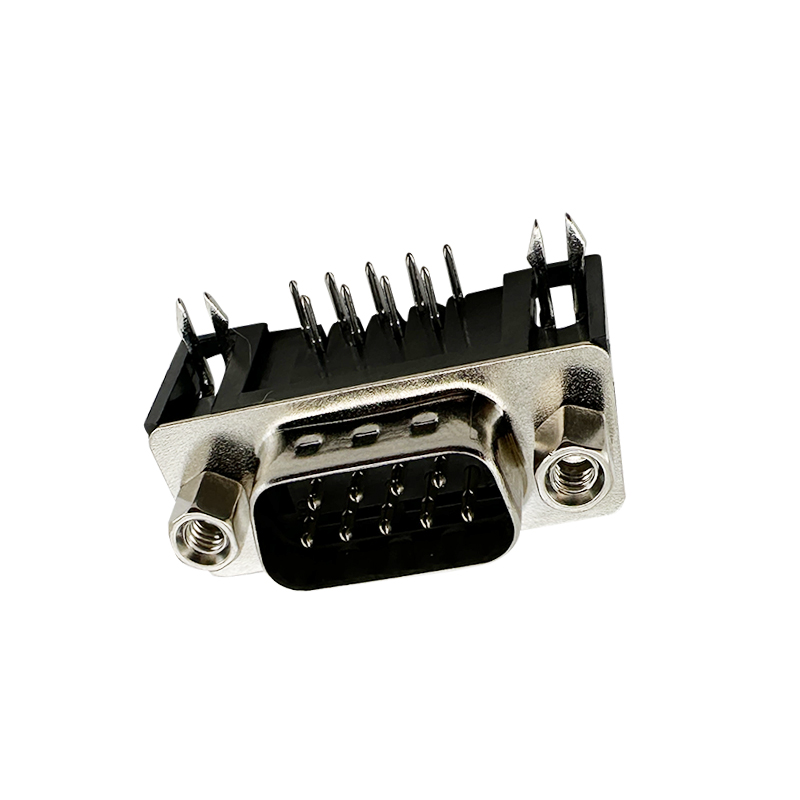

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,8.1mm
Order Information
RHTAYB15-XX-M-B
Type:15 Or 15B Or 15C
XX-No.of 09,15,25,37pins
M-Male F-Female
B-Black L-Blue
Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Electrical Characteristics:
Current Rating: 5 AMP
Insulator Resistance: 1000MΩ Min. at DC 500V
Withstanding Voltage: 500V AC (rms) for 1 minute
Contact Resistance: 20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
Technical Documents
Please contact us for more information.
D-Sub connectors & D-SUB hood is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of D-Sub connectors & D-SUB hood.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,8.1mm :RHTAYB15
