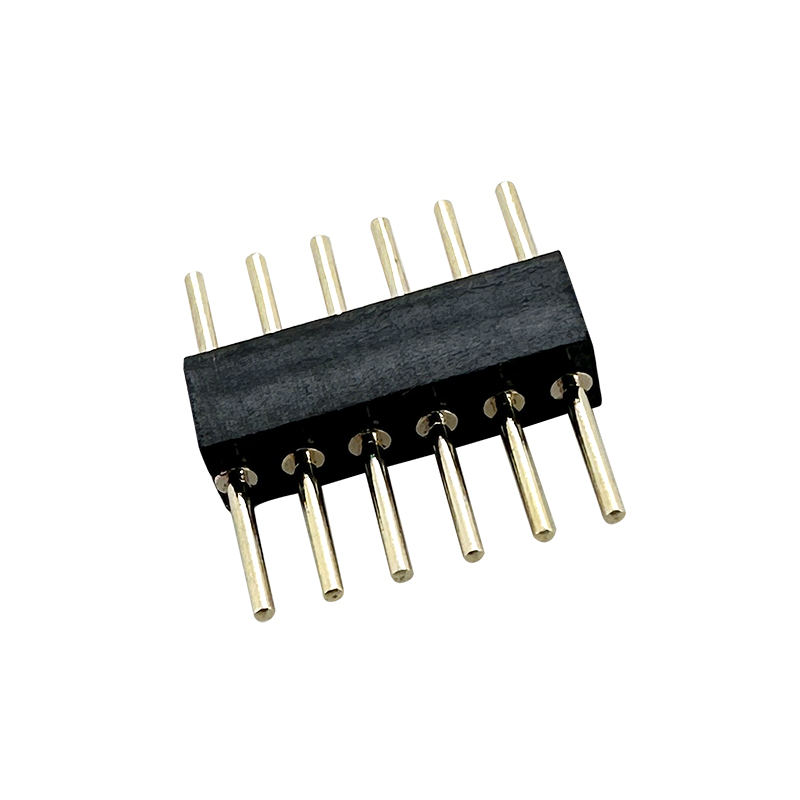

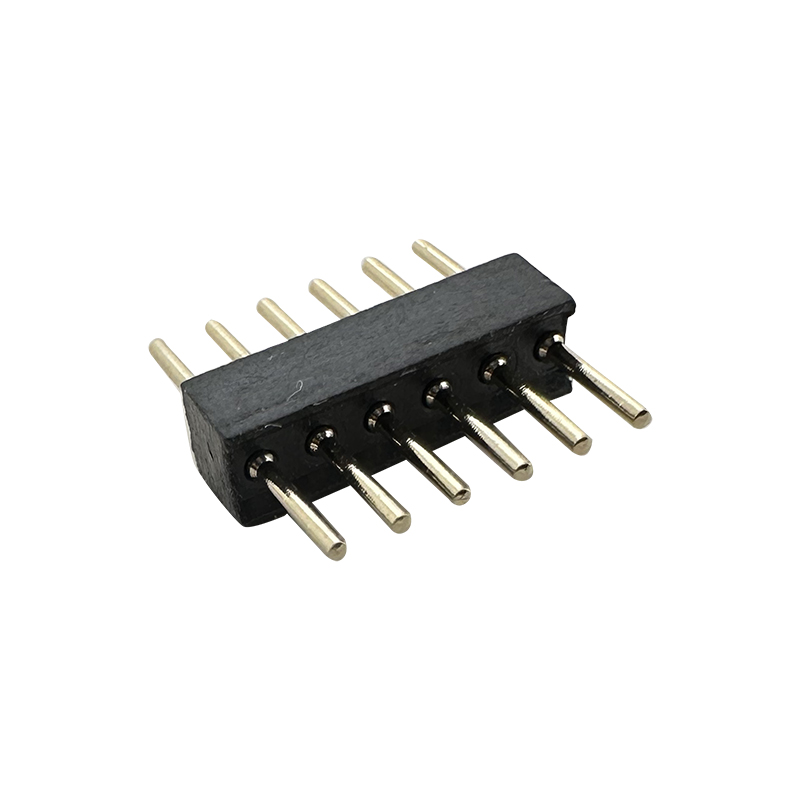

1.778mm IC Swiss Round Pin Header Connector
Order Information
RE-C-209XD-1-XX-S1
1-Single layer
XX-Total pin number (No.of 2~50pins)
S1-Straight Pin R-Right Angle Pin
Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts: Brass
Plating: Gold 1.25u" over 50u" nickel
Electrical Characteristics:
Current Rating: 2.0 AMP
Voltage Rating: 60V AC/DC
Insulator Resistance: 1000M Ohm min at 100V AC
Contact Resistance: 20m Ohm max
Operating Temperature: -40ºC~+105ºC
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
