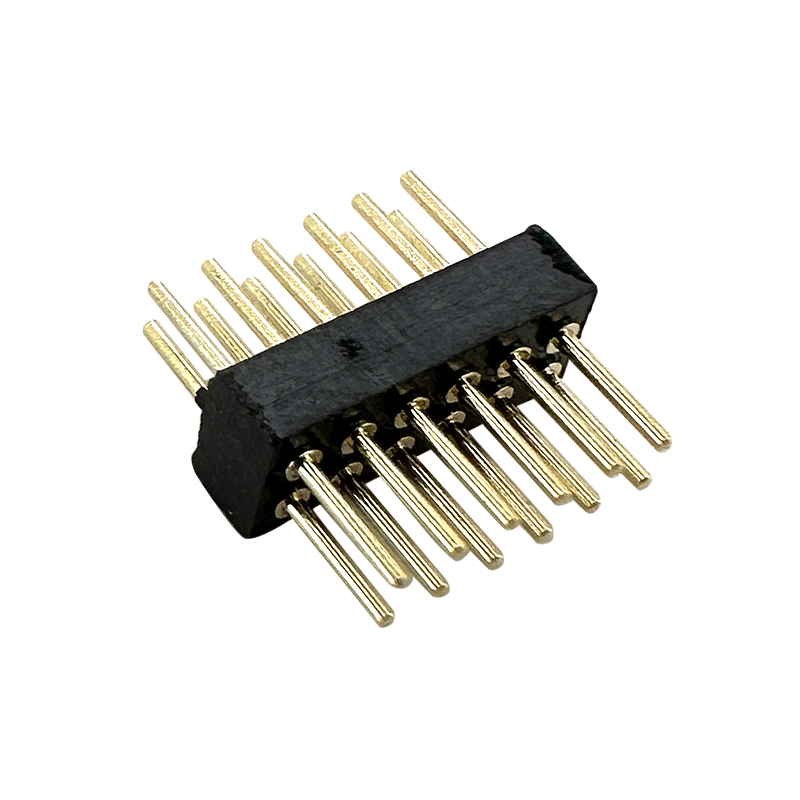

1.27x1.27mm IC Swiss Round Pin Header Connector
Order Information
RE-C-209XC-2.2-1-XX-S
Height:2.2mm,1.9mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pins)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts: Brass
Plating: Gold plated over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 60V AC/DC
Insulator Resistance: 1000M Ohm min at 100V AC
Contact Resistance: 20m Ohm max
Operating Temperature: -40ºC~+105ºC
