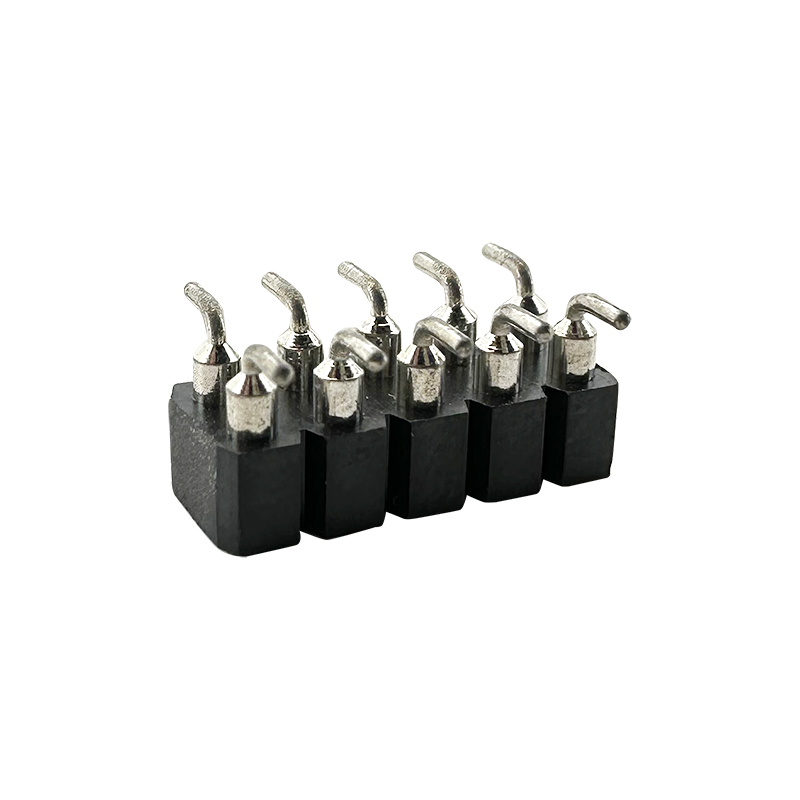

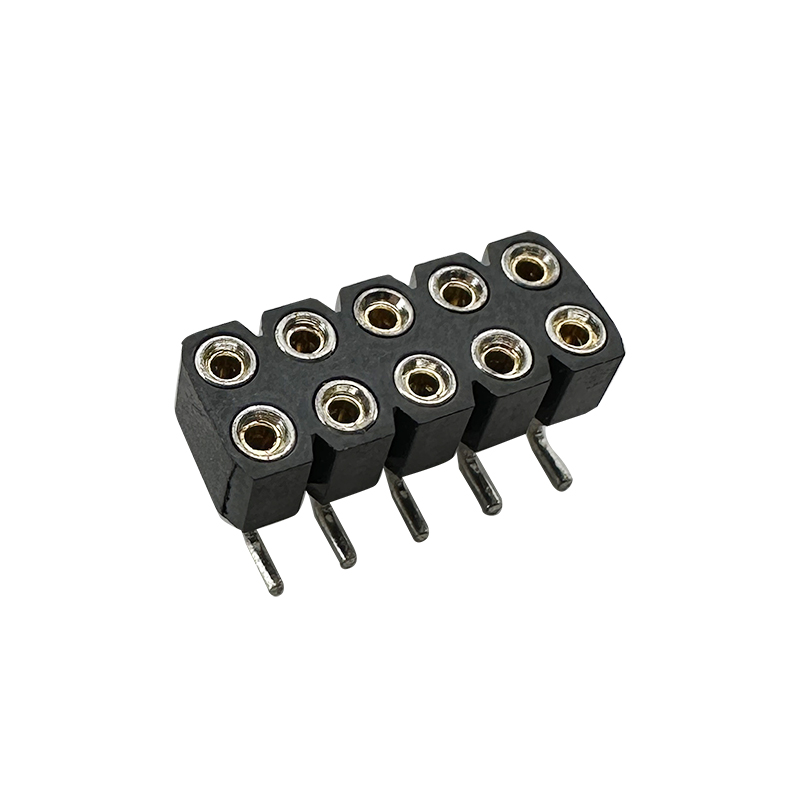

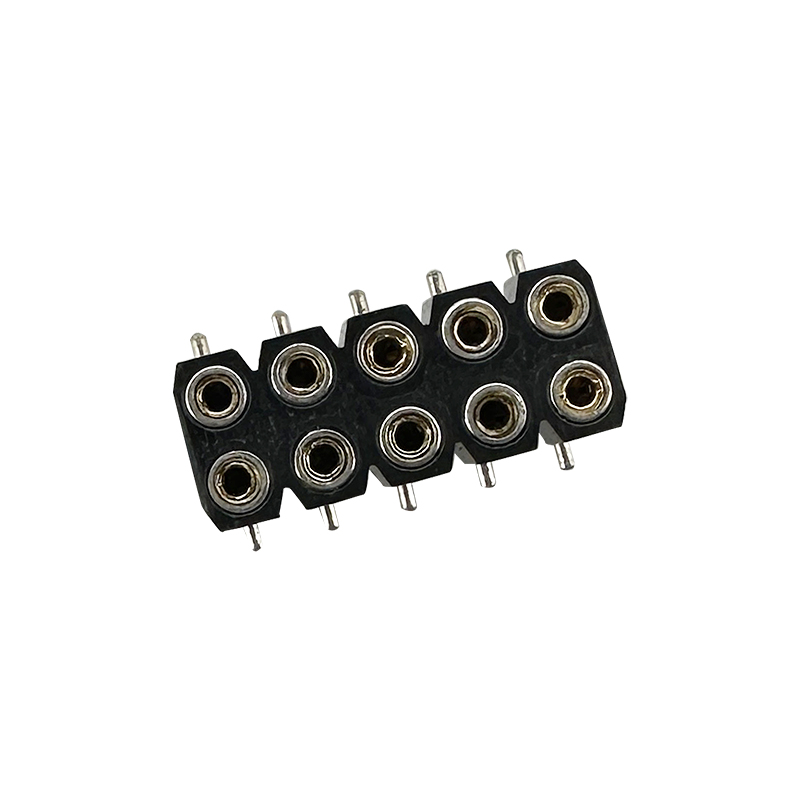

    2.0mm SIP Socket Connector :RHTAY09B

    Series Part No: RHTAY09B
    RoHS Compliance: Yes
    Download
    Datasheet:


    Write Your Request Full P/N


    Features

    -Termination Style: Designed for through-hole mounting on PCBs (Printed Circuit Boards). The SIP socket connector has leads (pins) that extend through holes in the PCB and are soldered on the opposite side. This soldering method provides a secure and permanent connection.

    -Current Rating and Voltage: The connector is rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications. This information is typically specified by the manufacturer.

    -Keying and Polarization: Some versions of the SIP socket connector may feature keying or polarization features to ensure proper alignment during mating and prevent incorrect connections. This helps maintain electrical integrity and prevents damage to components.

    -Environmental Considerations: Designed to operate reliably in various environmental conditions, including temperature fluctuations, vibration, and mechanical stress. This makes the SIP socket connector suitable for use in applications where durability and reliability are critical.


    Applications

    1.Industrial Automation and Control Systems

    2.Automotive Electronics

    3.Medical Devices and Equipment

    4.DIY Electronics and Prototyping


    Specifications

    2.0mm Pitch  SIP Socket Connector

    Order Information

    RHTAY09B-1-XX-S

    1-Single layer   2-Double layer

    XX-Total pin number  (No.of 2~80pins)

    S-Straight Pin  R-Right Angle Pin   T-SMT Pin

    Material:

    Housing: 30% Glass filled PPS UL94V-0

    Contacts: Phosphor Bronze or Brass

    Plating: Gold 1.25u" over 50u" nickel

    Electrical Characteristics:

    Current Rating: 3.0 AMP

    Insulator Resistance: 1000M Ohm min. at DC 100V

    Contact Resistance: 10m Ohm max.

    Operating Temperature: -45ºC~+105ºC


    Technical Documents

    Please contact us for more information.
