    IC socket & PLCC socket & ZIF socket connectors : RE-C-209E & RE-C-209EA

    Series Part No: RE-C-209E & RE-C-209EA
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews

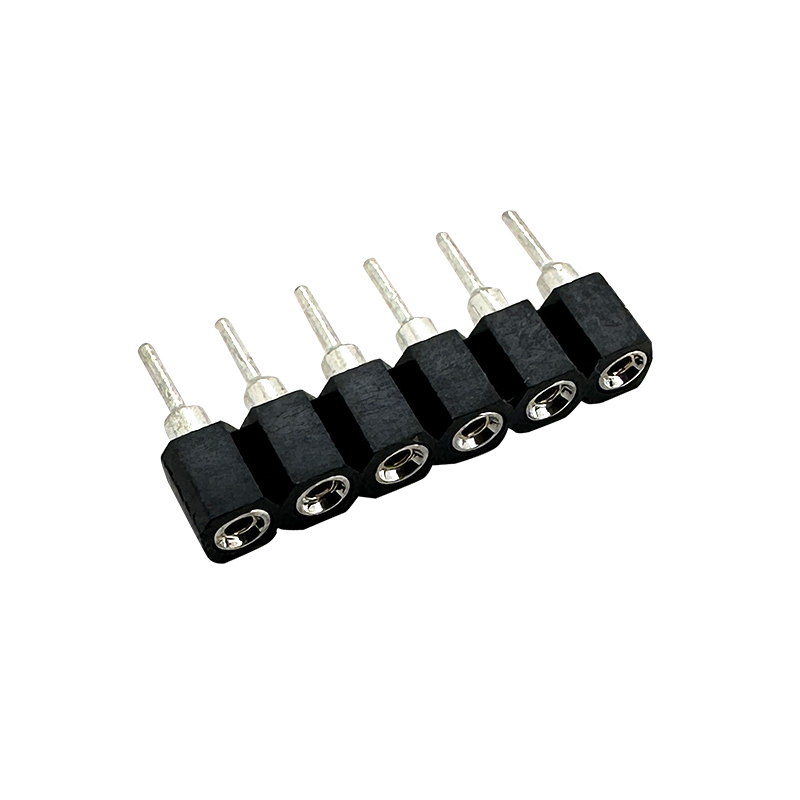

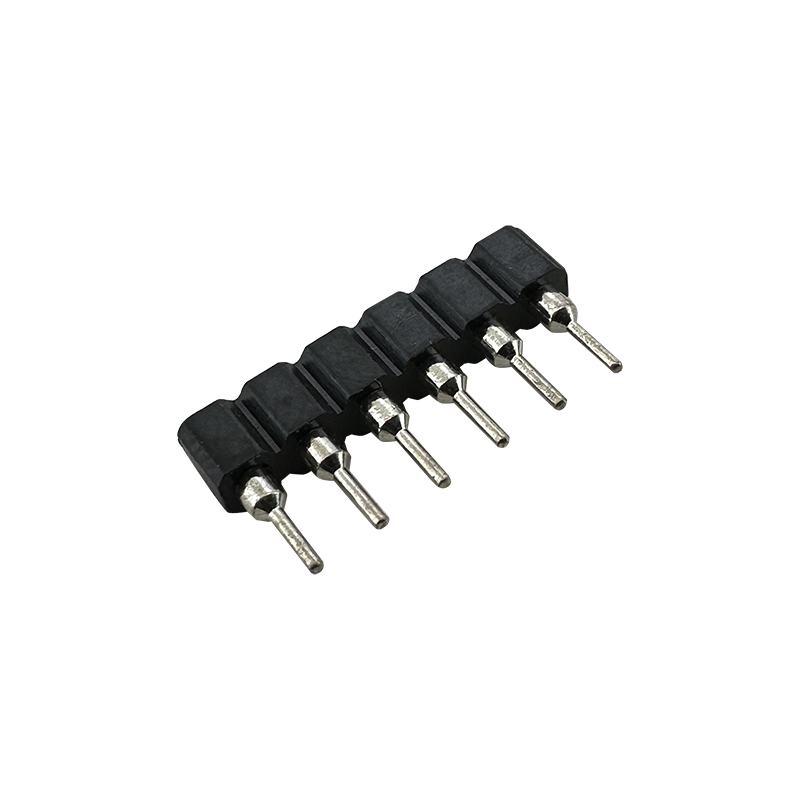

    2.54mm Pitch SIP Socket Connector

    Order Information
    RE-C-209E-1-XX-S
    1-Single layer  2-Double layer
    XX-Total pin number  (No.of 1~80pin)
    S-Straight Pin 17.8mm   S2=Straight Pin 14.3mm

    Order Information
    RE-C-209EA-1-XX-S1
    1-Single layer  2-Double layer
    XX-Total pin number  (No.of 1~80pin)
    S1-Straight Pin 9.2mm     S2=Straight Pin 10.2mm  S3-Straight Pin 11.2mm
    S4-Straight Pin 12.2mm   S5=Straight Pin 13.2mm  S6-Straight Pin 14.2mm
    S7-Straight Pin 14.2mm

    Material:
    Housing: 30% Glass filled PPS UL94V-0
    Contacts: Phosphor Bronze or Brass
    Plating: Gold 1.25u" over 50u" nickel
    Electrical Characteristics:
    Current Rating: 3.0 AMP
    Insulator Resistance: 1000M Ohm min. at DC 100V
    Contact Resistance: 10m Ohm max.
    Operating Temperature: -45ºC~+105ºC
