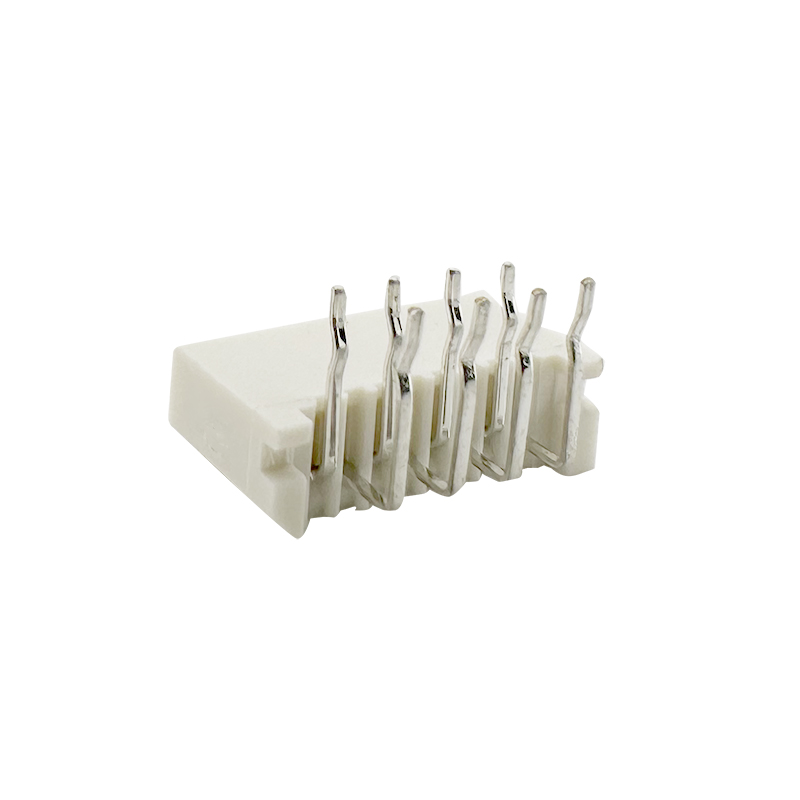

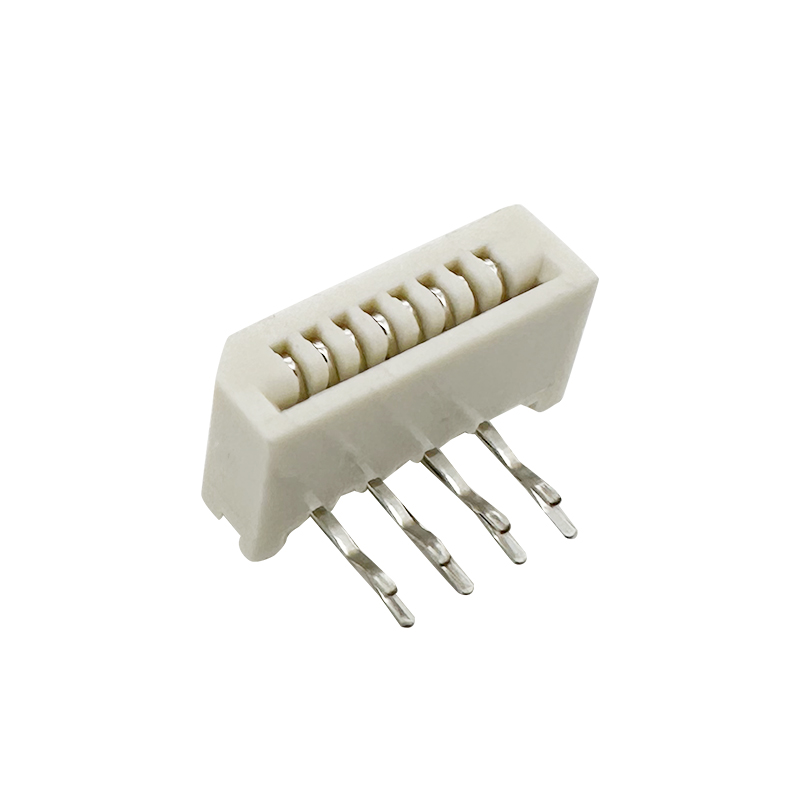

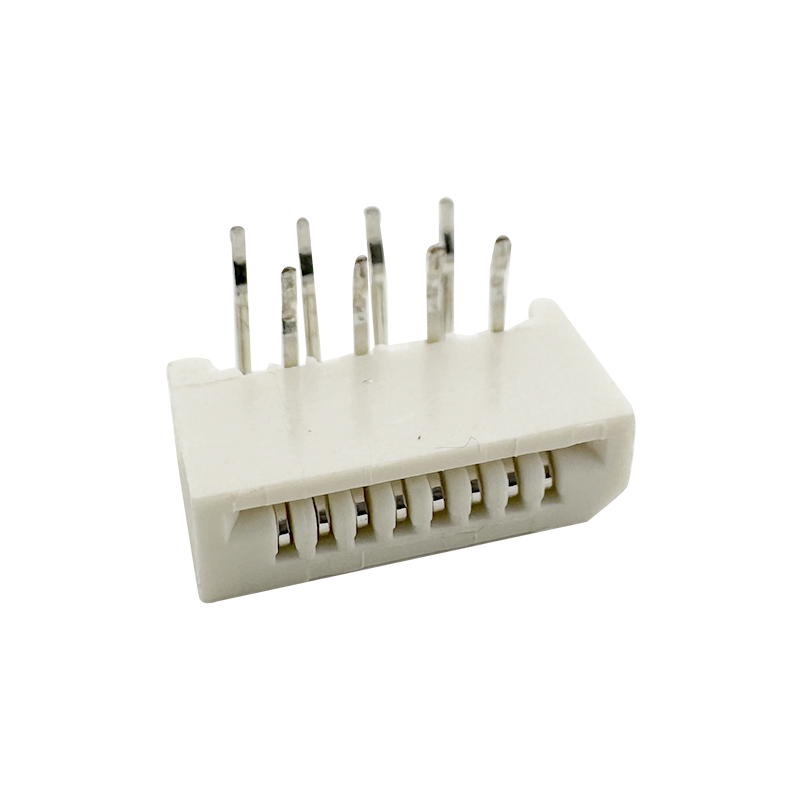

    1.0mm Single Contact NO-ZIF Type H5.5mm FFC FPC Connectors :RHTAY40

    Series Part No: RHTAY40
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    Features

    -Pitch: 1.0mm pitch, indicating the center-to-center distance between adjacent contacts.

    -Connector Type: FPC (Flexible Printed Circuit) / FFC (Flat Flexible Cable) connectors designed with a NO-ZIF (Non-Zero Insertion Force) type, meaning they do not utilize a Zero Insertion Force mechanism for connecting FPC/FFC.

    -Height: H5.5mm refers to the height profile of the connector, indicating the overall vertical dimension from the PCB surface to the top of the connector.

    -Mounting Style: These connectors are typically available in surface mount technology (SMT) configuration, allowing for direct placement on the surface of a PCB (Printed Circuit Board).


    Applications

    1. Industrial Equipment

    2. Telecommunications

    3. Consumer Electronics

    4. Handheld Devices and Wearables


    Specifications

    1.0mm Single Contact NO-ZIF Type H5.5mm FFC FPC Connectors

    Order Information

    RHTAY40-XX-S-P-T

    XX-No.of 04 ~ 30pin

    S-Straight Pin   R-Right Angle Pin   T-SMT Pin

    P-Positive needle   A-Anti-needle

    R-Reel Packing   T-Tube Packing

    Material:

    Housing: PBT UL94V-0

    Contact:  Phosphor Bronze

    Plating: Tin Plated Over Nickel

    Electrical Characteristics:

    Voltage rating: 50 VAC

    Current rating: 0.5 AMP

    Dielectric Withstandingf Voltage: 500 VAC R.M.S.

    Insulation resistance: 500m ohm Min

    Contact resistance: 30m ohm. max.

    Temperature range: -40℃ To +105℃


    Technical Documents

    Please contact us for more information.
