Features
-Connector Type:Comes with a connector compatible with WiFi devices, commonly SMA (SubMiniature version A) or RP-SMA (Reverse Polarity SMA), facilitating easy connection to WiFi routers, access points, or wireless modules.
-Polarization:Generally linear polarization (vertical or horizontal), aligned with the polarization of the WiFi router or access point for optimal signal transmission and reception.
-Impedance:Designed for 50 ohm impedance, which is standard for WiFi antennas and ensures efficient signal transfer.
-Material and Design:Constructed from durable materials suitable for indoor use, and some models may offer weatherproofing for outdoor applications. This ensures resilience to environmental factors and maintains reliable performance over time.
Applications
1.WiFi Routers and Access Points
2.Consumer Electronics
3.IoT (Internet of Things) Devices
4.Mobile and Portable Devices
Specifications
Frequency : 2400~2500MHz
Gain : 2dBi
Vswr : 1.5 Max.
Impedance : 50 Ω
Polarization : Vertical
Radiation : OMNIDIRECTIONAL
Max power : 50W
Shell material : PVC
Connector : SMA Pin Straight
Lightning protection: DC Grounding
Operating Temperature : -30°C to +70°C
Technical Documents
Please contact us for more information.
WIFI/WLAN antennas is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of WIFI/WLAN antennas. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

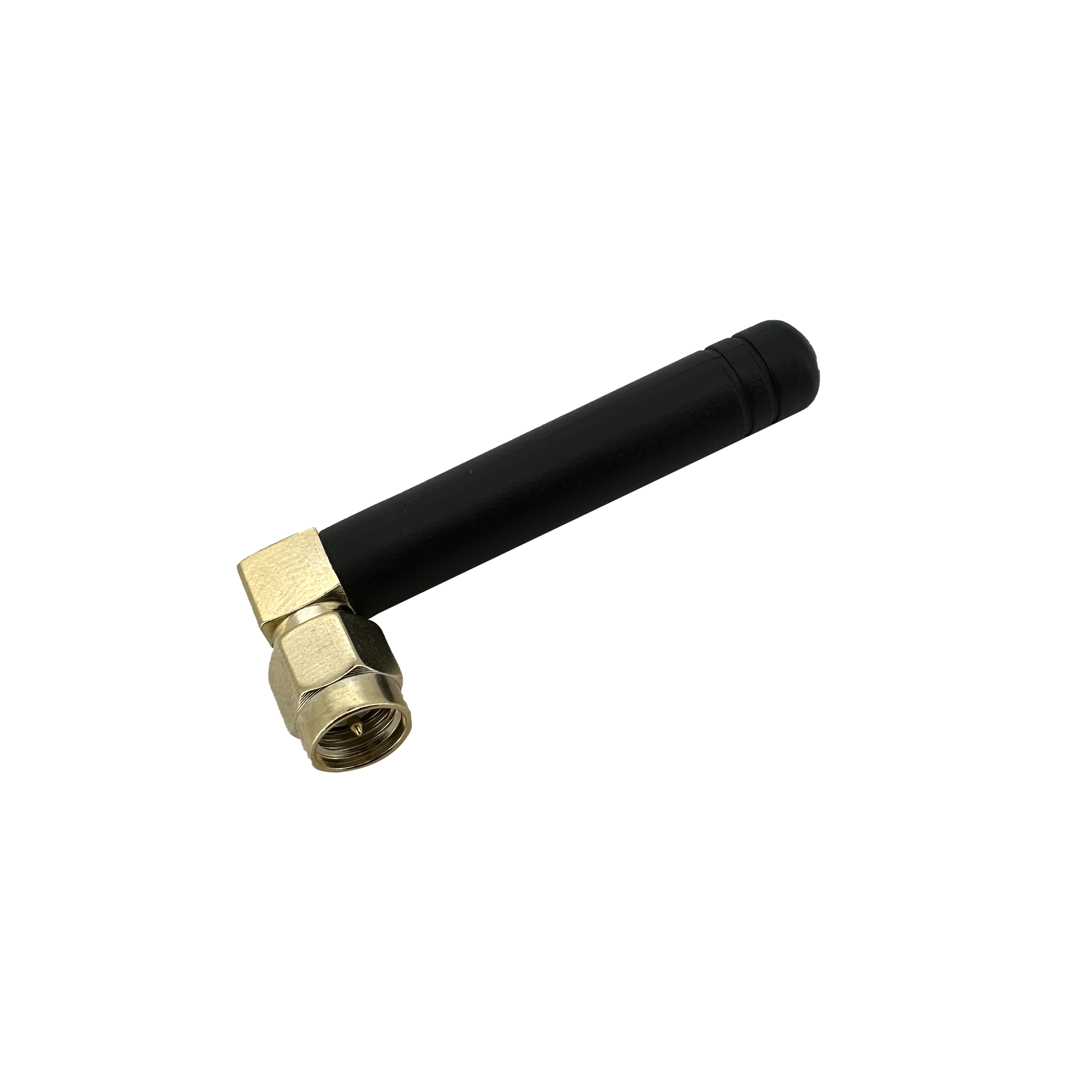

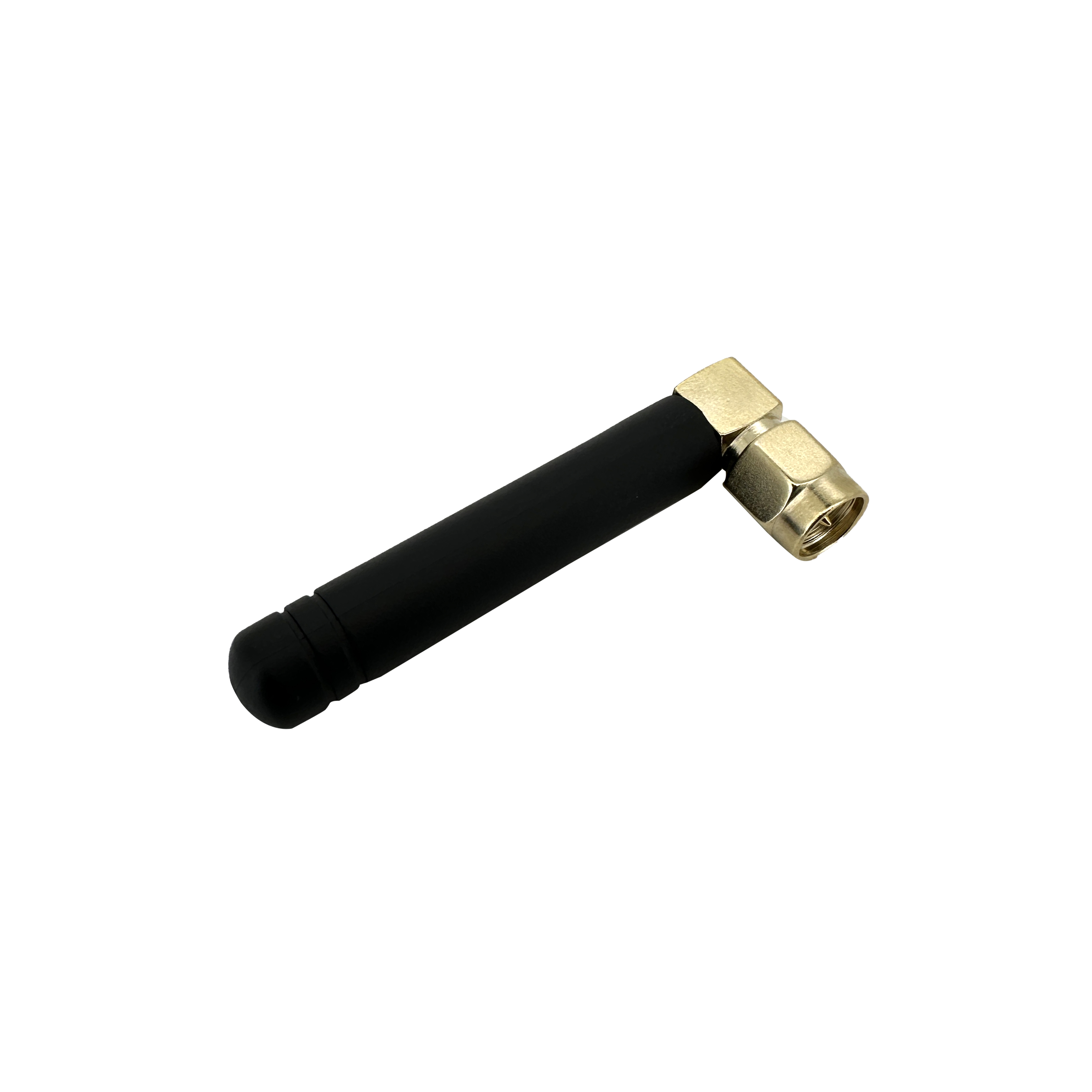

Wifi 2.4G Antenna 51mm :RHTAYIFI-2.4G-02-MR-51mm
