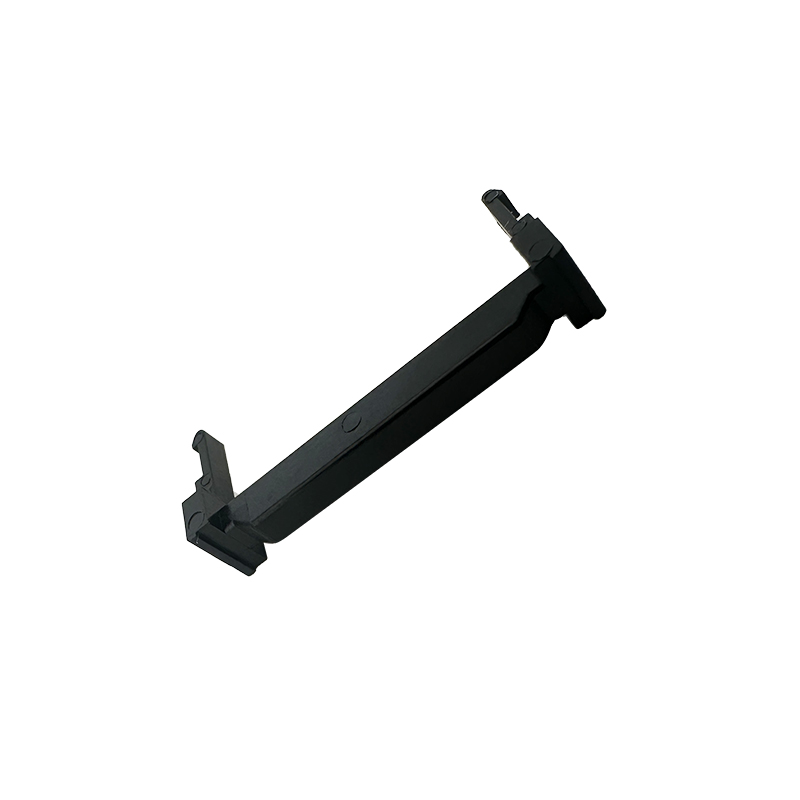

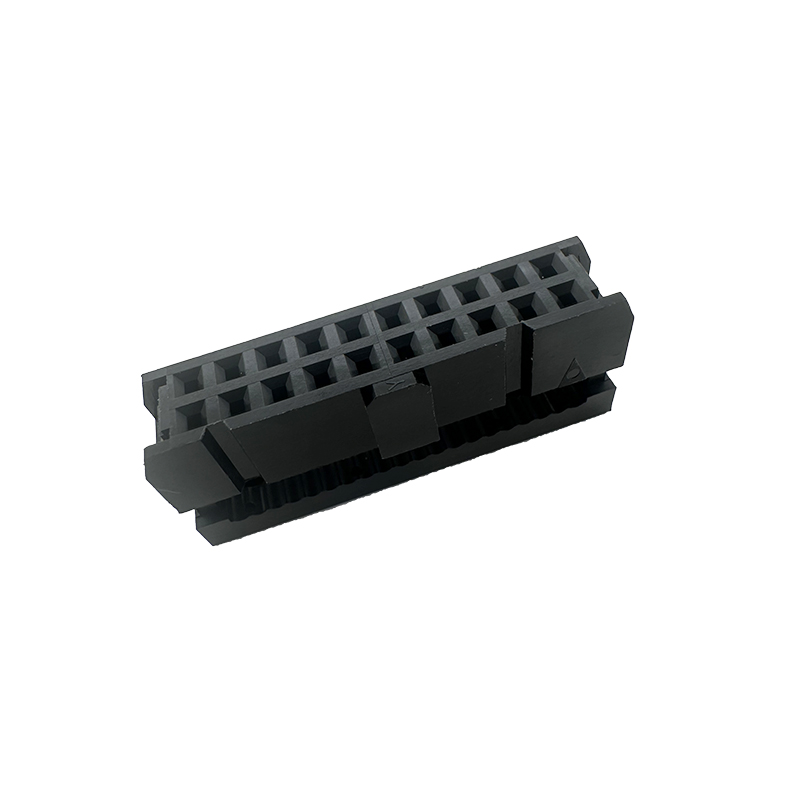

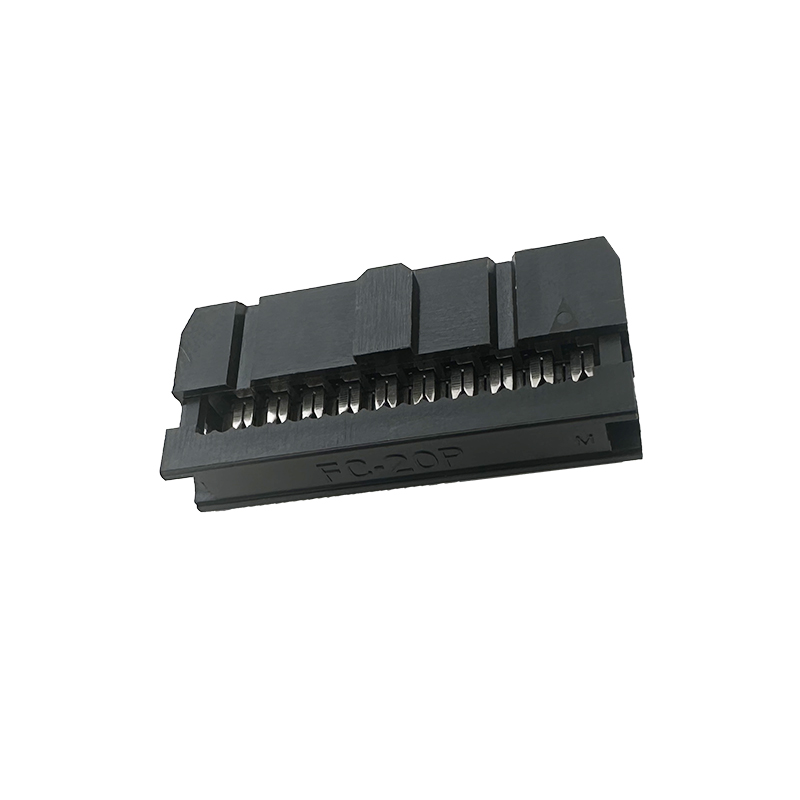

IDC connectors : RE-C-204P

Series Part No: RE-C-204P

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

MATERIAL&FINISH
Insulator:PBT Glass Fiber(UL94V-0)
Contact:Phosphorus bronze
Contact:Gold-Plated Over Nickel
Contact Material:Phosphorus Bronze T=0.30

SPECIFICATIONS
Current Rating:1A
Voltage Rating:250V
Contact Resistance:20mΩ Min
Insulator Resistance:1000MΩ
Operating Temperature: -45ºC~+105ºC
