Features
-Connector Type: Micro-Match Connector Female SMT with ear.
-Design: Compact and low-profile design suitable for surface-mounting directly onto PCBs, with additional mounting ears on each side for enhanced mechanical stability.
-Termination Type: Surface-Mount Technology (SMT), allowing for direct placement and soldering onto PCB pads without the need for through-holes.
-Pitch: Typically available in a pitch of 1.27 mm (0.05 inches), though other pitches may be available depending on the specific model.
Applications
1.Consumer Electronics
2.Networking Equipment
3.Automotive Electronics
4.Industrial Equipment
Specifications

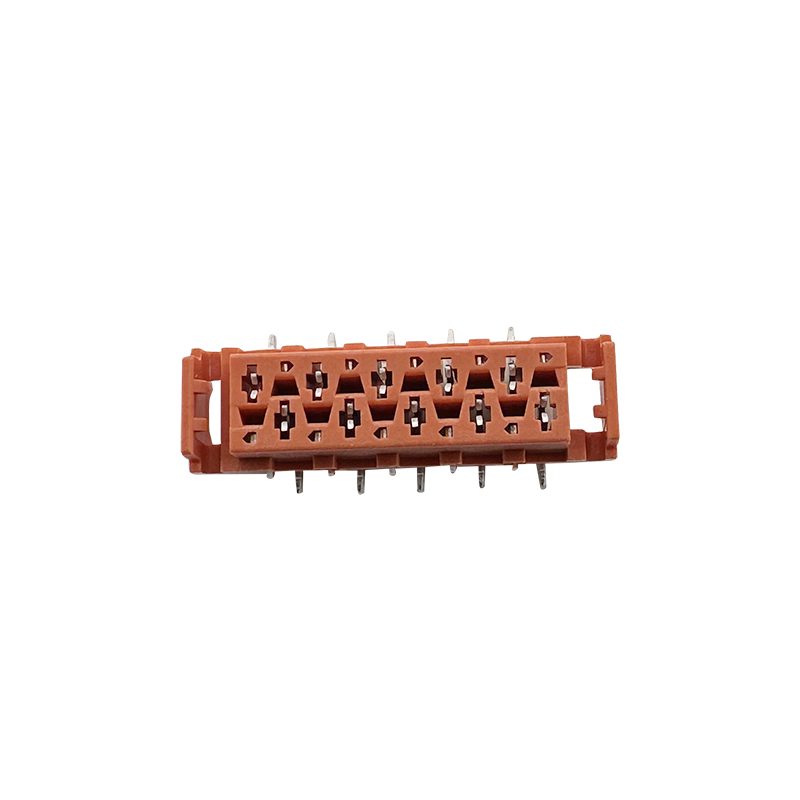

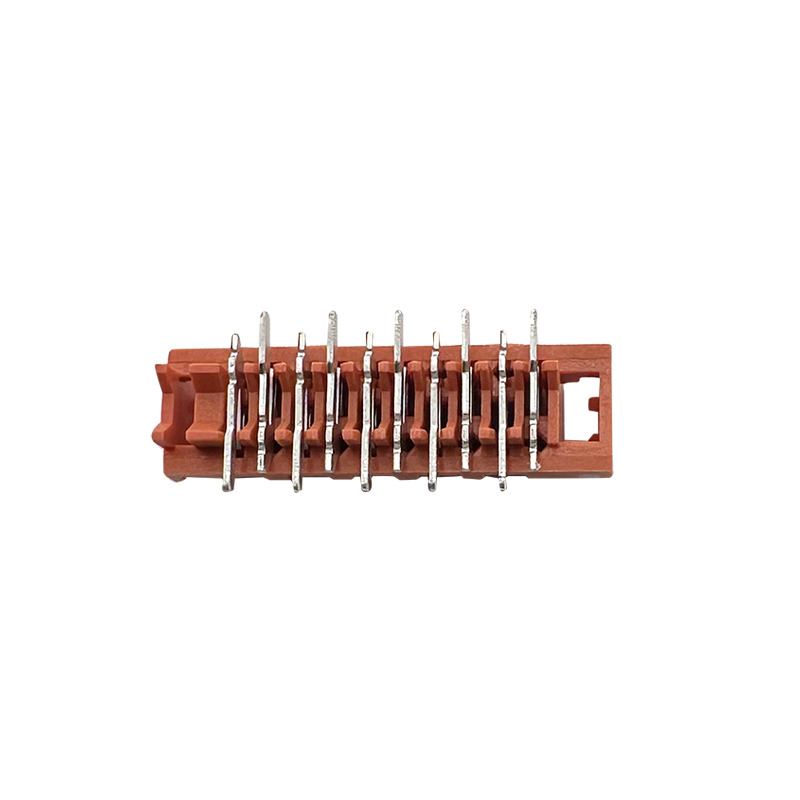

Micro Match Connector Female SMT With Ear
Order Information:
RHTAY04GE-XX-R-口-C-R
XX-No.of 04~26pin
Color: R=Red B=Black
Material:NONE=PA9T E=PA46
Packing: TC=Cap+Tube C-R=Cap+Reel
Material:
Housing: PA46/PA9T UL94V-0
Contacts: Phosphor bronze
Plating:Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 230V AC/DC
Withstand voltage:500V AC/Minute
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
Micro Match Connector Female SMT With Ear:RHTAY04GE
