Features
-Connector Type: Female headers have sockets designed to accept male pins or headers securely, facilitating easy connection and disconnection of components.
-Height: The height of 8.5mm refers to the total vertical distance from the bottom of the PCB to the top of the connector when mounted. This height allows for sufficient clearance between the PCB and any components or boards mounted above it, accommodating larger components or modules.
-Material: Typically constructed from durable materials such as plastic for the housing and metal (often tin-plated brass or phosphor bronze) for the contacts. This ensures mechanical strength and reliable electrical connections.
-Mounting Style: Designed for through-hole mounting, where the connector pins extend through holes in the PCB and are soldered in place. This provides a secure and permanent electrical connection suitable for various electronic applications.
Applications
1. PCB Interfacing:
2. Arduino and Raspberry Pi Projects:
3. Industrial Control Systems:
4. Communication Equipment:
Specifications

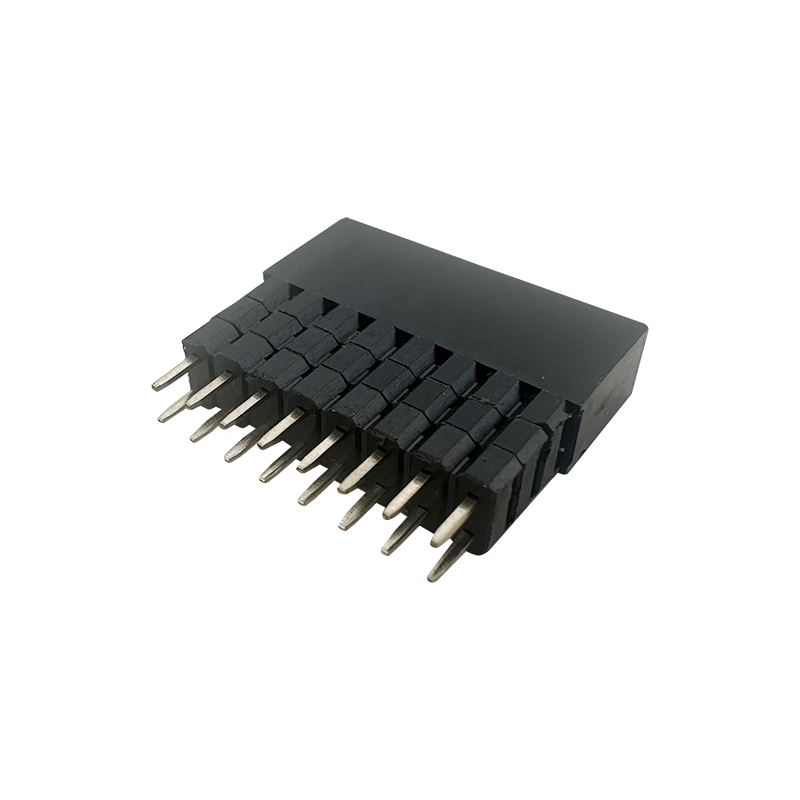

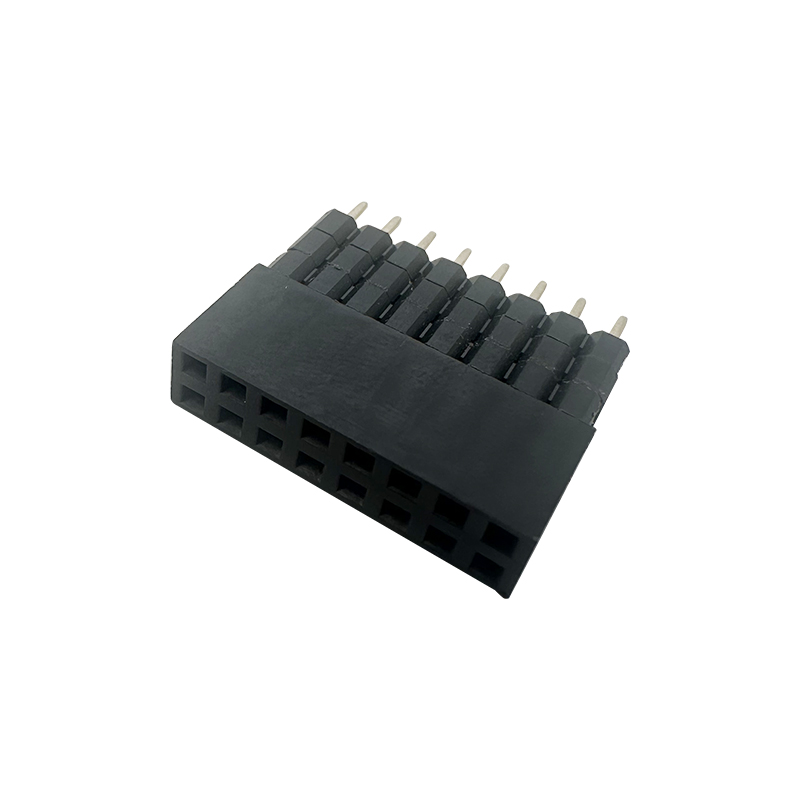

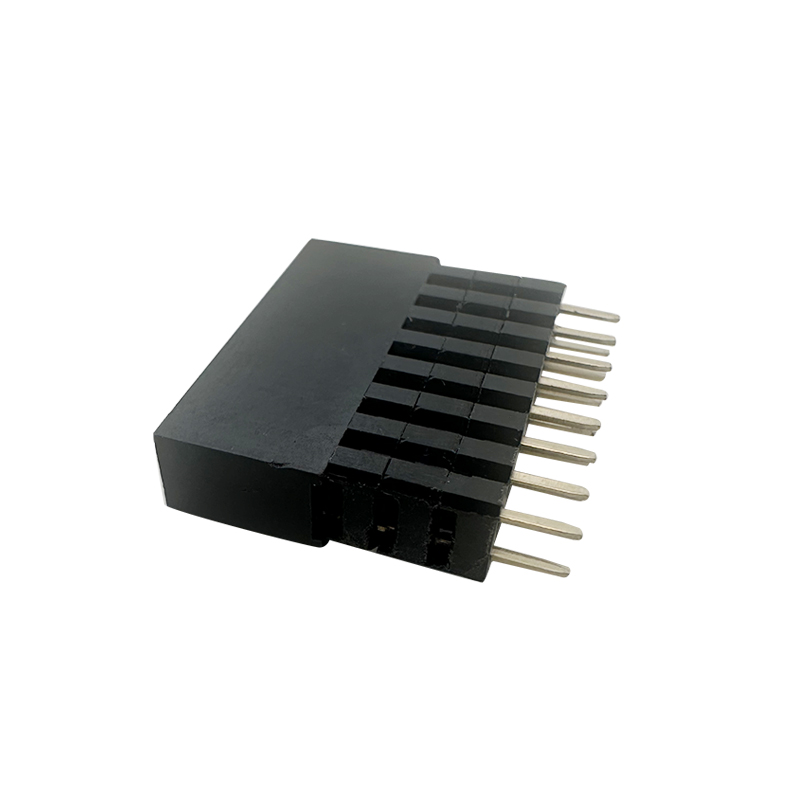

2.54mm Pitch Female Header Connector
Order Information
RHTAY08X-1-XX-S-L1xL2-A
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
2.54mm Pitch Female Header Connector Height 8.5mm :RHTAY08X
