Features
-Female Socket Connector: Designed to mate securely with 2.0mm pitch male headers.
-Elevated Design: The 7.2mm height allows for better clearance and stacking options on PCBs.
-Contact Material: Phosphor bronze or brass, ensuring excellent conductivity and mechanical strength.
-Plating Options: Gold or tin plating on contacts for improved corrosion resistance and electrical performance.
Applications
1. Consumer Electronics
2. Industrial & Automation Equipment
3. Communication & Networking Equipment
4. Automotive Electronics
Specifications

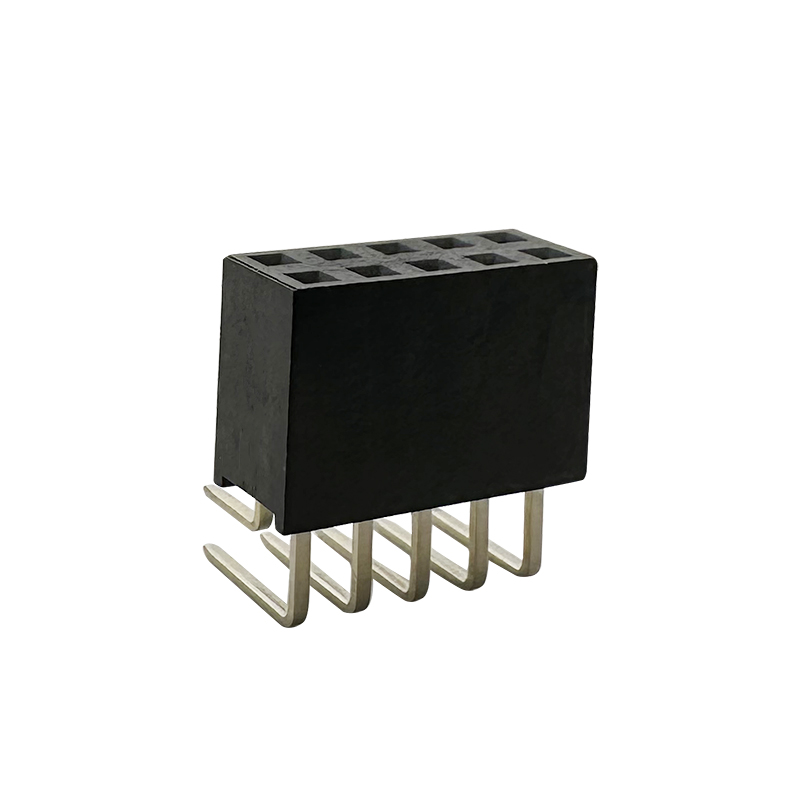

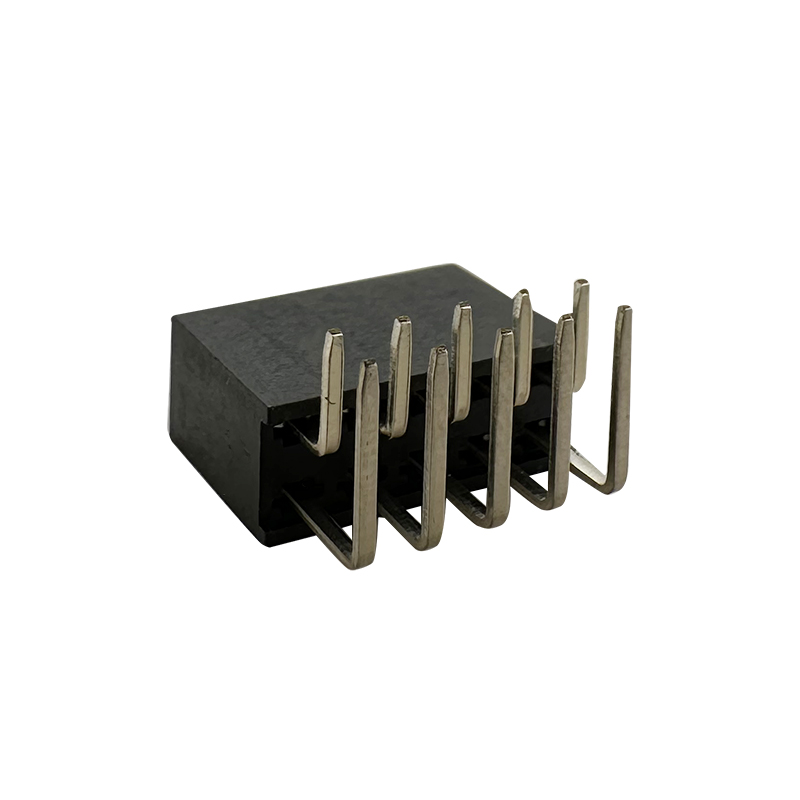

2.0mm Pitch Female Header Connector Height 7.2mm
Order Information
RHTAY08B-7.2-2-XX-S-B
Height: 7.2mm
2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin R-Right Angle Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
2.0mm Pitch Female Header Connector Height 7.2mm:RHTAY08B-7.2
