Features
- Termination Style: Designed for through-hole soldering on a PCB. This method involves inserting the pins through holes in the PCB and soldering them to the copper pads on the opposite side of the board, providing a strong and stable connection.
- Housing Material: The housing is usually made from durable thermoplastics such as PBT (Polybutylene Terephthalate) or Nylon, offering mechanical strength and resistance to heat, chemicals, and environmental factors.
- Height and Length: The dimensions of the connector, including pin height and overall length, are chosen based on specific application requirements, ensuring adequate clearance and stability when mounted on the PCB.
- Current Rating and Voltage: The connector is rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications. These ratings are critical for safe and reliable operation.
Applications
1.Networking Equipment
2. Industrial Automation
3. Test and Measurement Instruments
4. Telecommunications Equipment
Specifications
2.54mm Pitch 3.5mm Height Female Header Connector
Order Information
RHTAY08-3.5-1-XX-S
Height: 3.5mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:
Housing: 30% Glass filled PBT / PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 3 AMP
Insulator Resistance: 1000M Ohm min. at DC 1000V
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.

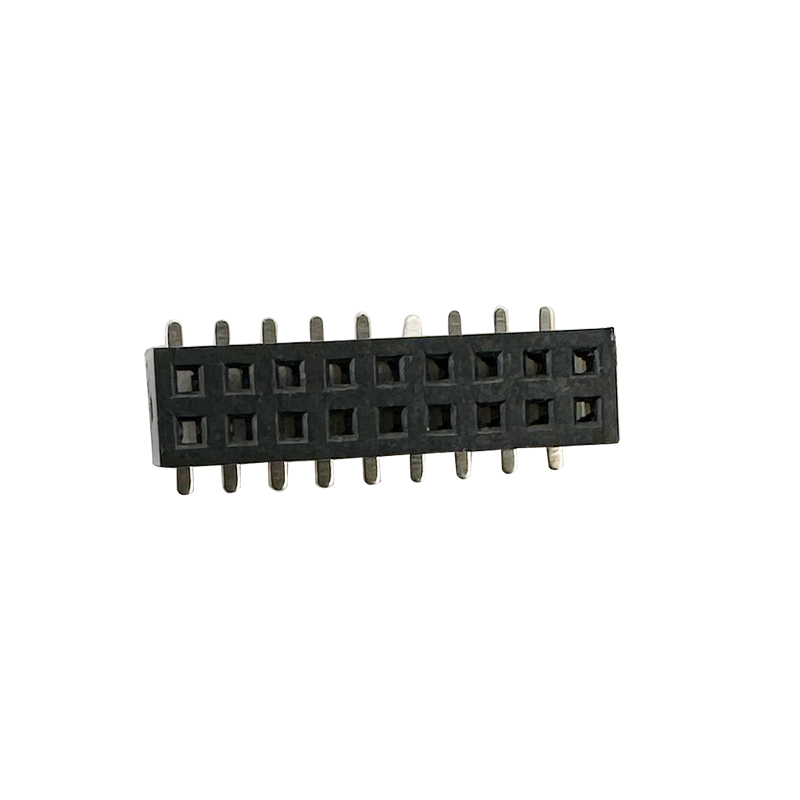

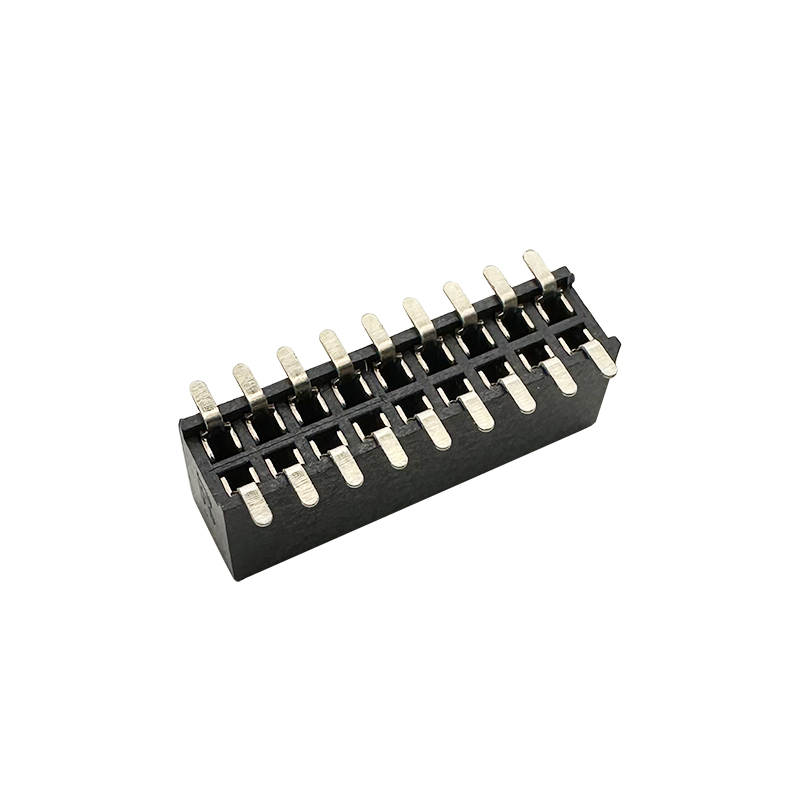

2.54mm Pitch Female Header Connector Height 3.5mm:RHTAY08-3.5
