Features
-Socket Connector: Designed to receive male header pins securely.
-Current Rating: 1A – 3A per pin (varies by material and plating).
- Contact Resistance: ≤20mΩ, ensuring minimal power loss and signal integrity.
-Contact Material: Phosphor bronze or brass, offering excellent conductivity and mechanical strength.
Applications
1. Industrial & Automation Equipment
2. Communication & Networking Equipment
3. Automotive Electronics
4. Aerospace & Defense Applications
Specifications

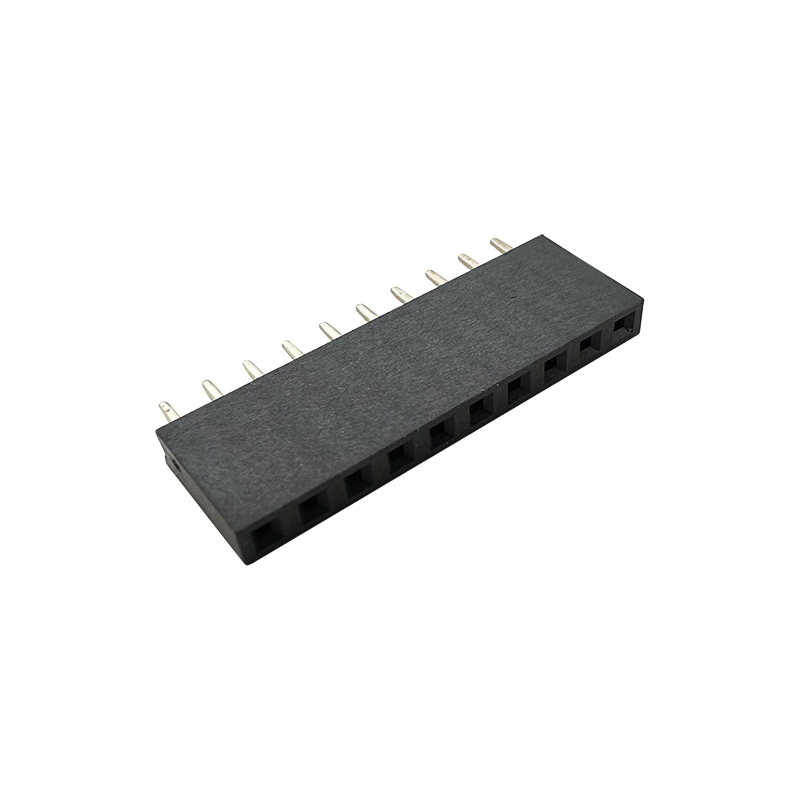

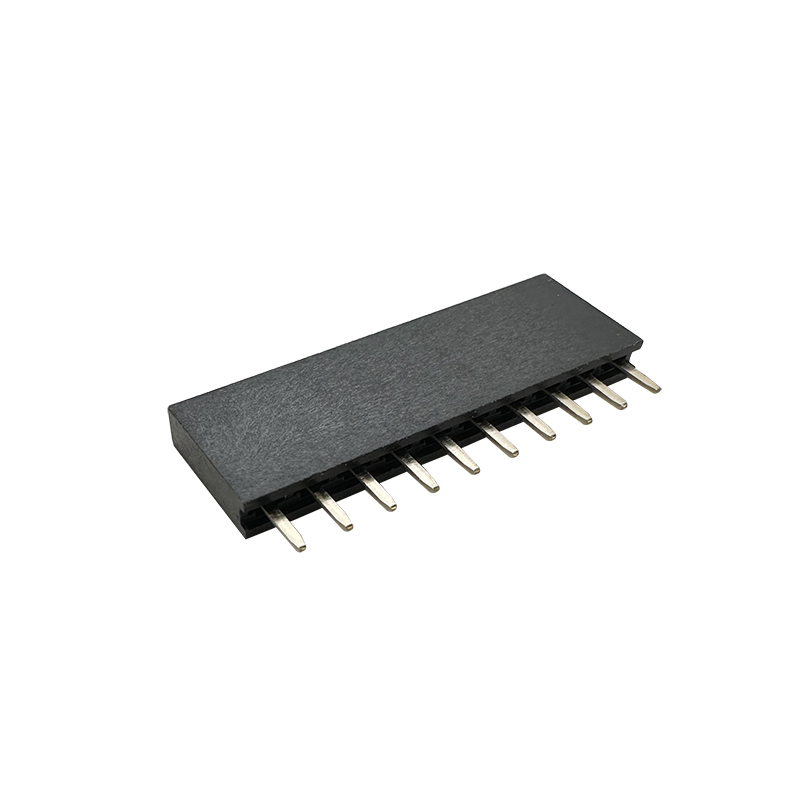

2.0mm Pitch Female Header Connector Height 6.35mm
Order Information
RHTAY08B-6.35-6.35-2-XX-S-B
Height: 6.35mm
1-Single layer 2-Double layer 3-Three layer 4-Four layer
XX-Total pin number (No.of 2~160pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
2.0mm Pitch Female Header Connector Height 6.35mm :RHTAY08B-6.35
