Features
-Socket Connector: Designed to receive male header pins for detachable, secure electrical connections.
-Multiple Pin Configurations: Available in various pin counts depending on application requirements.
-Housing Material: Made of high-temperature-resistant plastic such as PA6T, PBT, or LCP for durability and wear resistance.
-Secure Fit: Designed for a snug fit with male headers, preventing accidental disconnections.
Applications
1.Consumer Electronics
2.Communication & Networking Equipment
3. Automotive Electronics
4.Medical Devices
Specifications

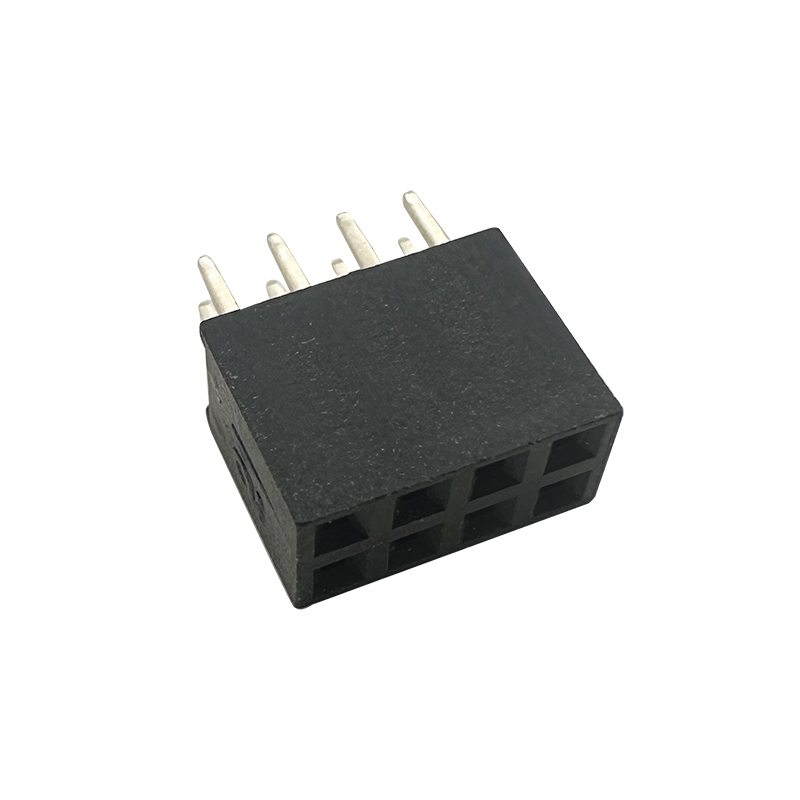

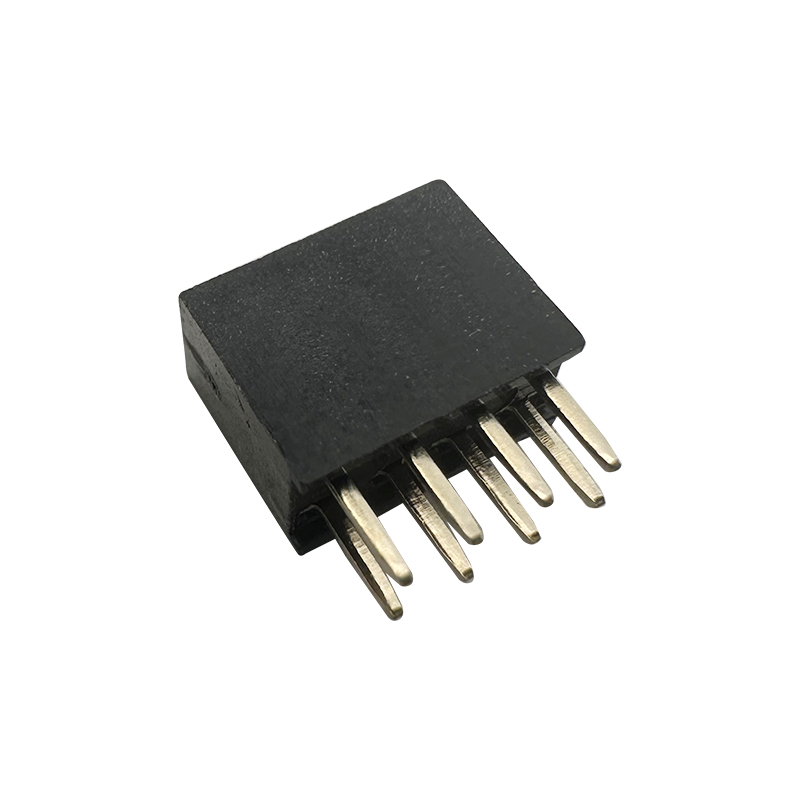

2.0mm Pitch Female Header Connector Height 2.8mm
Order Information
RHTAY08B-2.8-1-XX-S-B
Height: 2.8mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
2.0mm Pitch Female Header Connector Height 2.8mm:RHTAY08B-2.8
