Features
-Height: 2.0mm height profile, indicating the overall vertical dimension from the PCB surface to the top of the connector.
- Number of Contacts: Available with various numbers of contacts (pins) depending on the specific model and application requirements.
-Mounting Style: Typically available in through-hole mount (THT) configuration, where the connector is inserted into plated holes on the PCB and soldered in place.
-Materials: Generally made from materials like phosphor bronze for the contacts and plastic (often glass-filled nylon) for the housing, providing good electrical conductivity and mechanical strength.
Applications
1.Development and Prototyping
2. Consumer Electronics
3. Computing Devices
4.Telecommunications
Specifications

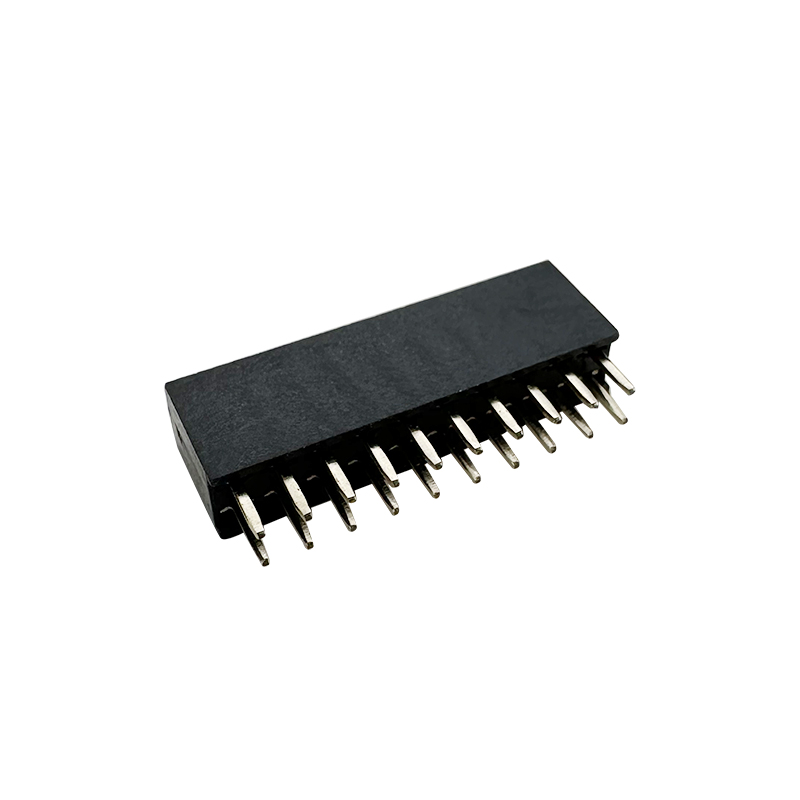

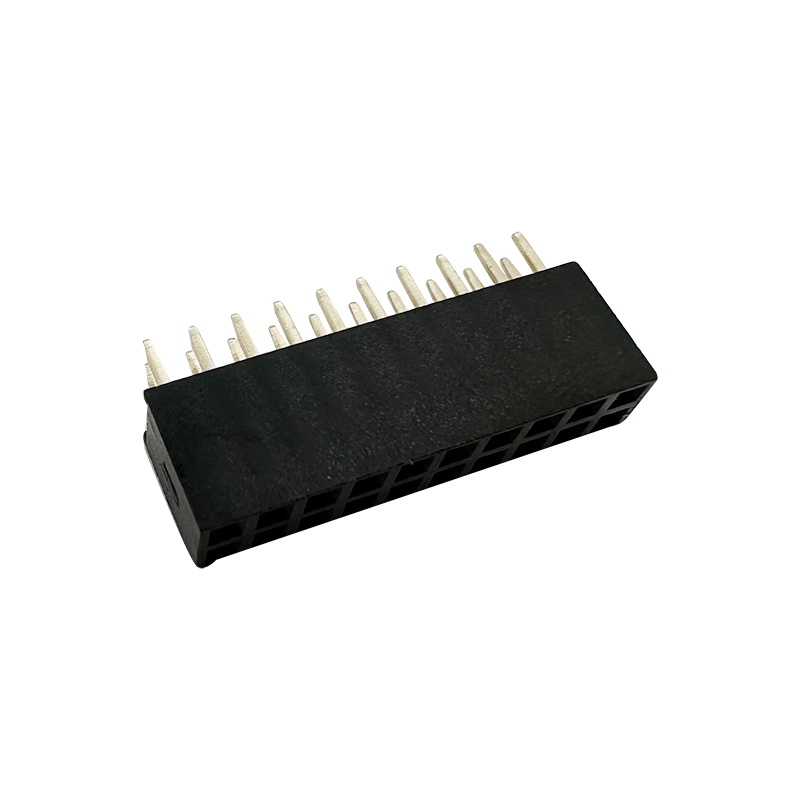

1.00mm Pitch Female Header Connector Height 2.0mm
Order Information
RHTAY08F-2.0-2-XX-S-B
Height: 2.0mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pin)
S-Straight Pin T-SMT Pin
Material:B=PA6T C=LCP
Material:
Housing: PA6T or LCP UL94V-0
Contacts: Phosphor Bronze
Plating: Au or Sn over 50u" Ni
Electrical Characteristics:
Current Rating: 0.75 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 30mΩ Max
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
1.0mm Pitch Female Header Connector Height 2.0mm :RHTAY08F-2.0
