Features
-Pitch: 2.54mm (0.1 inches), which defines the spacing between each pin center. This standard pitch ensures compatibility with a wide range of PCB designs and components designed for 0.1-inch grid spacing.
-Connector Type: Mini jumper connectors are designed for shorting two adjacent pins or contacts on a PCB or header. They consist of a housing with two or more shorting bars or shunts that can be easily inserted or removed to create or break electrical connections.
-Number of Contacts: Available in configurations with multiple contacts (usually 2 or 3), allowing for different configurations of shorting connections.
-Housing Material: Typically made from durable thermoplastics that provide mechanical strength and insulation between adjacent contacts. The housing is designed to withstand repeated insertion and removal of shorting jumpers.
Applications
1.PCB Configuration and Prototyping
2.Embedded Systems and Development Boards
3.Industrial Control and Automation
4.Networking and Telecommunications
Specifications
2.54mm Pitch Mini Jumper Connector
ORDER INFORMATION:
RHTAY03A -C - B - 6.5
(1) (2) (3) (4)
(1)Pitch: 203A-pitch 2.54mm
(2)Housing Type O-Open C-Close
(3)Color: B- Black R-Red L-Blue G-Green
(4)Height-Open Type:4.5mm / 6.0mm / 8.0mm / 13.5mm Close Type:6.5mm / 8.5mm
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Plating: Selective gold plated 3u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm¸min. at DC 500V
Contact Resistance: 20m Ohm¸ max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
Technical Documents
Please contact us for more information.

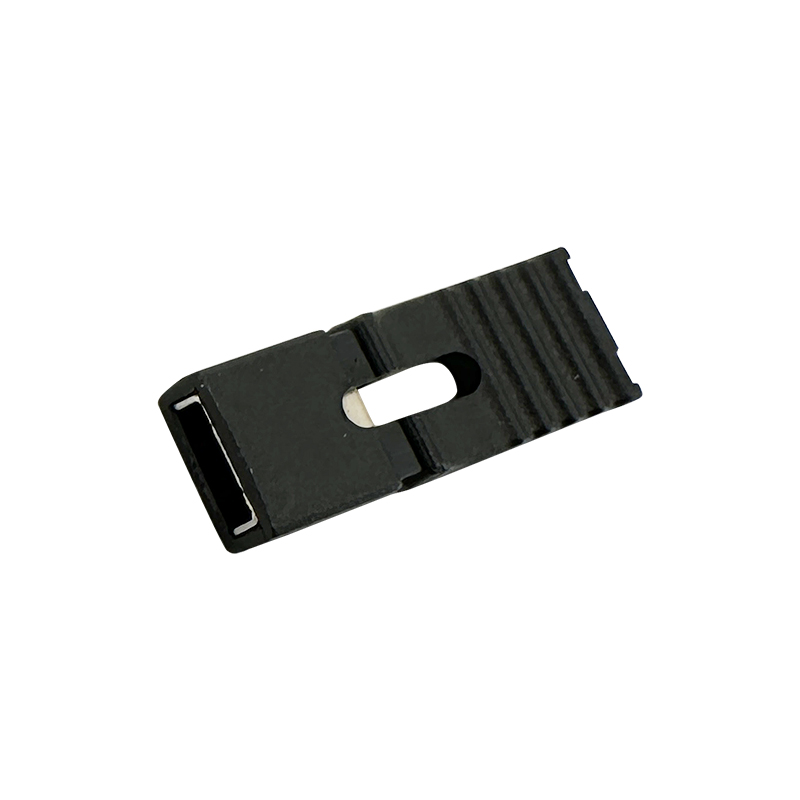

2.54mm Pitch Mini Jumper Connector :RHTAY03A
