Features
-Current Rating and Voltage: The connector is rated for specific current carrying capacities and voltage levels, ensuring compatibility with the electrical requirements of various applications.
-Keying and Polarization: Some versions of the mini jumper connector feature keying or polarization features to ensure proper alignment during mating and prevent incorrect connections. This helps maintain electrical integrity and prevents damage to components.
-Environmental Considerations: Designed to operate reliably in various environmental conditions, including temperature fluctuations, vibration, and mechanical stress. This makes the mini jumper connector suitable for use in applications where durability and reliability are critical.
-Locking Mechanism: Depending on the specific design, the mini jumper connector may include a locking mechanism such as a latch or friction lock to secure the connection between mating halves, preventing accidental disconnection.
Applications
1.Automotive Electronics
2.Medical Devices and Equipment
3.LED Lighting Systems
4.DIY Electronics and Prototyping
Specifications
2.0mm Pitch Mini Jumper Connector
ORDER INFORMATION:
RHTAY03B - C - B - 5.0
(1) (2) (3) (4)
(1)Pitch: 203B-pitch 2.0mm
(2)Housing Type O-Open C-Close
(3)Color: B- Black R-Red L-Blue G-Green
(4)Height- Open Type:3.5mm/4.5mm/9.5mm Close Type:5.0mm
Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Plating: Selective gold plated 3u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm¸min. at DC 500V
Contact Resistance: 20m Ohm¸ max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
Technical Documents
Please contact us for more information.

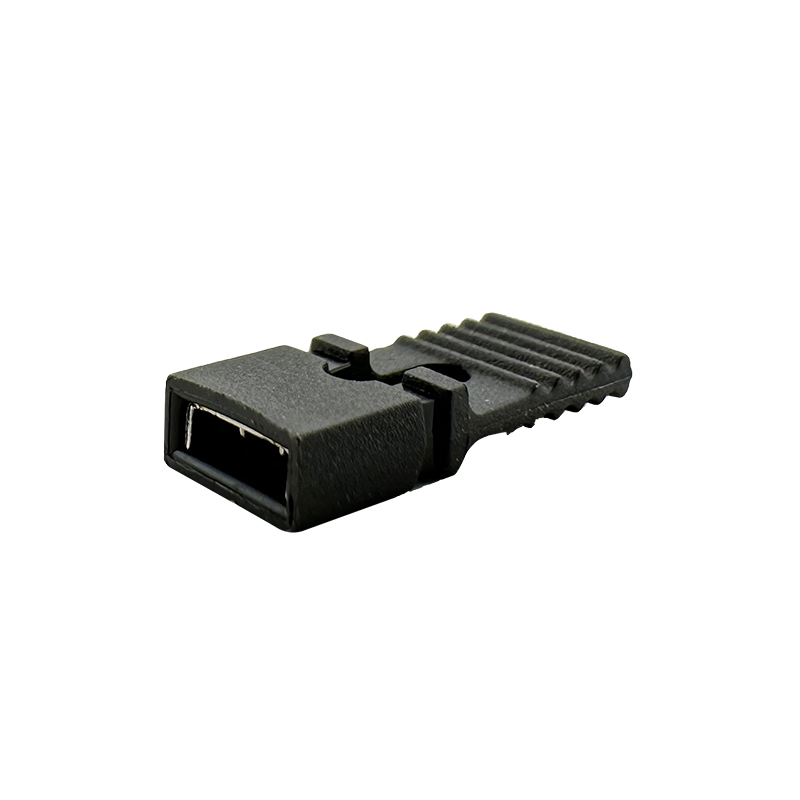

2.0mm Pitch Mini Jumper Connector :RHTAY03B
