Features
-SMD Compatibility: Designed for surface mount assembly directly onto PCBs, eliminating the need for through-holes. This reduces assembly time and facilitates automated soldering processes.
-Materials: Contacts are typically made from phosphor bronze for good electrical conductivity and mechanical strength.
-Electrical Performance: Capable of handling moderate currents depending on the specific model and configuration, ensuring safe operation under typical electronic loads.
-Keying: Designed with polarization features such as keying tabs or slots to prevent incorrect insertion and ensure proper orientation of the connector. This helps prevent damage to the connector and the circuit.
Applications
1.Industrial IoT (IIoT) Devices:
2.LED Lighting Systems:
3.Security and Surveillance Systems:
4.Aerospace and Defense
Specifications

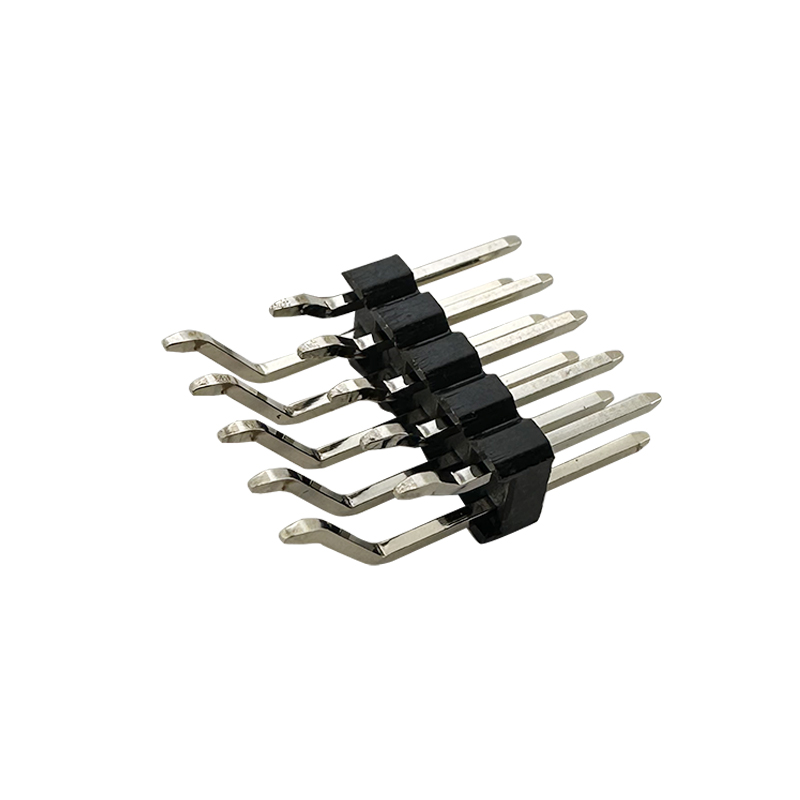

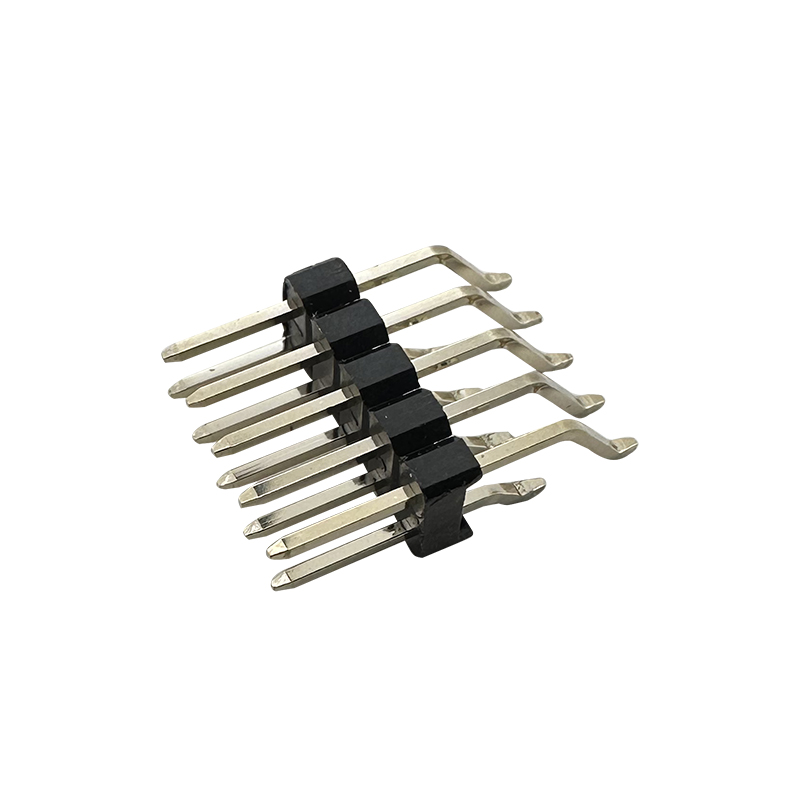

2.0mm Pitch Pin Header Connector SMD
Order Information
RHTAY07BA-2.00-1-XX-PA*PC*PB-G0-W-R
Plastics Height:1.50mm、2.00mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
SIZE:PA*PC*PB
Plating:G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
N=W/O post W=with post
Packing: 0=PE Bag A=Tray T=Tube P=Tube+Cap R=Reel+Cap
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
2.00mm Pitch Pin Header Connector SMD :RHTAY07BA
