Features
-Materials: Typically made from materials like phosphor bronze for the pins and plastic for the housing, ensuring good electrical conductivity and mechanical strength.
-Plating: Pins are often gold-plated or tin-plated to prevent corrosion, improve conductivity, and ensure long-term reliability.
-Polarization: Some models may feature polarization keys or asymmetrical shapes to prevent incorrect insertion.
-Durability: Designed to withstand multiple insertion and extraction cycles without compromising electrical performance.
Applications
1. Development Boards and Prototyping
2. Industrial Automation
3. Computing Devices
4. Telecommunications
Specifications
1.0mm Pitch Male Pin Header Connector Plastic Height: 1.0mm , 1.5mm
Order Information
RHTAY07G-1.00-1-XX-S-L1*L2*L3-G0
Plastics Height:1.00、1.50mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~100pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 0.75 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 30m Ohm max.
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.

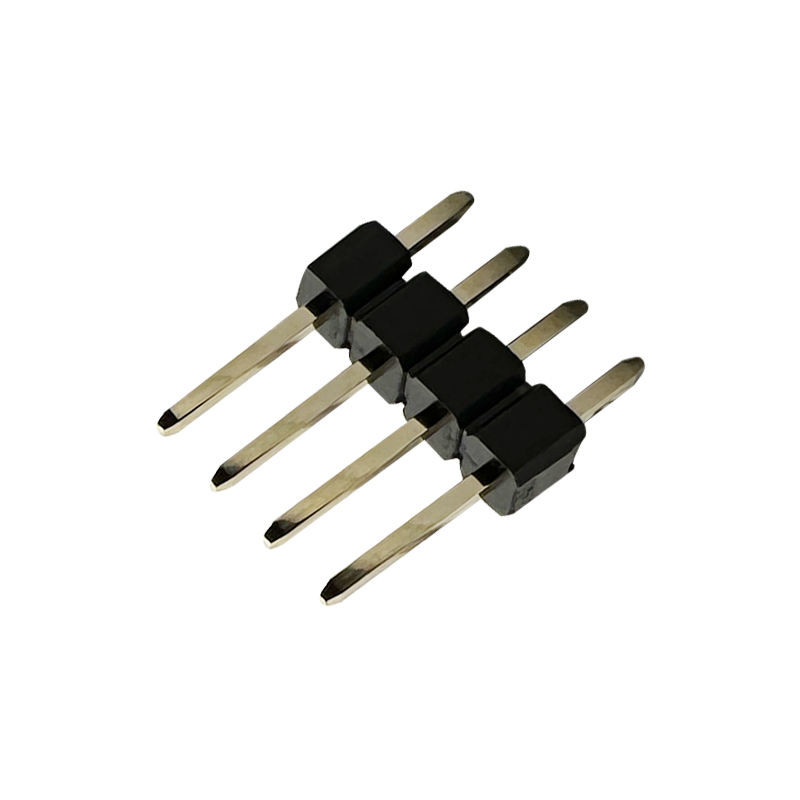

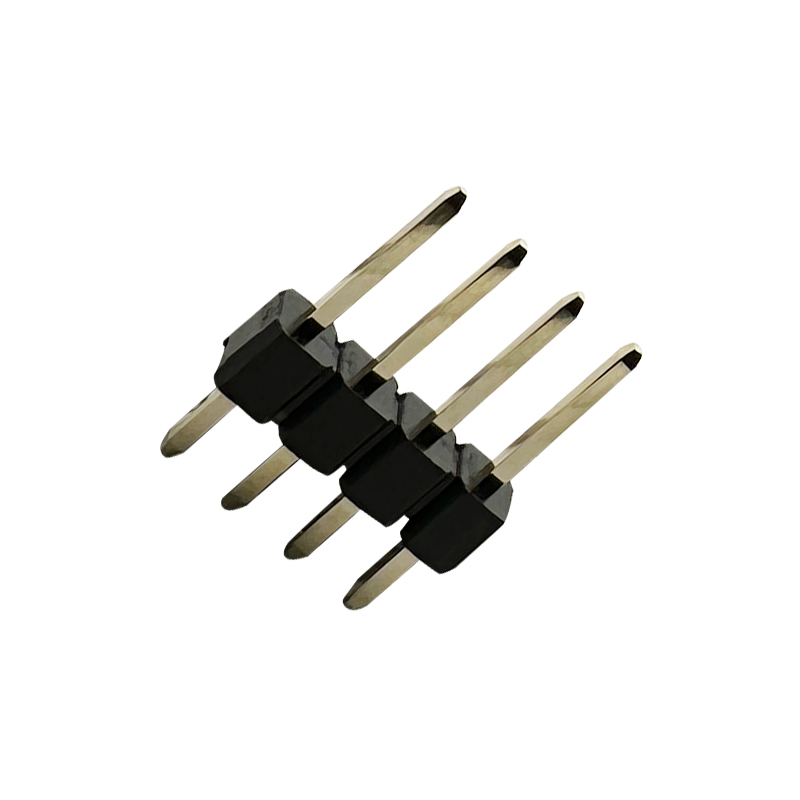

1.0mm Pitch Male Pin Header Connector:RHTAY07G
