MOLEX 430300001
Features
-Contact Configuration:The connectors are available in various configurations, including single-row and dual-row options. They accommodate different pin counts, allowing flexibility in design and application.
-Contact Material and Plating:Contacts are typically made from materials like phosphor bronze or brass. They are often plated with materials such as tin or gold to enhance conductivity, prevent corrosion, and improve durability over multiple mating cycles.
-Housing Material:Connector housings are generally made from thermoplastics that provide mechanical strength, insulation, and protection against environmental factors. The housing material ensures the durability and reliability of the connector in various operating conditions.
-Environmental Ratings:Depending on the specific variant, the connectors may have different environmental ratings such as temperature range and resistance to moisture, making them suitable for diverse applications including industrial and automotive environments.
Applications
1.Telecommunications
2.Medical Devices
3.LED Lighting Systems
4.Power Supplies and Battery Management
Specifications
Rated Voltage: 250V AC.DC
Rated Current: 5A
Contact Resistance: 10mΩ max
Insulation Resistance: 1000MΩ min
Withstand voltage: 1500V AC / MIN
Temperature range for usage: -40 º C ~ +105 º C
Material:
Housing: PA66 (PA66) UL94V-2 / UL94V-2
Contacts: Brass
Plating: Tin 50u "over 100u" nickel
Wire range: AWG # 30 ~ # 22
Technical Documents
Please contact us for more information.

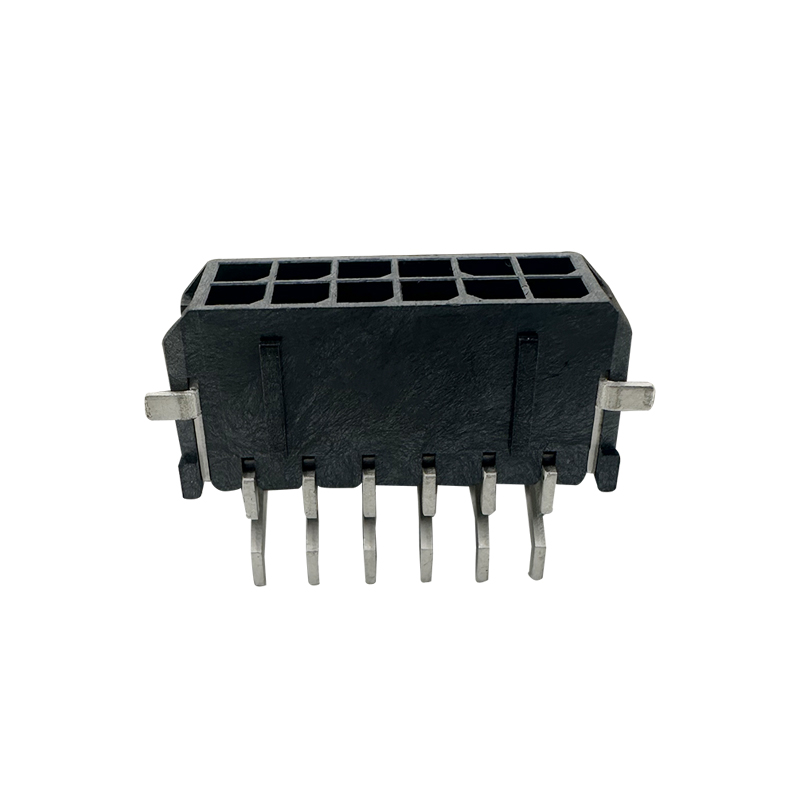

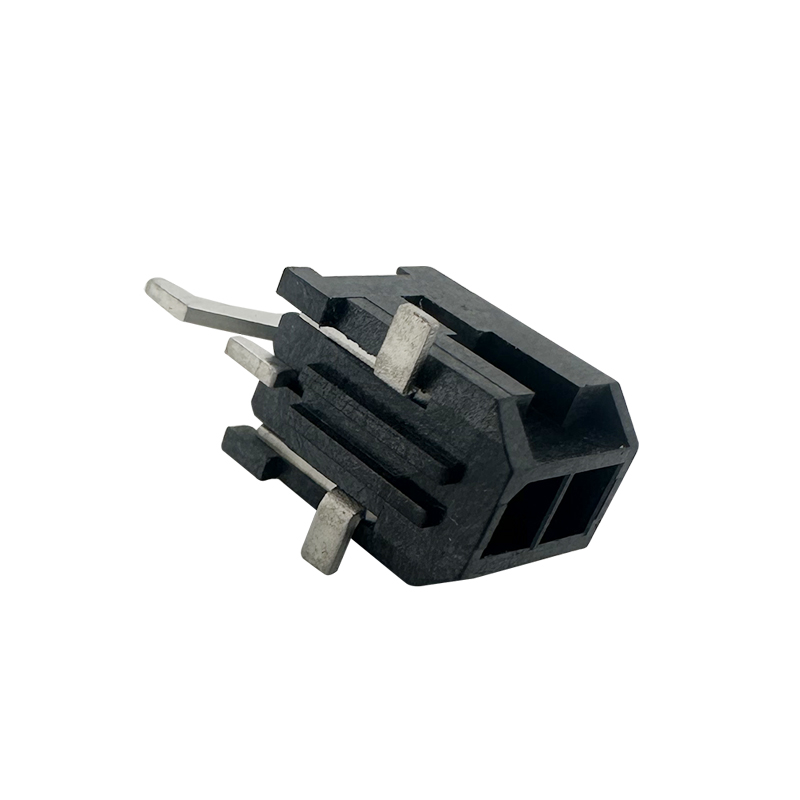

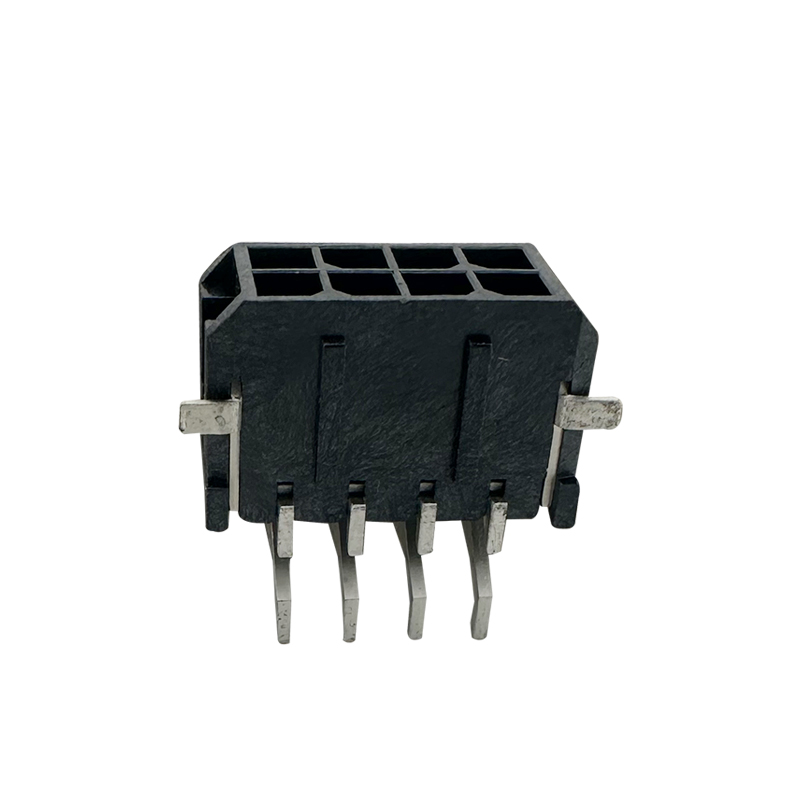

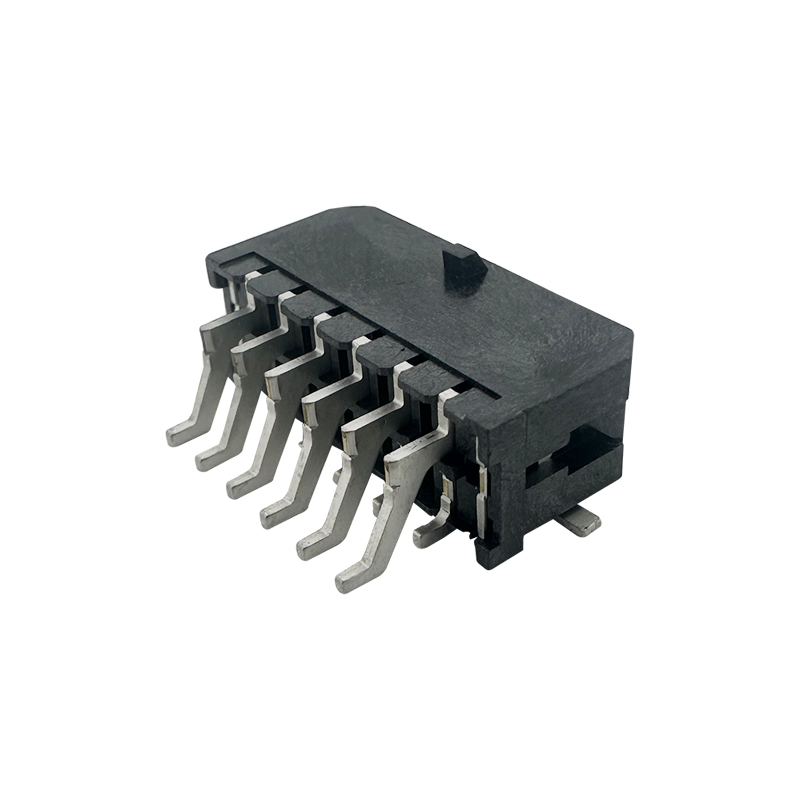

MOLEX 430300001 3.0mm Molex 43025 Wire To Board Connector :RHTAYM1-3.00
