MOLEX 53014-xx10
Features
-Operating Conditions: Designed to operate within a wide range of temperatures, typically between -25°C to +85°C or higher, ensuring reliable performance in various environmental conditions.
-Termination Options: Supports various wire termination methods including crimping and soldering. Some models may also support IDC (Insulation Displacement Contact) termination, offering flexibility in assembly processes.
-Certification: Complies with industry standards and certifications such as UL, RoHS, and REACH, ensuring reliability, safety, and environmental compatibility.
-Design: Compact and space-saving design suitable for applications where board space is limited but reliable connectivity is crucial.
Applications
1.Telecommunication Equipment:
2.Medical Devices:
3.IoT (Internet of Things) Devices:
4.LED Lighting Systems:
Specifications
2.00mm Molex 51004 type Wire to Board Connector
Order information:
RHTAYL3M-2.00-02-H
Pitch:2.00mm
pins:2~16
H=Hosing / T=Terminal / S=Straight male pin / R= Right angle male pin
Specifications
◆Material: Nylon UL 94V0 (Lead Free)
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:2A AC,DC
◆Voltage rating:125V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:800V AC/minute
◆Contact resistance:20mΩ/Max.
Technical Documents
Please contact us for more information.

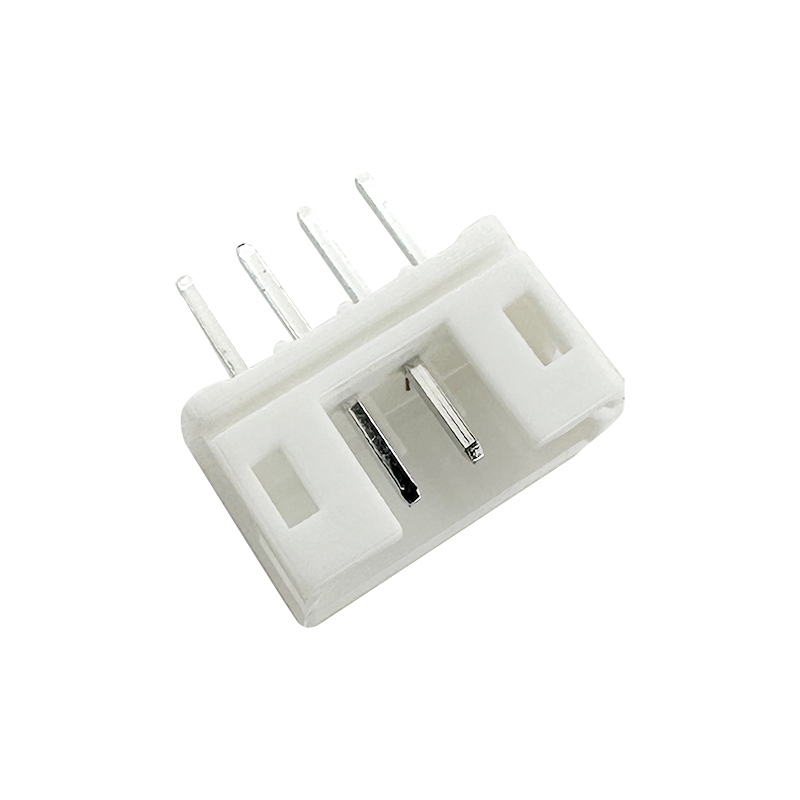

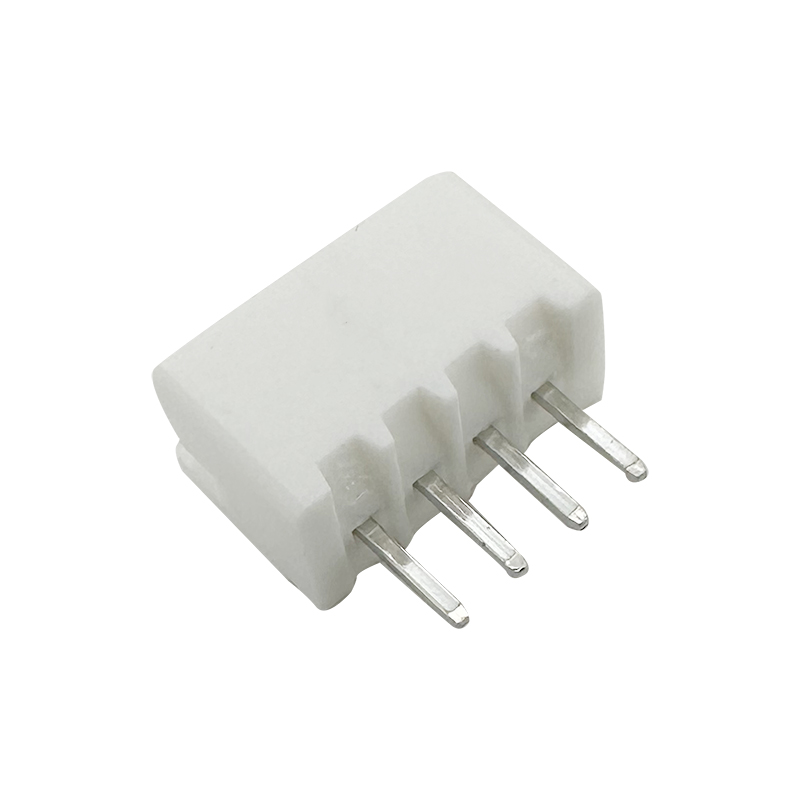

MOLEX 53014-xx10 2.00mm Wire to Board Connector:RHTAYL3M-2.00
