MOLEX 53398-71
Features
-Voltage Rating: Designed to withstand varying voltage levels commonly found in electronic circuits and devices.
-Termination: Options for various termination styles, including crimp, solder, or insulation displacement connection (IDC), allowing for flexibility in assembly methods based on application needs.
-Locking Mechanism: Many connectors in the PicoBlade series feature a positive locking mechanism that ensures secure mating and prevents accidental disconnection.
-Material and Durability: Constructed with materials that provide durability and reliability in various environmental conditions, ensuring long-term performance.
Applications
1.Consumer Electronics
2.Automotive Electronics
3.Industrial Equipment
4.Medical Devices
Specifications
Rated Voltage: 50/250V AC.DC
Rated Current: 0.7A 2A
Contact Resistance: 0.02 Ohm max
Insulation Resistance: 1000M Ohm min
Withstand voltage: 800V AC/MIN
Temperature range for usage : -25ºC~+85ºC
P.C board thickness : 0.8~1.6mm
Material:
Housing: PA66 (PA66) UL94V-2

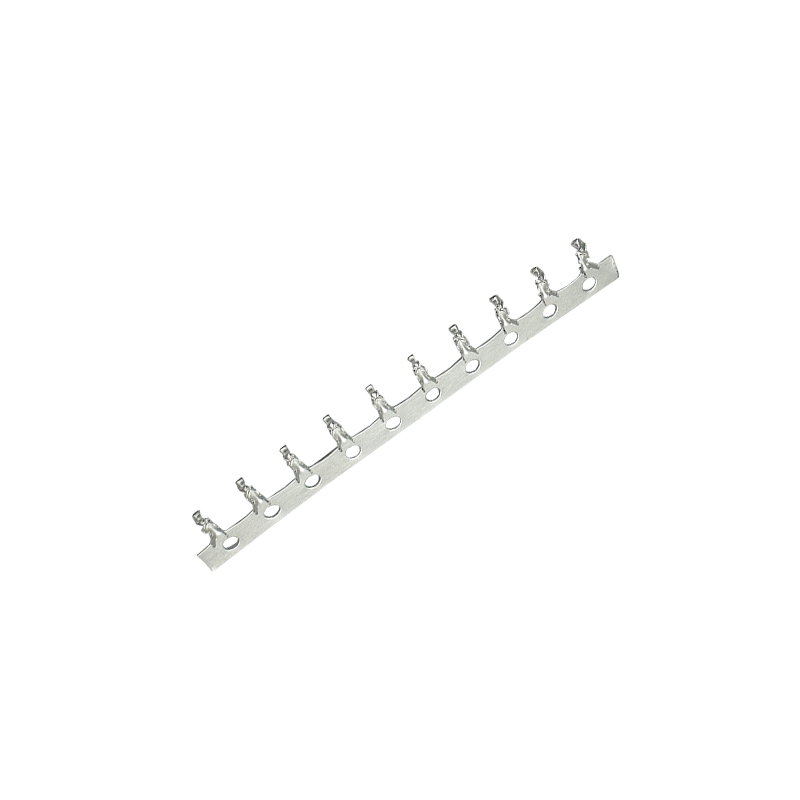

Contacts: Brass or Phosphor Bronze
Plating: Tin 50u" over 100u" nickel
Wire range : AWG#32~#22
Straight and Right Male pin Material: brass / tin-plated
Technical Documents
Please contact us for more information.

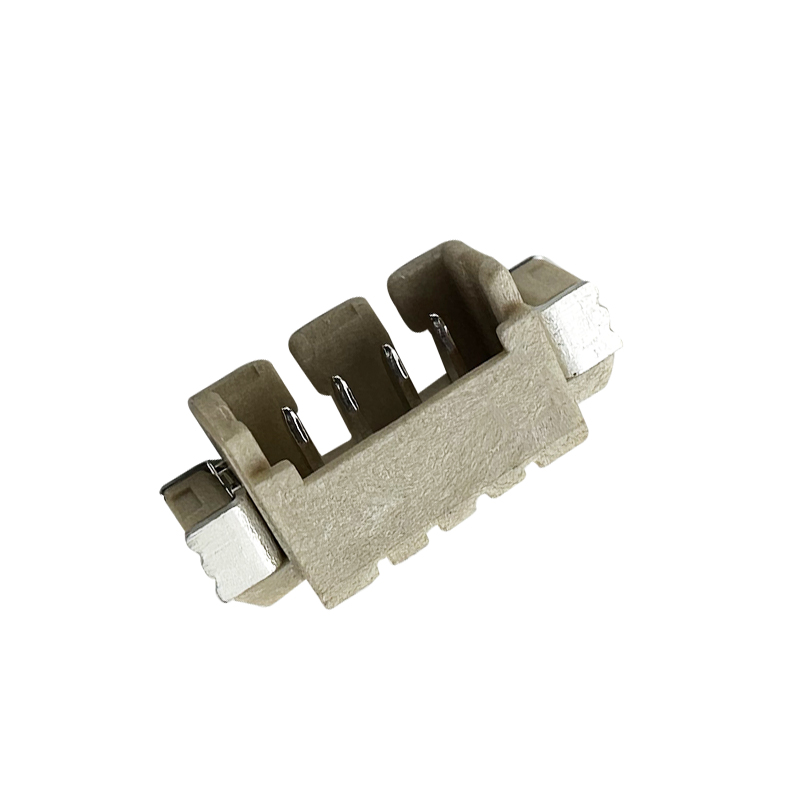

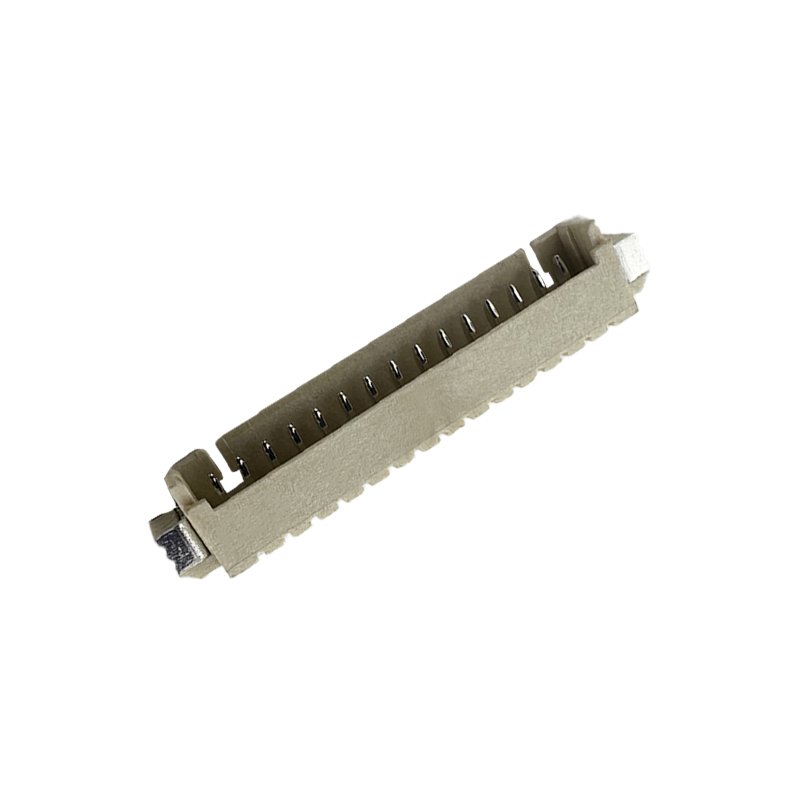

MOLEX 53398-71 1.25mm Molex 51021 51047 wire to board connector:RHTAYL1-1.25
