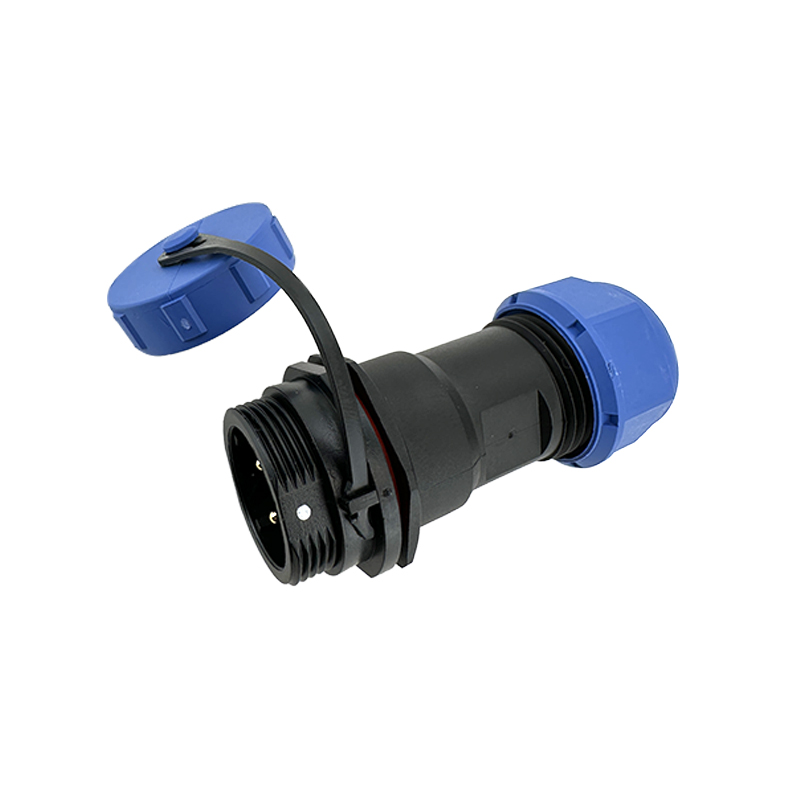

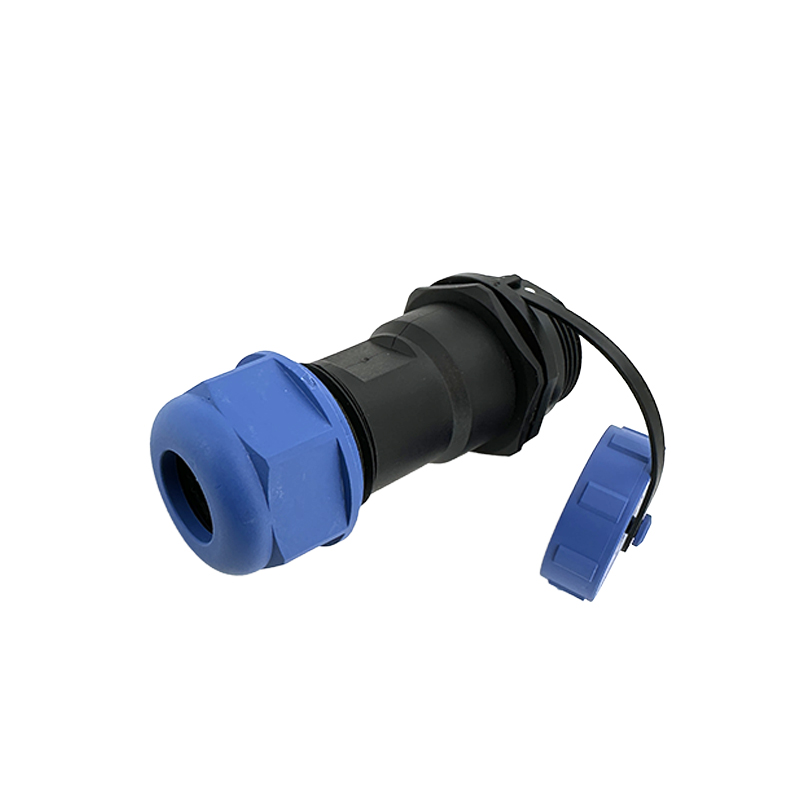

    SP1711/P Compatible IP68 W17 CONN, Male Plug for cable, Solder：RHTOY17B4

    Series Part No: RHTOY17B4
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    SP1711/P Compatible

    Features

    -IP68 Rating:

    Waterproof and Dustproof: The IP68 rating ensures complete protection against dust ingress and allows the connector to withstand continuous immersion in water beyond 1 meter depth. This makes it suitable for outdoor, marine, and industrial applications where environmental sealing is critical.

    -Design and Structure:

    Male Plug: Designed for soldering onto cable ends, providing a secure electrical connection.

    Rugged Construction: Typically constructed from durable materials such as metal (e.g., brass or stainless steel) or high-grade plastics, offering resistance to impact and environmental wear.

    Threaded Coupling: Often includes a threaded coupling mechanism that ensures a tight and secure fit, preventing accidental disconnection and maintaining waterproof integrity.

    -Electrical Characteristics:

    Solder Terminals: Equipped with solder cups or terminals inside the housing for soldering wires, ensuring a reliable electrical connection.

    Current and Voltage Ratings: Designed to handle specific current and voltage ratings suitable for various industrial and outdoor applications, ensuring safe and reliable electrical performance.

    -Environmental Resistance:

    Chemical and UV Resistance: Resistant to oils, chemicals, and UV exposure, ensuring integrity and performance in harsh outdoor environments.

    Wide Temperature Range: Capable of operating within a wide temperature range, making it suitable for both hot and cold environmental conditions.

    Applications

    1.Industrial Machinery and Automation

    2.Renewable Energy Systems

    3.Telecommunications and Networking

    4.Construction and Infrastructure

    Specifications

    Material & SPEC.

    1.Shell Material:                PPO,PA66 UL94V-0

    2.Insulation Materials:      PPS, High Temperature 260°C

    3.Contact:                        Brass,Gold-plated

    4.Insulation resistance:    2000MΩ

    5.Number of   poles:         2~9  poles

    6.Coupling:                       Threaded

    7.Termination:                  Solder

    8.Cable outer Diameter:    6~10mm

    9.IP Rating:                      IP68

    10.Durability:                    500 mating cycles

    11.Temperature Range:      -25°C~+80°C

    Technical Documents

    Please contact us for more information.
