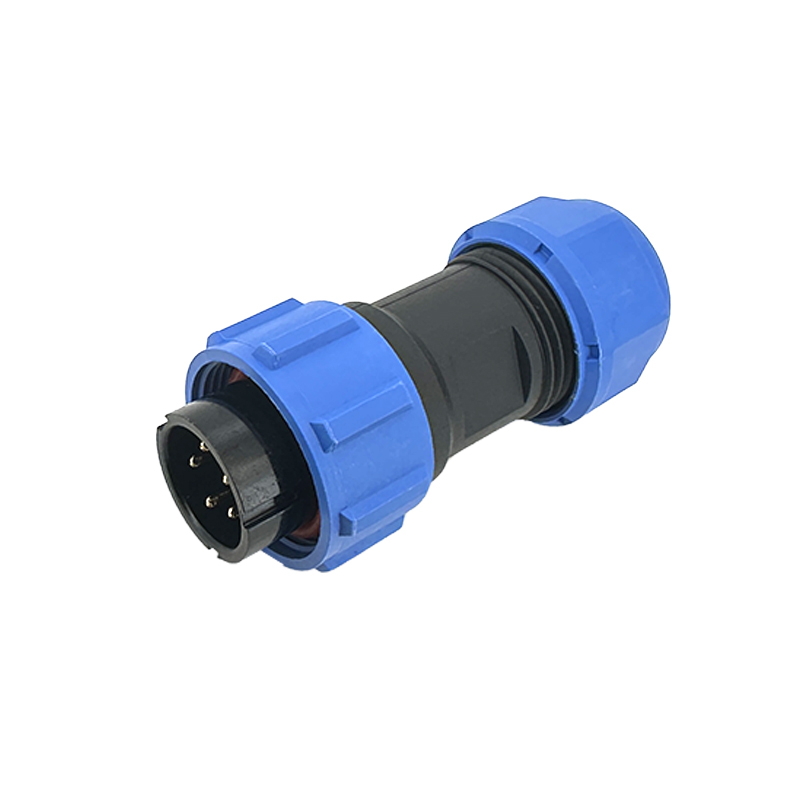

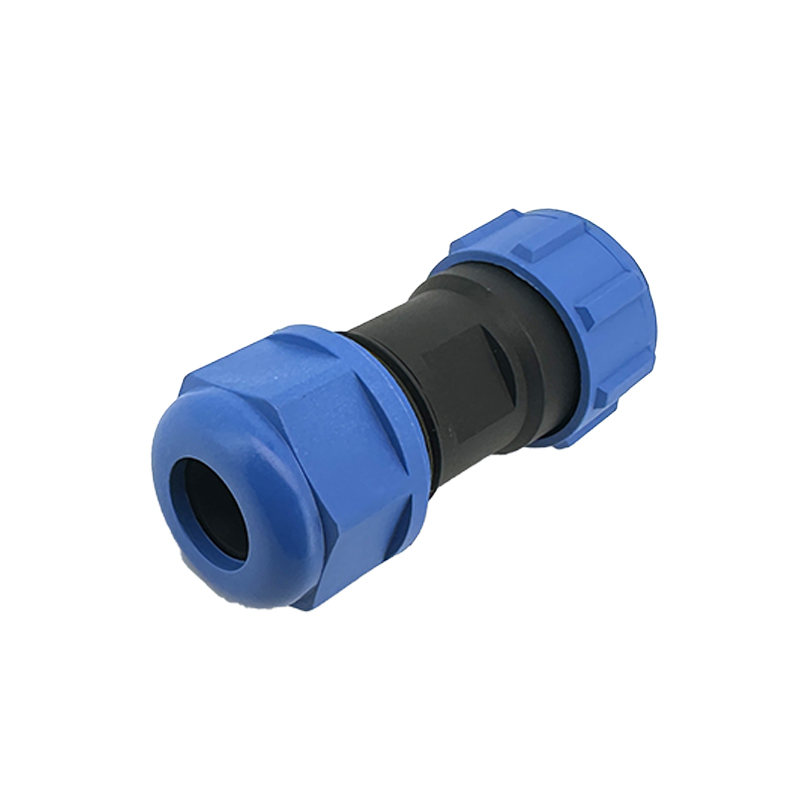

    SP1710/P Compatible IP68 W17 CONN, Male Plug for cable, Solder:RHTOY17A1

    Series Part No: RHTOY17A1
    RoHS Compliance: Yes
    Download
    Datasheet:

    Write Your Request Full P/N
    Specifications Description Reviews


    SP1710/P Compatible

    Features

    -Electrical Characteristics:

    Solder Terminals: Equipped with solder cups or terminals inside the housing for soldering wires, ensuring a reliable electrical connection.

    Current and Voltage Ratings: Designed to handle specific current and voltage ratings suitable for various industrial and outdoor applications, ensuring safe and reliable electrical performance.

    -Environmental Resistance:

    Chemical and UV Resistance: Resistant to oils, chemicals, and UV exposure, ensuring integrity and performance in harsh outdoor environments.

    Wide Temperature Range: Capable of operating within a wide temperature range, making it suitable for both hot and cold environmental conditions.

    -Installation and Mounting:

    Soldering: Requires soldering of the cable wires to the solder cups or terminals inside the connector housing, ensuring a secure and reliable electrical connection.

    Panel Mounting Option: Some variants may include options for panel mounting, allowing for secure installation on equipment panels or enclosures using mounting hardware.

    -Versatility:

    Applications: Suitable for a wide range of applications including outdoor lighting, marine electronics, industrial machinery, telecommunications, renewable energy systems, and more where waterproof and reliable electrical connections are essential.

    Compatibility: Designed to be compatible with corresponding female connectors or sockets of the same series, ensuring interoperability in different systems and installations.

    Applications

    1.Industrial Machinery and Automation

    2.Renewable Energy Systems

    3.Telecommunications and Networking

    4.Construction and Infrastructure

    Specifications

    Material & SPEC.

    1.Shell Material:                PPO,PA66 UL94V-0

    2.Insulation Materials:      PPS, High Temperature 260°C

    3.Contact:                        Brass,Gold-plated

    4.Insulation resistance:    2000MΩ

    5.Number of   poles:         2~9  poles

    6.Coupling:                       Threaded

    7.Termination:                  Solder

    8.Cable outer Diameter:    6~10mm

    9.IP Rating:                      IP68

    10.Durability:                    500 mating cycles

    11.Temperature Range:      -25°C~+80°C

    Technical Documents

    Please contact us for more information.
