SP1310/S Compatible
Features
-Waterproof and Dustproof: The IP68 rating ensures that the connector is completely sealed against dust ingress and can withstand continuous immersion in water beyond 1 meter depth. This makes it suitable for outdoor, marine, and industrial applications where environmental sealing is critical.
-Design and Structure:
oFemale Plug: Designed to be soldered onto the end of a cable, providing a secure electrical connection.
Threaded Coupling: Typically features a threaded coupling mechanism that ensures a tight and secure fit, preventing accidental disconnection and maintaining waterproof integrity.
Durable Housing: Constructed from materials such as metal (e.g., brass or stainless steel) or high-grade plastics, offering durability and resistance to impact and environmental wear.
-Electrical Characteristics:
Solder Contacts: Equipped with solder cups or terminals inside the housing for soldering wires, ensuring a reliable electrical connection.
Current and Voltage Ratings: Designed to handle specific current and voltage ratings suitable for various industrial and outdoor applications, ensuring safe and reliable electrical performance.
-Environmental Resistance:
Chemical and UV Resistance: Resistant to oils, chemicals, and UV exposure, ensuring integrity and performance in harsh outdoor environments.
Wide Temperature Range: Capable of operating within a wide temperature range, making it suitable for both hot and cold environmental conditions.
Applications
1.Outdoor Lighting and Landscape Applications
2.Marine and Aquatic Environments
3.Industrial Machinery and Automation
4.Renewable Energy Systems
5.Agricultural Equipment
Specifications
Material & SPEC.
1.Shell Material: PPO,PA66 UL94V-0
2.Insulation Materials: PPS, High Temperature 260°C
3.Contact: Brass,Gold-plated
4.Insulation resistance: 2000MΩ
5.Number of poles: 2~9 poles
6.Coupling: Threaded
7.Termination: Solder
8.Cable outer Diameter: Not- 4~6.5mm; G- 5~8mm
9.IP Rating: IP68
10.Durability: 500 mating cycles
11.Temperature Range: -25°C~+80°C
Technical Documents
Please contact us for more information.
W13&W17&W21 IP68 waterproof circular connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of W13&W17&W21 IP68 waterproof circular connectors.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.

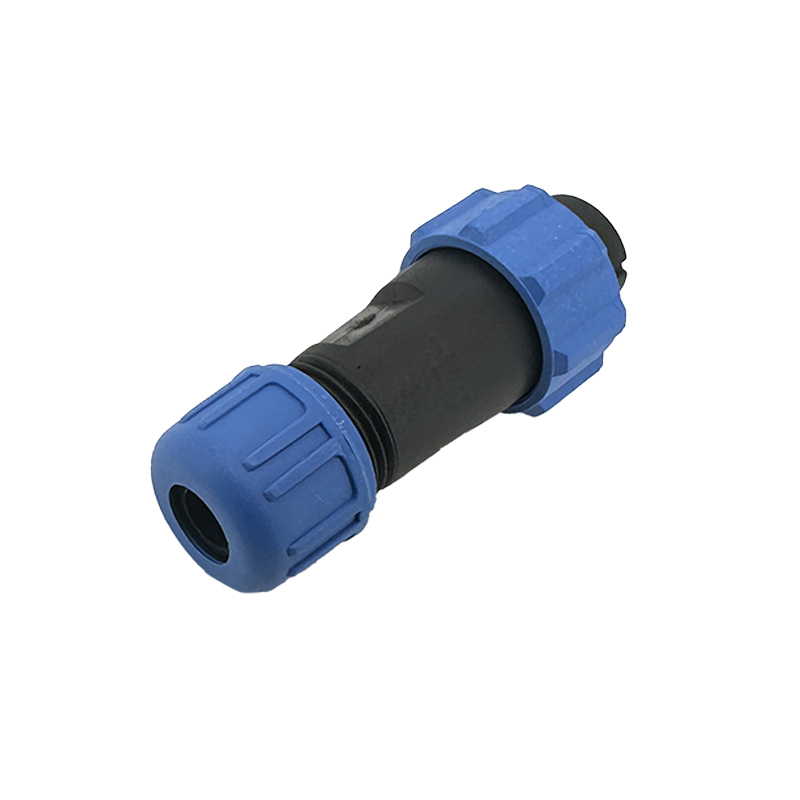

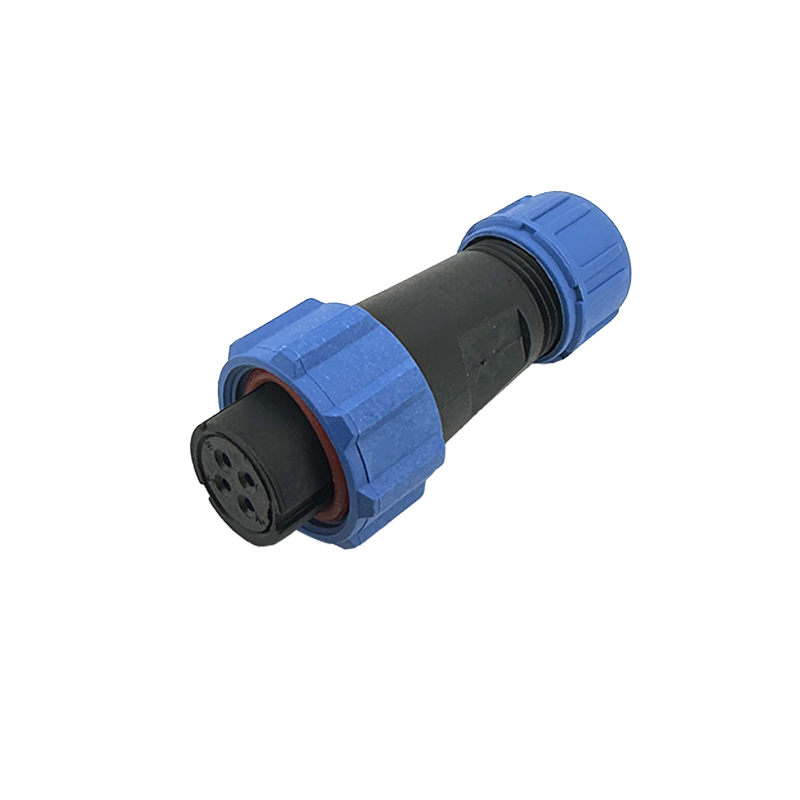

SP1310/S Compatible IP68 W13 CONN, Female Plug for cable, Solder :RHTOY13B1
