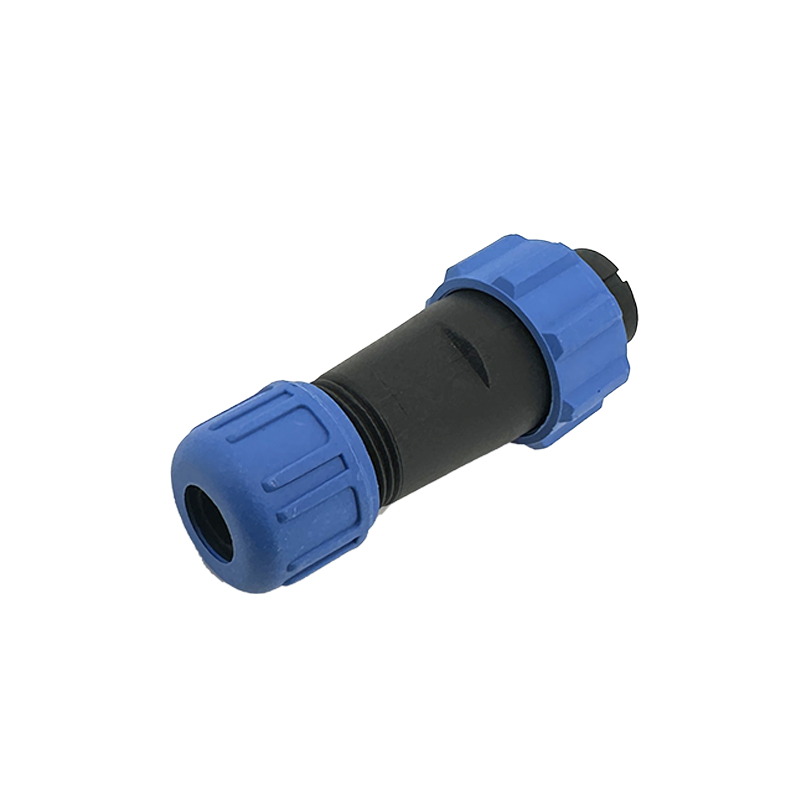

SP1311/S Compatible
Features
-IP68 Rating: This indicates the connector is dust-tight and can withstand continuous immersion in water beyond 1 meter depth, making it suitable for outdoor and harsh environments where waterproofing is crucial.

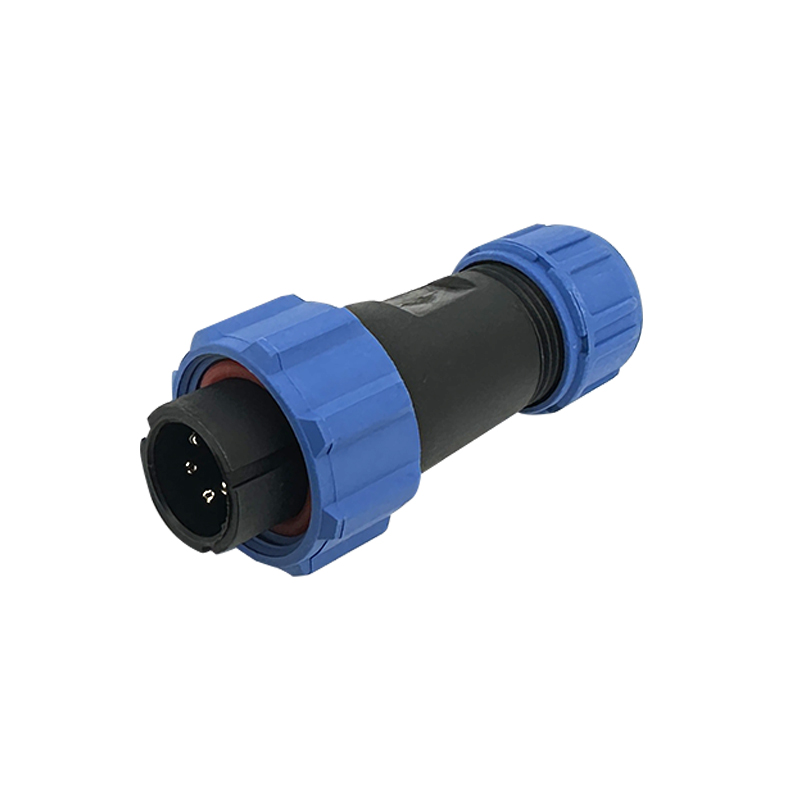

-Male Plug: This specifies the gender of the connector, indicating it has pins that insert into a female connector or socket.
-Cable Connection: Designed for soldering cables directly to the connector, ensuring a secure and reliable electrical connection that can withstand vibration and environmental stress.
-Solder Contacts: Typically features solder cups or terminals for direct soldering of wires, providing a robust connection that is resistant to mechanical strain and environmental factors.
Applications
1.Renewable Energy Systems
2.Telecommunications
3.Agricultural Equipment
4.Medical Devices
Specifications
Material & SPEC.
1.Shell Material: PPO,PA66 UL94V-0
2.Insulation Materials: PPS, High Temperature 260°C
3.Contact: Brass,Gold-plated
4.Insulation resistance: 2000MΩ
5.Number of poles: 2~9 poles
6.Coupling: Threaded
7.Termination: Solder
8.Cable outer Diameter: Not- 4~6.5mm; G- 5~8mm
9.IP Rating: IP68
10.Durability: 500 mating cycles
11.Temperature Range: -25°C~+80°C
Technical Documents
Please contact us for more information.
