Features
-Metal Housing: Made from stainless steel, aluminum, or brass, offering superior strength and corrosion resistance, which is ideal for harsh environments.
-Impact Resistance: The metal body is highly resistant to physical damage, making it suitable for high-traffic or high-impact areas.
-Durability: Designed for heavy-duty use and capable of withstanding the stresses of continuous operation without failure.
-Sealed Construction: Often comes with rubber gaskets or seals to prevent moisture or debris from entering the switch mechanism.
Applications
1.Industrial & Machinery Controls
2.Automotive Applications
3.Smart Homes & IoT Devices
4.Gaming & Entertainment
Specifications

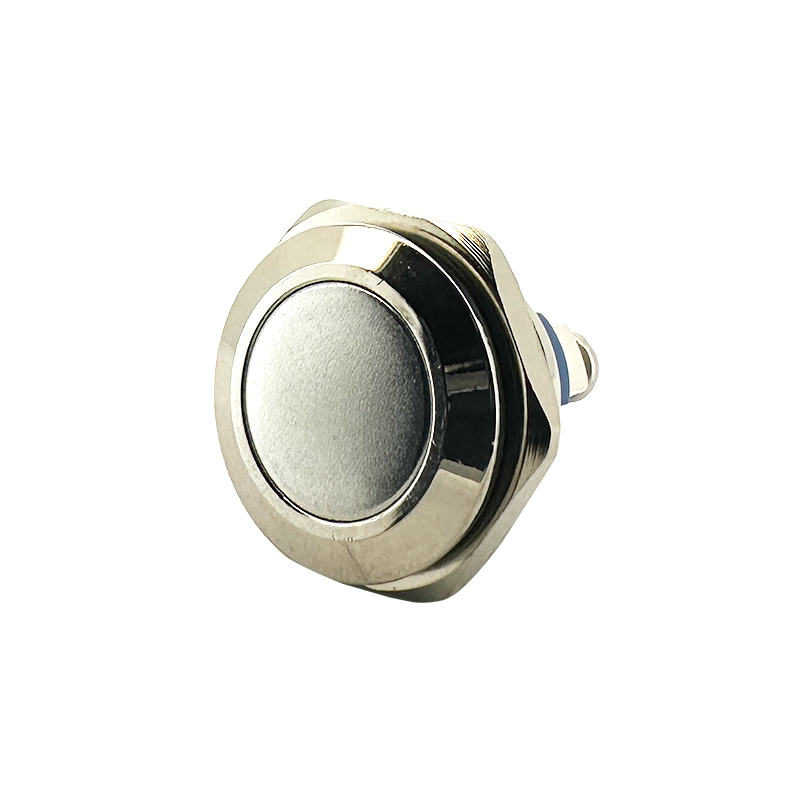

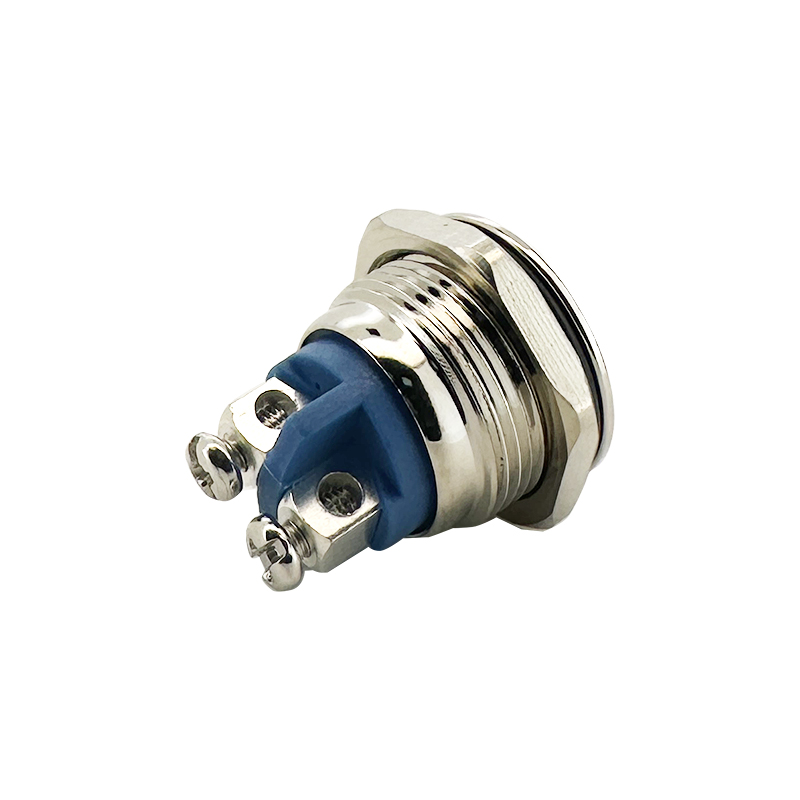

Metal Push Button Switch IP65
Rating: 2A 36V DC
Mounting Hole: Ø16 mm
Insulation Resistance: 1,000MΩ Mim
Contact Resistance: 50MΩ Max.
Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -20oC ~ +55oC
Mechanical Life: 1,000,000 cycles
Electrical Life: 20,000 cycles
Technical Documents
Please contact us for more information.
Push button switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Push button switches.
Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Metal Push Button Switch :RHTGYBS-M16-01
