Features
-Voltage Rating: Typically 12V to 24V DC (varies by model).
-Current Rating: Usually 25mA to 100mA.
-Dielectric Strength: Withstands high voltage without breakdown.
-Housing Material: High-temperature plastic (PBT, PA6T) for heat resistance.
Applications
1.Embedded Systems & Microcontrollers
2.Industrial Automation & Control Systems
3.Networking & Communication Devices
4.Consumer Electronics
Specifications
Order Information
RHTGYP-02-N-00
VP: New Piano Type Through hole
02: Number of Pos. 2\3\4\5\6\8\10 Pos.
N: Color Code: N-Black
0: 0- Non-Sealed
0: Packing Code 0- Tube Packing
Contact Rating: 25 mA at 24VDC(switching)
100 mA at 50VDC(steady state)
Life: 1,000 cycles
Contact Resistance: 100mΩ Max.
Insulation Resistance: 100MΩ at 100VDC Min
Dielectric Strength: 300VAC Min
Storage Tempeeature: -40°C ~ 85°C
Operating Tempeeature: -25°C ~ 70°C.
Operation Force : 9.8N Max.
Materials
Base & Cover: PPS (UL94V-0)
Actuator: PA46 (UL94V-0).
Contacts: Brass, Gold /Tin Plate
Terminals: Brass, Gold /Tin Plate
Technical Documents
Please contact us for more information.

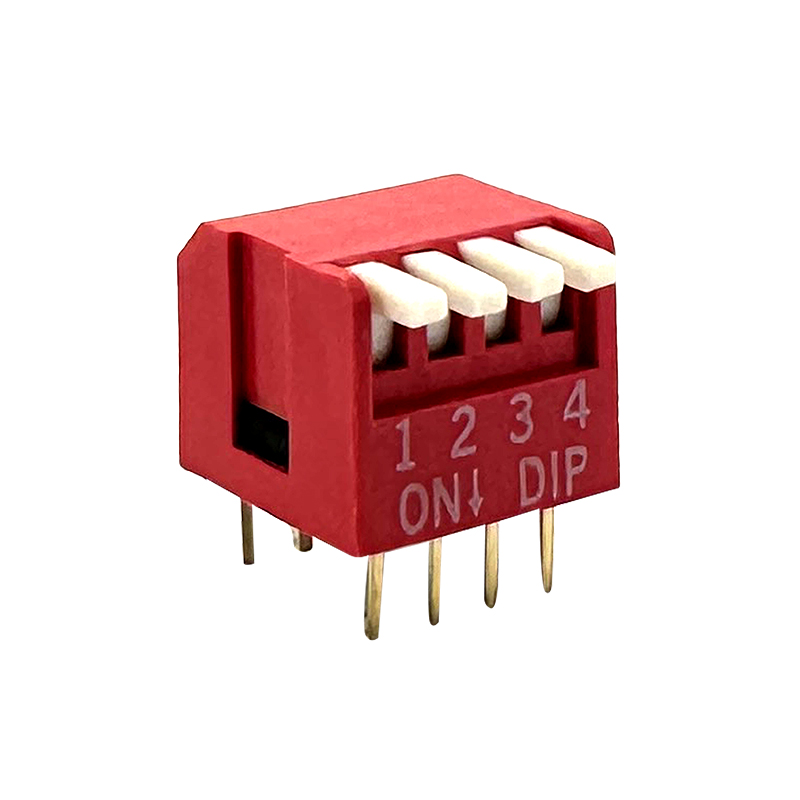

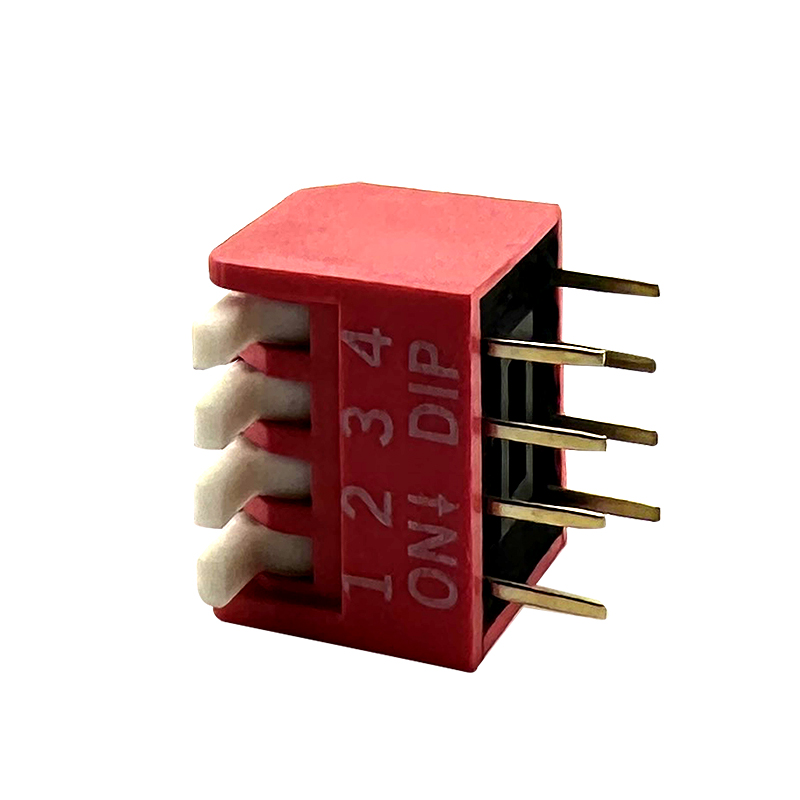

New Piano Type Through hole :RHTGYP
