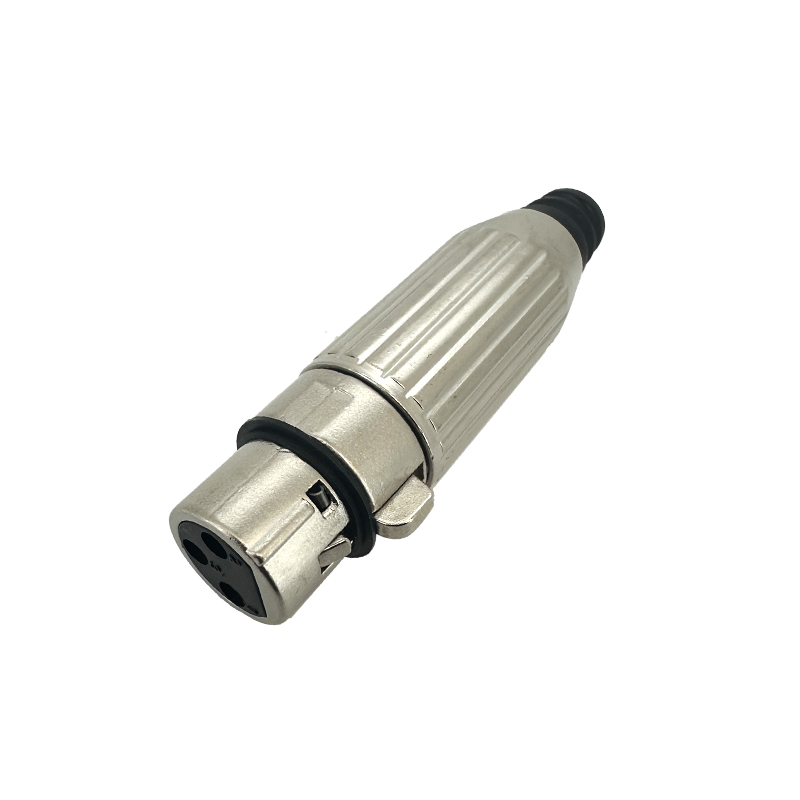

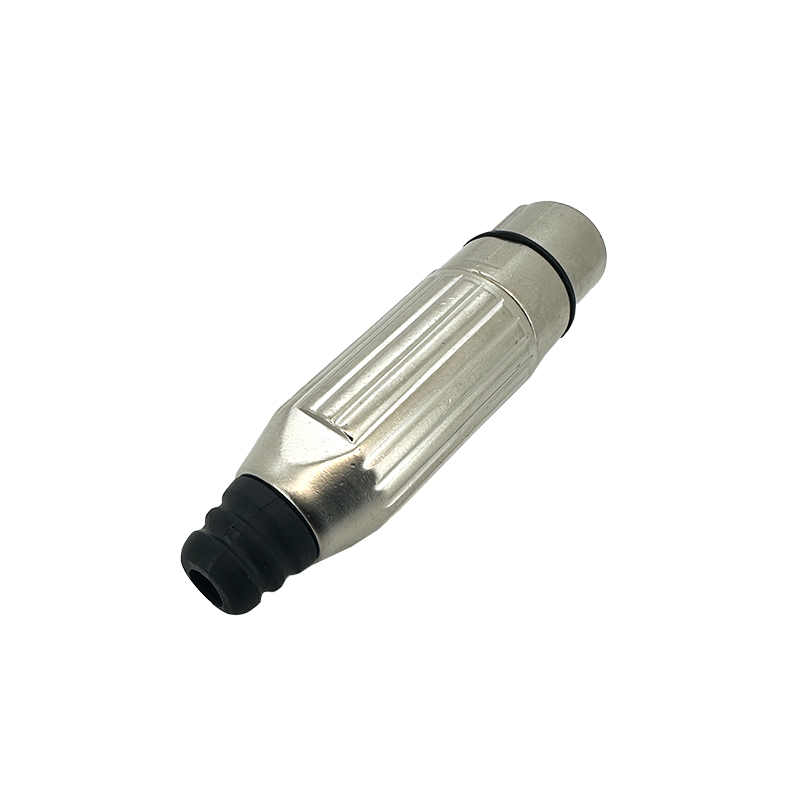

XLR Plug Connector : RE-C-XLR-P15

Series Part No: RE-C-XLR-P15

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Electrical Specification:
Number of contacts: 3
Contact resistance: ≤ 5M Ω
Insulation resistance: ≥ 5000M Ω
Rated current : 16 A
Voltage: 1400V
Axial fixity: ≥ 100N
Foot separation force: 85 ± 5g
The Insertion force 10-80N

XLR Plug Connector : RE-C-XLR-P15
