Features
-Grounding and Shielding: The balanced design of XLR plugs uses three pins (signal, negative signal, and ground), which helps in rejecting external electromagnetic interference (EMI) and ground loop hum.
-Superior Signal Transmission: The pins and contacts of most XLR connectors are gold-plated or nickel-plated, which enhances signal conductivity and minimizes oxidation or corrosion over time. This ensures long-term signal integrity and excellent audio quality.
-Clear Audio Transmission: XLR connectors are ideal for long-distance audio transmission, as they ensure low signal loss and high-quality sound reproduction.
-Gender Options: XLR connectors come in male and female versions. The male XLR plug has pins that mate with the female XLR socket, providing a secure connection. Female XLR sockets are typically found on equipment panels, while male XLR plugs are on cables.
Applications
1.Microphone Connections
2.Recording Studios
3.Live Performance and Concerts
4.Lighting Control Systems
Specifications
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

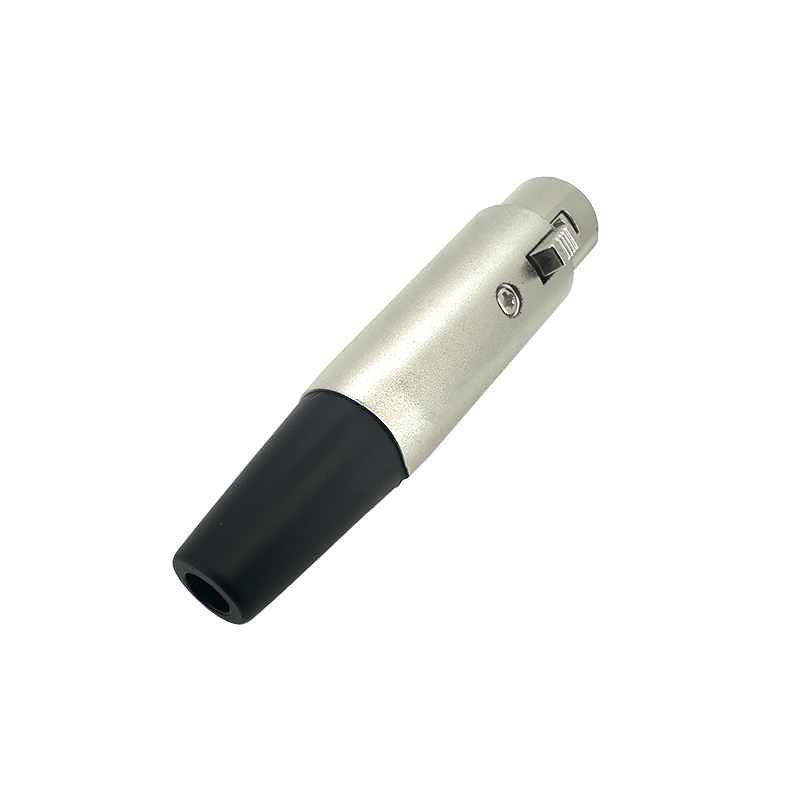

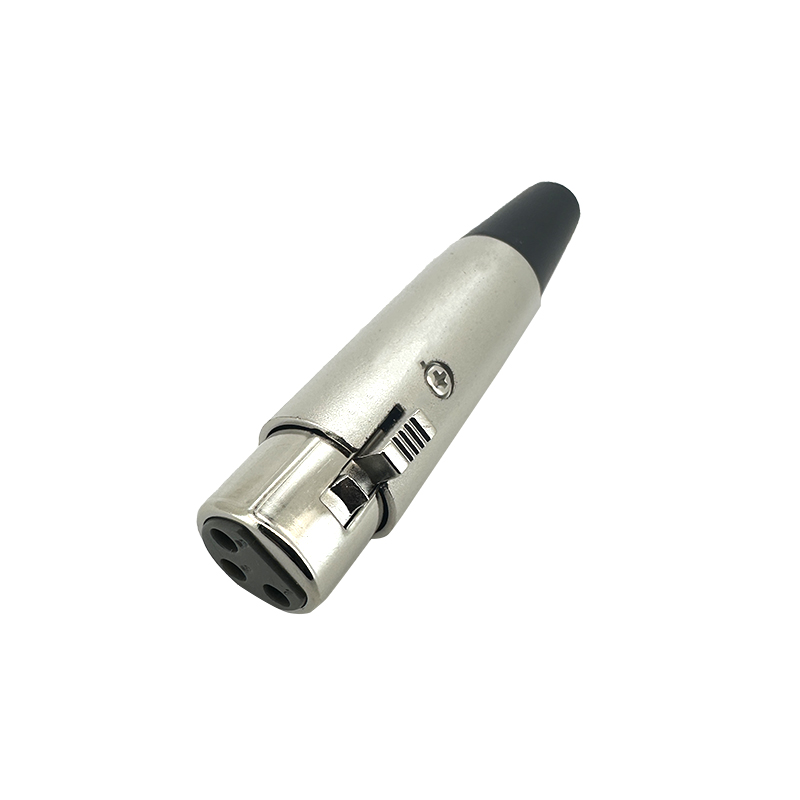

XLR Plug Connector : RHTAYLR-P10
