Features
-Noise Reduction: The XLR connector is designed for balanced audio transmission, which helps reduce electromagnetic interference (EMI) and ground loop hum, ensuring a clean and clear audio signal.
-Three Pins: The three-pin design (positive, negative, and ground) ensures a balanced connection, minimizing the risk of signal degradation, especially over long cable runs.
-High-Quality Construction: XLR plugs are made from durable materials such as brass, aluminum, or steel, making them resistant to physical wear and tear.
-Long Lifespan: The robust design ensures that XLR plugs can withstand frequent use in demanding environments, such as concerts, broadcast studios, and field recordings.
Applications
1.Microphone Connections
2.Professional Audio Systems
3.Lighting Control Systems
4.Security and Communication Systems
Specifications
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

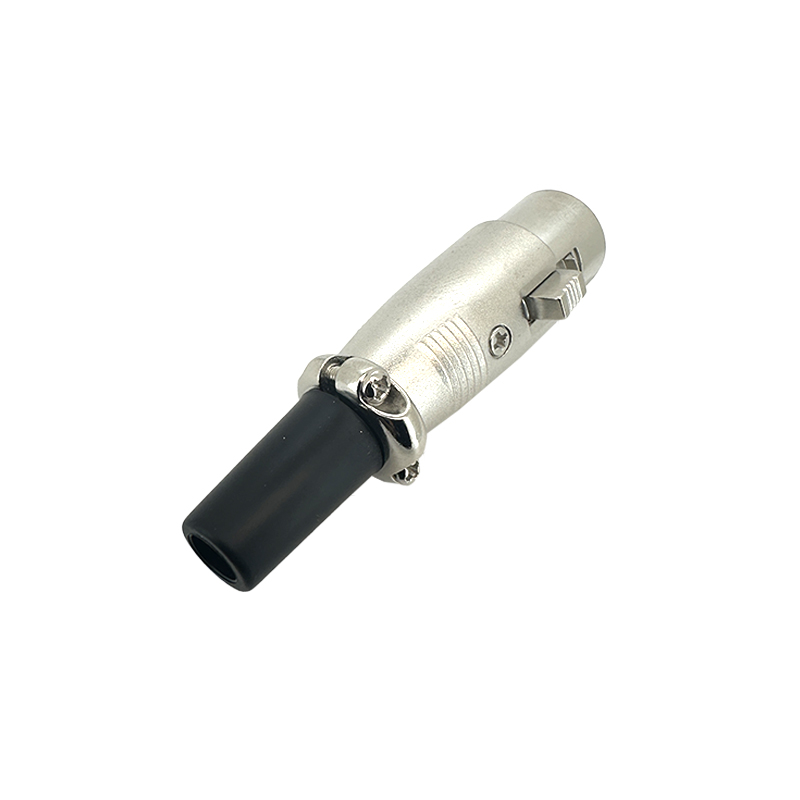

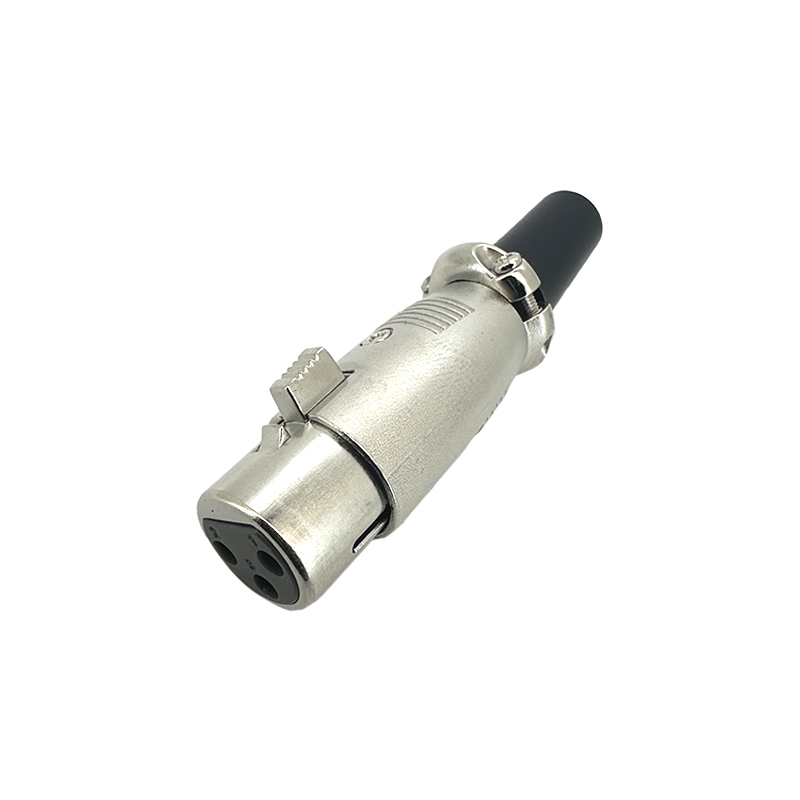

XLR Plug Connector:RHTAYLR-P08
