Features
-Color Coding: XLR connectors often feature color coding for easy identification:
Male XLR plugs are typically silver or nickel-plated.
Female XLR sockets may have color-coded rings (e.g., black for microphone inputs, red for line outputs) to distinguish between different signal types or functions.
-Standardization: XLR connectors adhere to industry standards (such as AES and IEC standards) for dimensions and pin configurations, ensuring compatibility across different manufacturers and equipment.
-Latch Locking Mechanism: XLR connectors feature a latch or locking mechanism that securely holds the connector in place once inserted into a corresponding XLR socket. This locking mechanism prevents accidental disconnection, which is crucial in live sound and performance settings.
-Versatility: XLR connectors are versatile and used in various applications beyond audio, including professional lighting equipment, intercom systems, and some digital audio interfaces. They can carry balanced audio signals over long distances without significant signal degradation.
Applications
1.Theater and Live Performances
2.Film and Video Production
3.Intercom Systems
4.Home Audio
Specifications
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

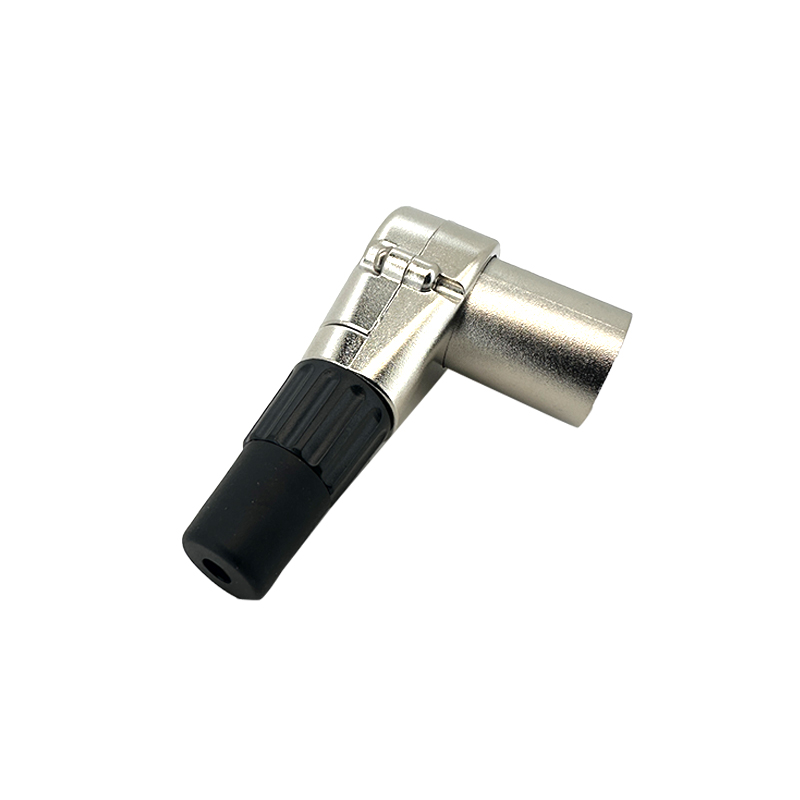

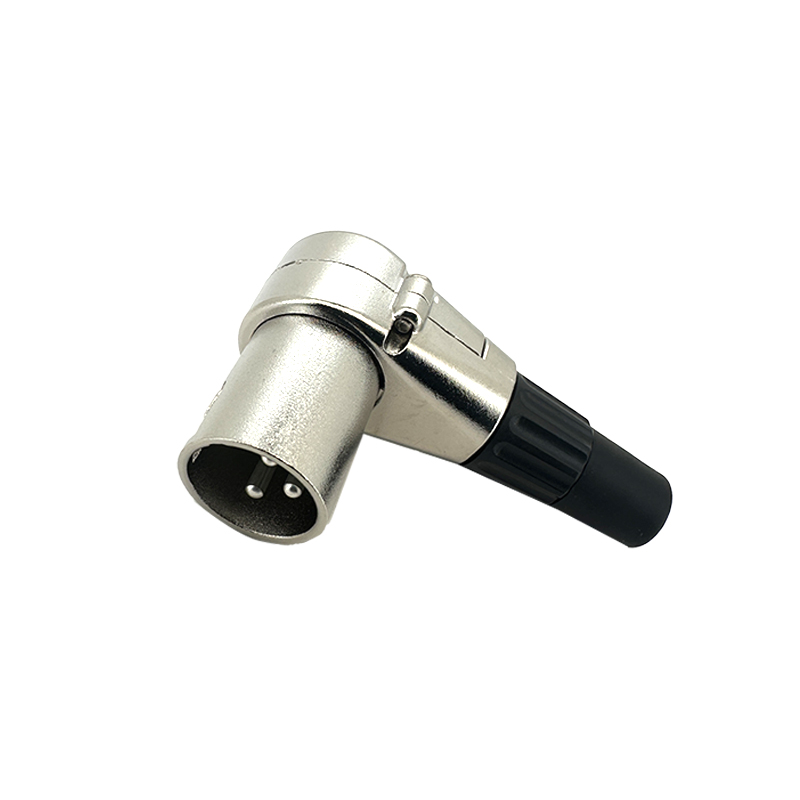

XLR Plug Connector : RHTAYLR-P02
