Features
-Push-to-Lock Design: The female XLR socket includes a locking mechanism that securely holds the XLR plug (male connector) in place once inserted, preventing accidental disconnections.
-Long-Term Reliability: The gold plating ensures that the connector maintains its performance and reliability even after many cycles of use.
-IP-Rating: Certain XLR socket connectors are rated with an Ingress Protection (IP) number, indicating their resistance to elements like dust and water.
-Ergonomic Design: Their compact form factor and easy handling make them suitable for use in environments where cables are frequently connected and disconnected.
Applications
1.Microphone Connections
2.Live Performances and Concerts
3.Lighting Control Systems
4.Field Recording and Audio Capture
Specifications
Contact resistance: ≤ 0.03Ω
Insulation resistance: ≥ 100mΩ
Withstand voltage: 500V AC (50Hz)/minute
Rated load: 50V DC, 1A
Insertion and extraction force: 4-40N
Temperature range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

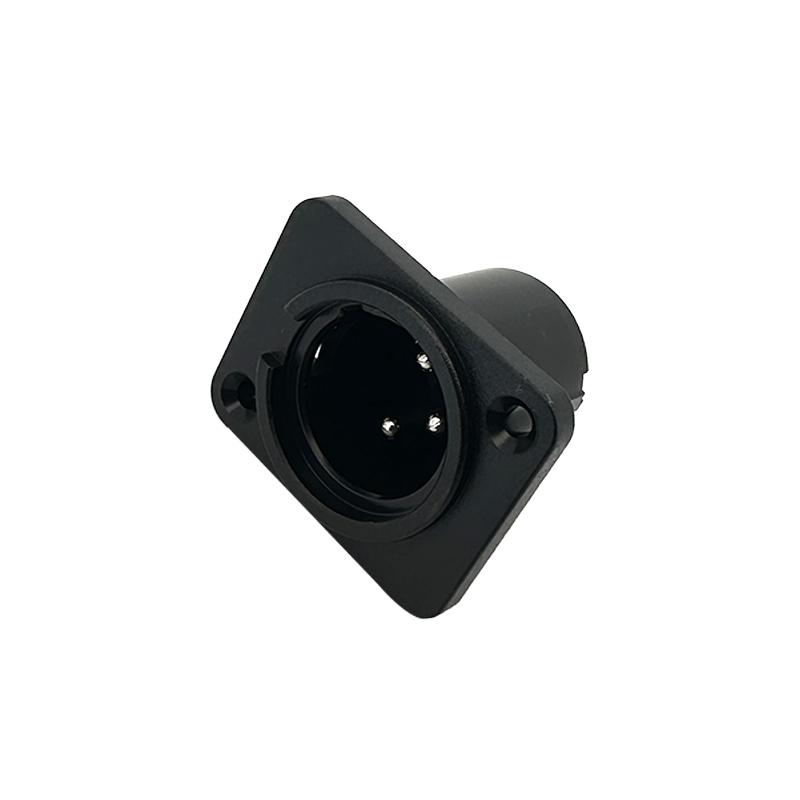

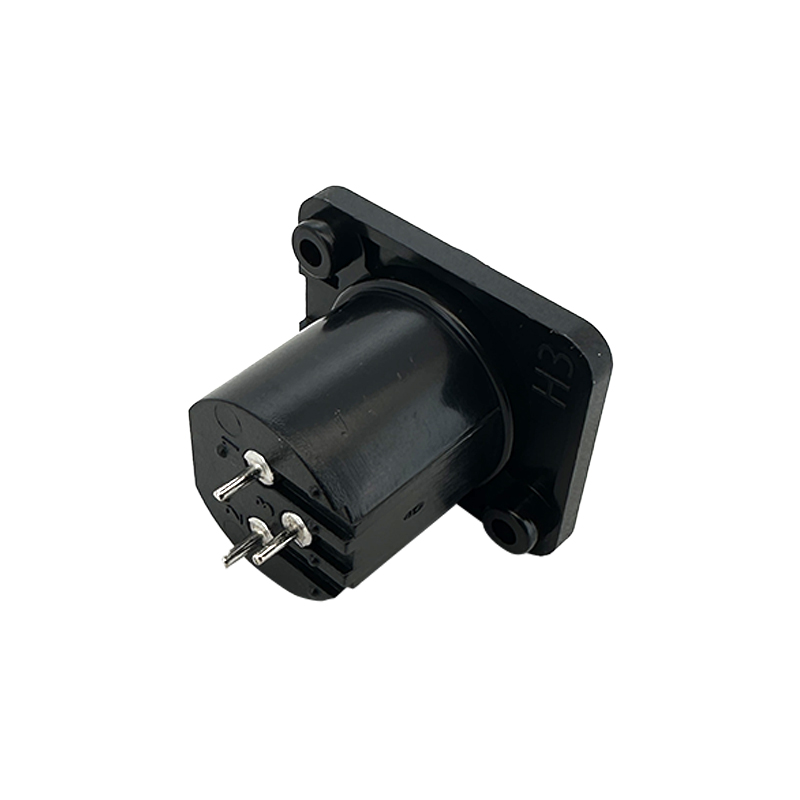

XLR Socket Connector:RHTAYLR-S01
