Features
-Noise Reduction: XLR connectors are designed to transmit balanced audio signals, which reduces noise and interference, making them ideal for professional environments where signal clarity is crucial.
-Grounding: The balanced design (with three pins—positive, negative, and ground) helps in eliminating ground loop hum and electromagnetic interference (EMI), ensuring a clean and clear signal.
-Long Lifespan: The robust construction ensures that XLR plugs can withstand frequent plugging and unplugging in demanding environments like live events, field recordings, and studios.
-Superior Signal Transmission: Many XLR connectors have gold-plated contacts, which ensure low contact resistance, high conductivity, and minimal signal degradation over time.ent.
Applications
1.Microphone Connections
2.Broadcasting
3.Live Performances and Concerts
4.Theater and Stage Productions
Specifications
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

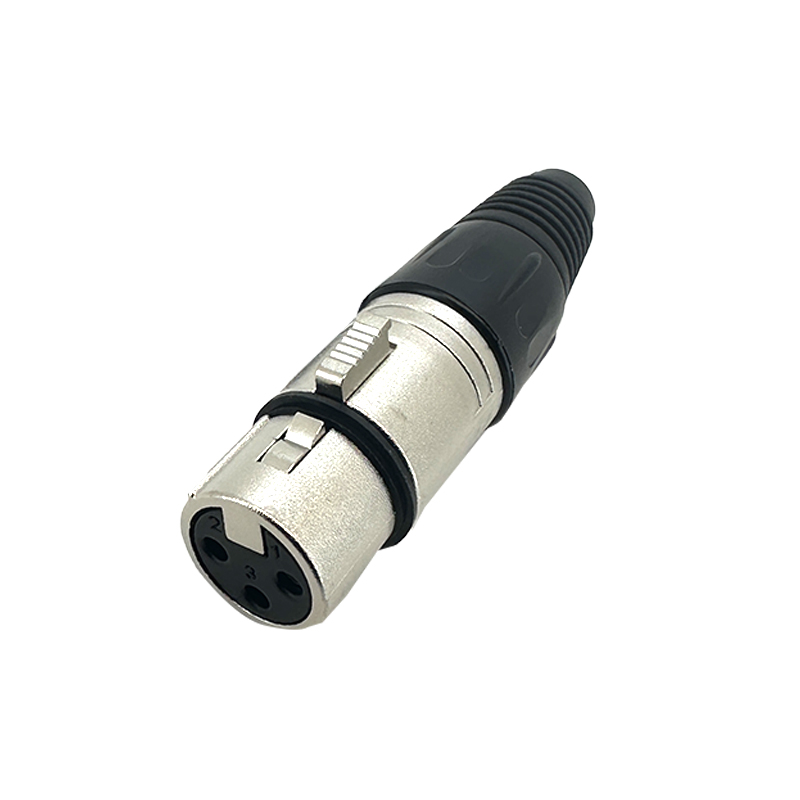

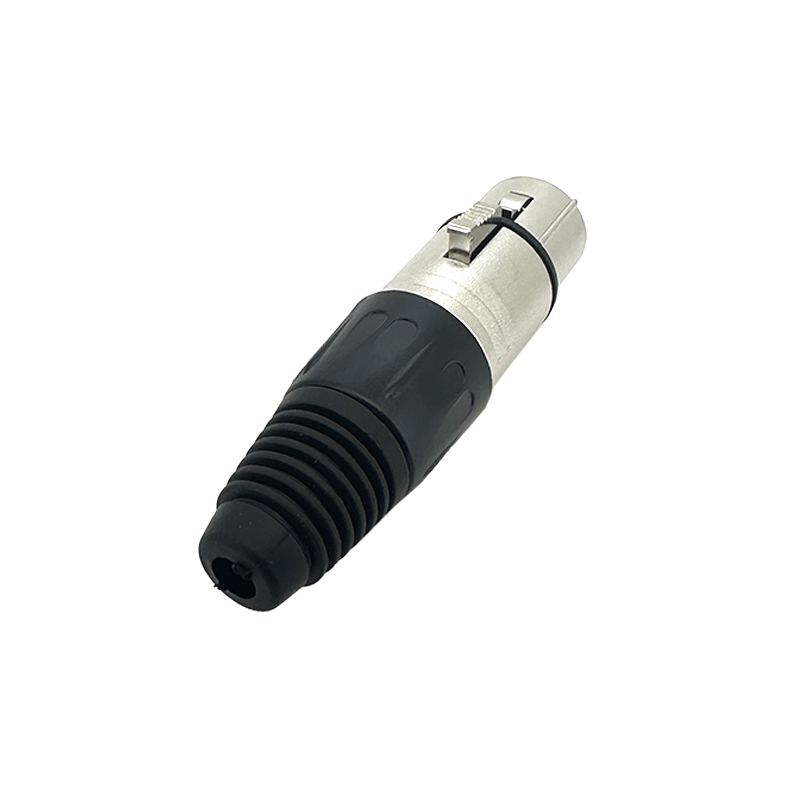

XLR Plug Connector : RHTAYLR-P11
