Features
-Noise Reduction: XLR connectors are designed to provide balanced audio transmission, which reduces electromagnetic interference (EMI) and ground loop hum, ensuring clear and high-quality sound signals over long distances.
-Three Pin Configuration: XLR plugs typically feature a three-pin design, with one pin for the positive signal, one for the negative signal, and one for ground, which helps in maintaining the integrity of the signal.
-High-Quality Materials: XLR connectors are made from strong materials such as brass, aluminum, and steel, which make them resistant to wear, corrosion, and physical damage.
-Long Lifespan: Due to their rugged design, XLR plugs are built to last, making them ideal for professional environments where frequent use and physical wear are common.
Applications
1.Microphone Connections
2.Recording Studios
3.Film and Video Production
4.Theater and Stage Productions
Specifications
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

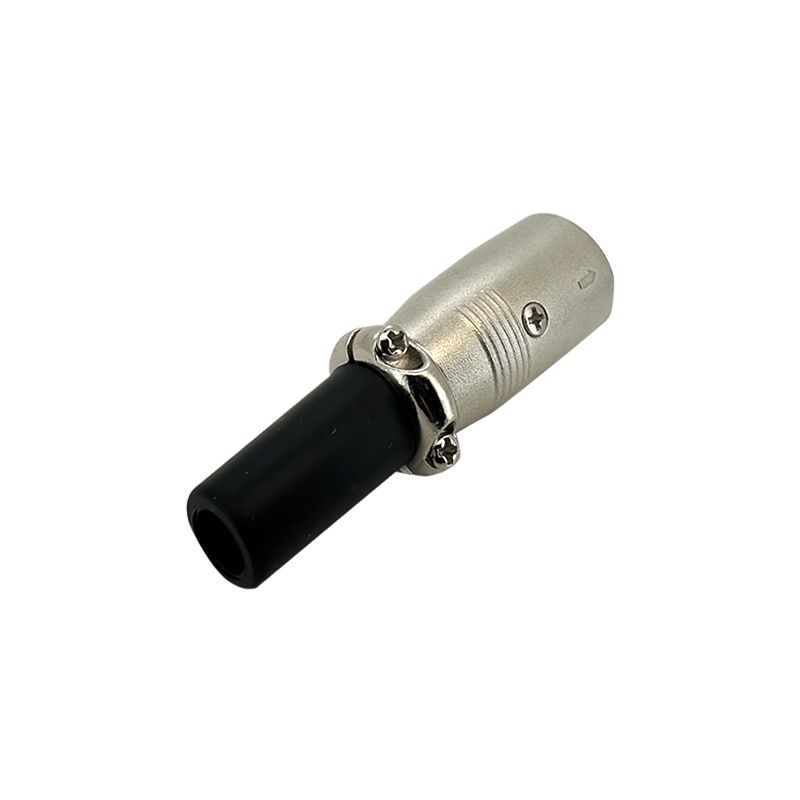

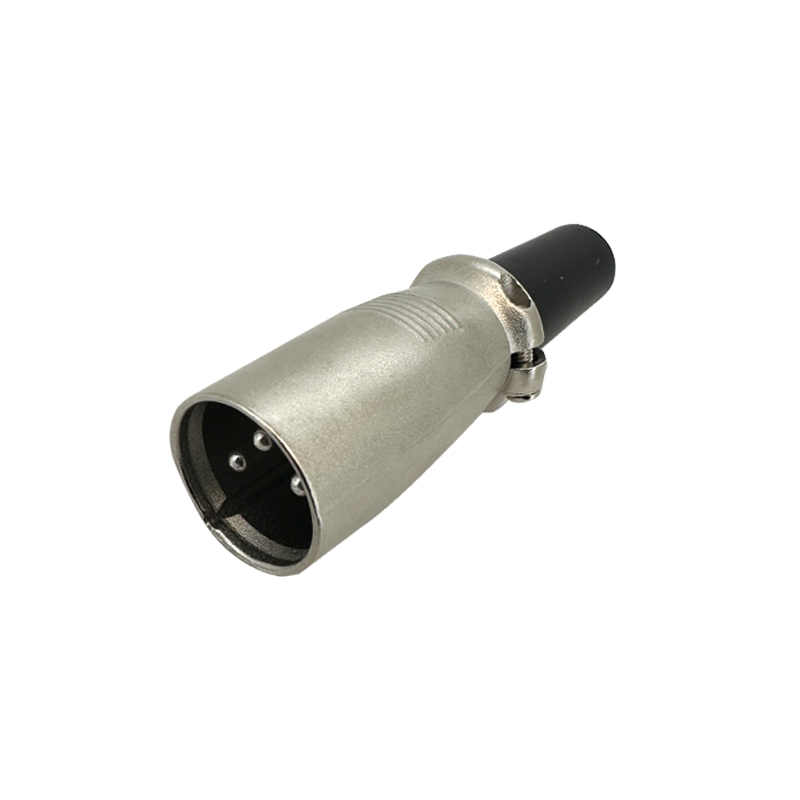

XLR Plug Connector:RHTAYLR-P09
