Features
-Standardization: XLR connectors adhere to industry standards (such as AES and IEC standards) for dimensions and pin configurations, ensuring compatibility across different manufacturers and equipment.
-Water Resistance: Some XLR connectors, especially those used in outdoor or touring environments, may feature water-resistant designs or coatings to protect against moisture and environmental elements.
-Shielded Design: XLR connectors are designed with a shielded housing and connections, which helps to protect the audio signal from electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding ensures clean and noise-free audio transmission.
-Gender Options: XLR connectors come in male and female versions. The male XLR plug has pins that mate with the female XLR socket, providing a secure connection. Female XLR sockets are typically found on equipment panels, while male XLR plugs are on cables.
Applications
1.Intercom Systems
2.Studio Equipment
3.Lighting Equipment
4.Video Equipment
Specifications
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

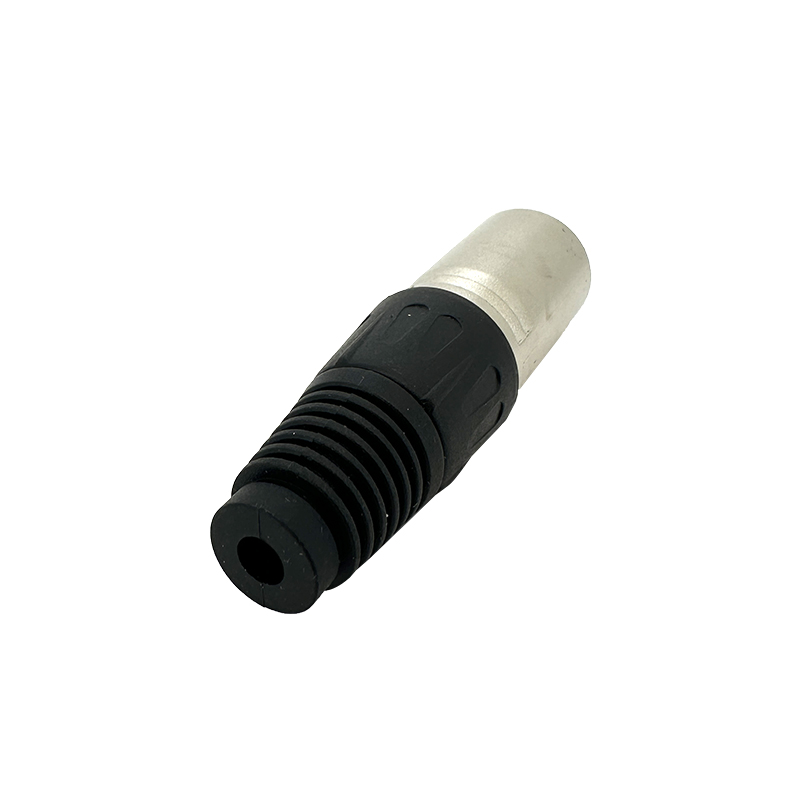

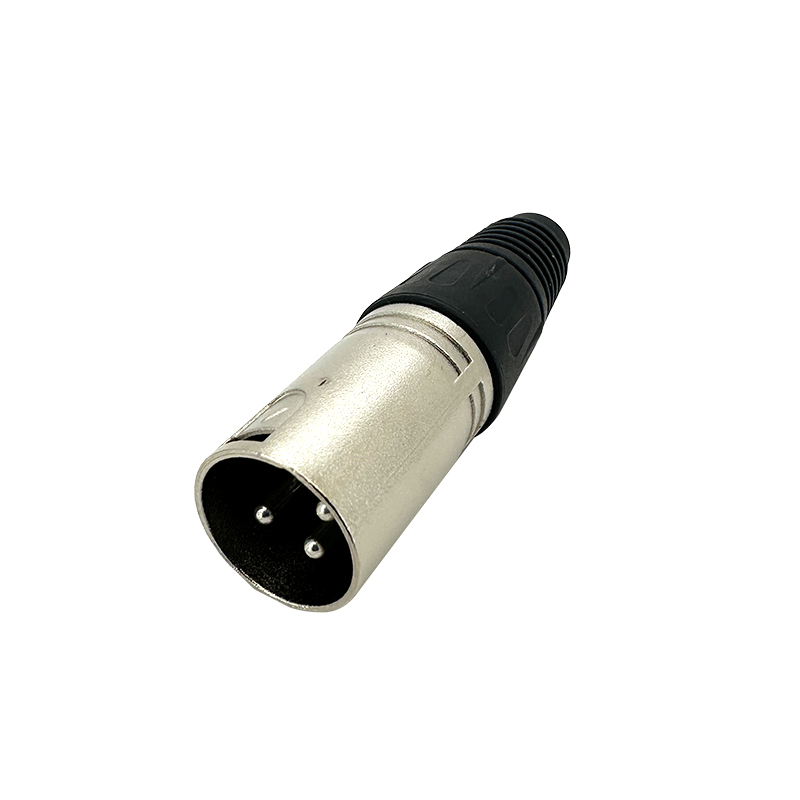

XLR Plug Connector : RHTAYLR-P05
