Features
-Heavy-Duty Housing: XLR plugs are typically constructed from high-quality metal alloys such as brass or aluminum, ensuring a durable and robust design that can withstand physical wear and tear.
-Noise Reduction: XLR plugs are widely used for balanced audio transmission, which helps in reducing electromagnetic interference (EMI) and ground loop noise, crucial for maintaining high-quality audio signals over long cable runs.
-High-Quality Audio: The design allows for clear, distortion-free audio in professional environments, ensuring that sound systems maintain integrity even in challenging environments.
-Prevents Unintended Disconnections: This is particularly important for ensuring continuous audio signal during performances, events, and recordings, where a sudden disconnection can disrupt the entire system.
Applications
1.Microphone Connections
2.Audio Mixing Consoles
3.Speakers and Amplifiers
4.Broadcasting and Recording Studios
Specifications
Number of contacts: 3
Contact Resistance: ≤ 3 mOhms
Insulation Resistance Initial: > 2 GOhms
After Damp Heat Test: > 1 GOhms
Dielectric Strength: 1500 V dc
Rated current : 16 A
Mechanical Lifetime: >1000 cycles
Insertion / Withdrawal Force: ≤ 20 N
Cable O.D. Range: 4.0 mm - 8.0 mm
Temperature Range: -30° C to + 80° C
Technical Documents
Please contact us for more information.

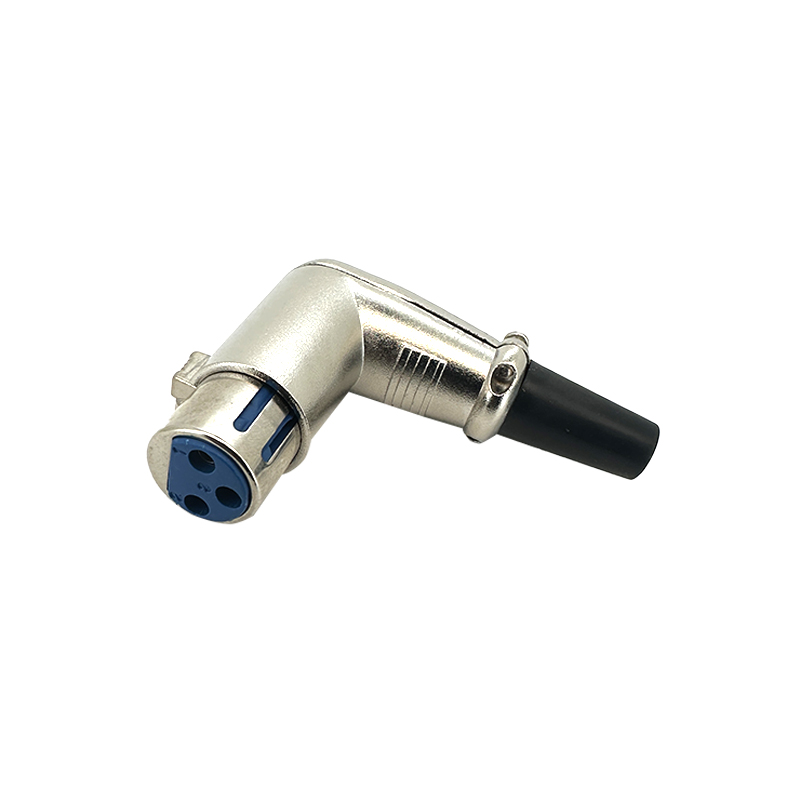

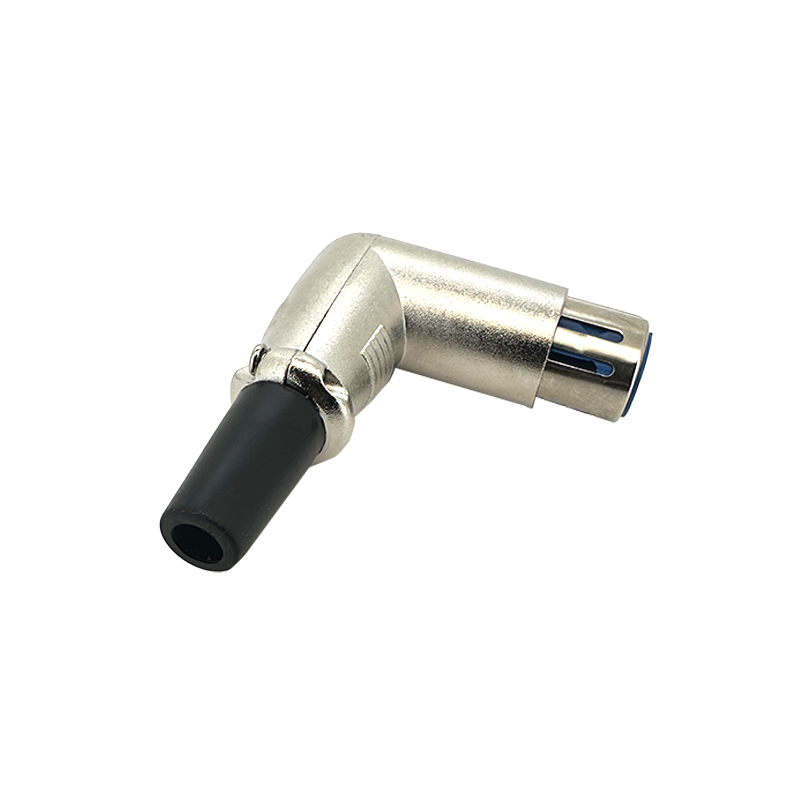

XLR Plug Connector : RHTAYLR-P03
