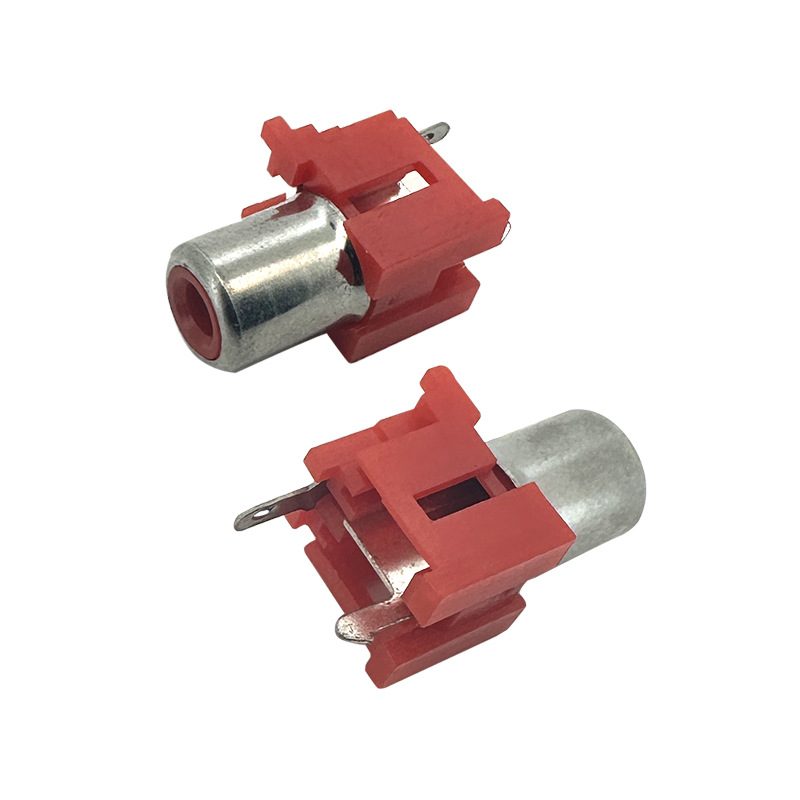

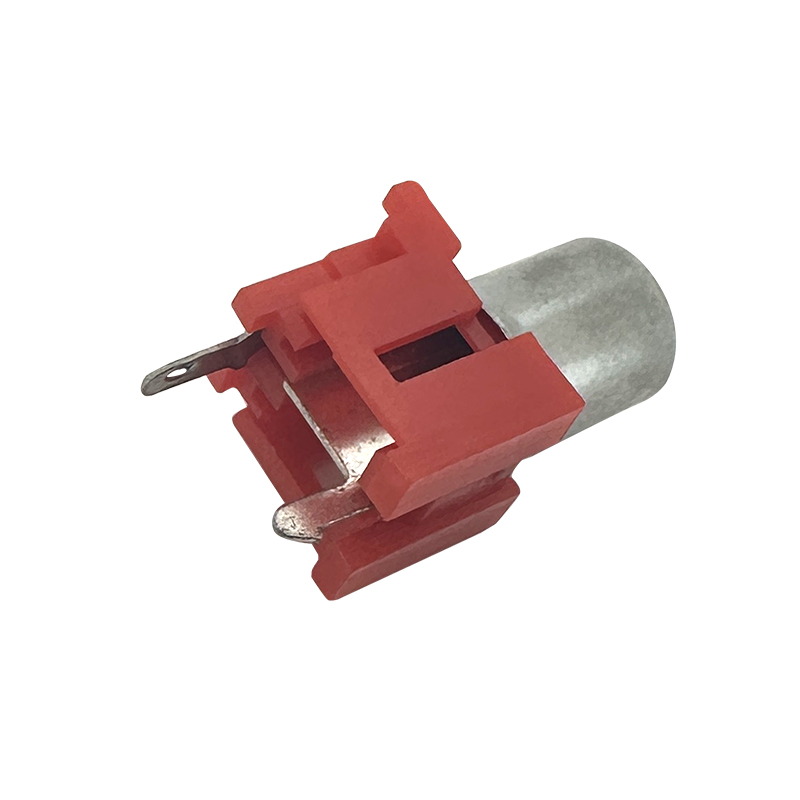

RCA Jack Connector : RE-C-RCA-101

Series Part No: RE-C-RCA-101

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance: 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature: -25ºC~+85ºC
Materials:
Housing: PBT UL94V~0
Terminal 1: C R Steel
Terminal 4: Brass

RCA Jack Connector : RE-C-RCA-101
