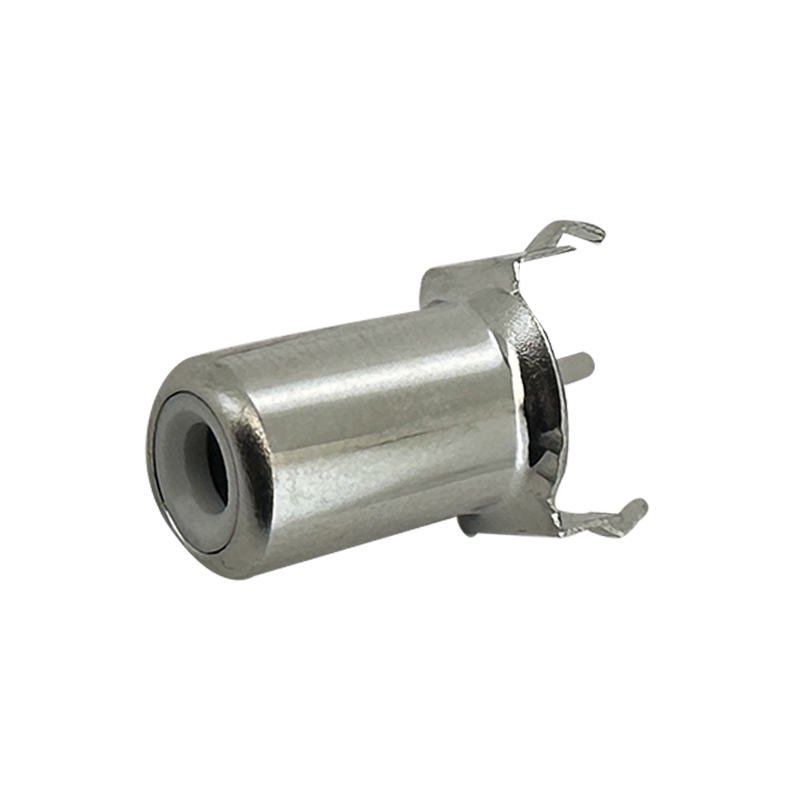

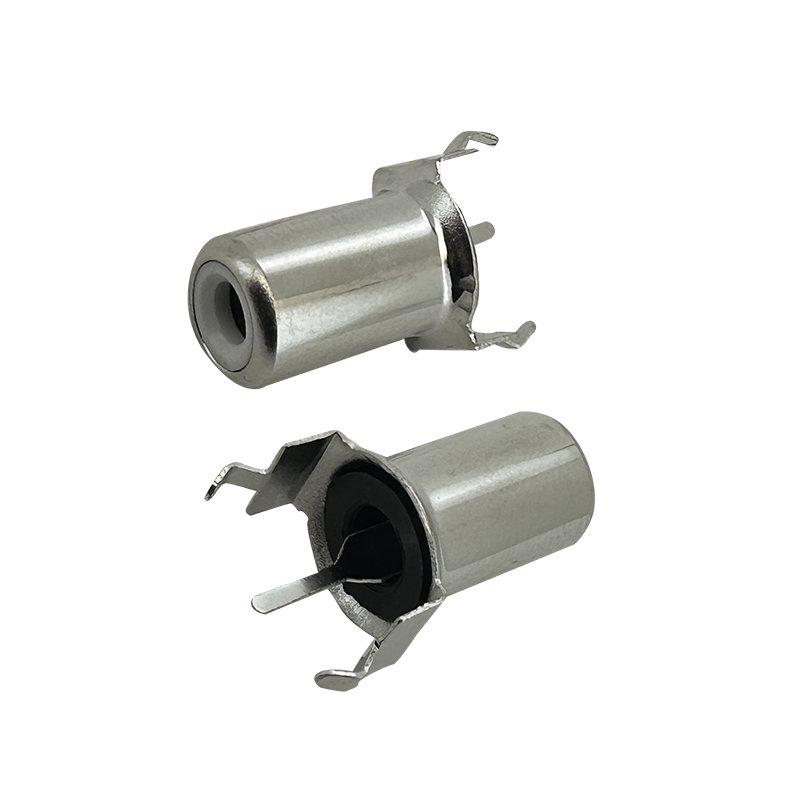

RCA Jack Connector : RE-C-RCA-106

Series Part No: RE-C-RCA-106

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Insulator : PBT UL94V~0
Insert Ring : ABS UL94V~0
Certer Pin : Brass
Bracket : C.R.S.
Barrel : C.R.S

RCA Jack Connector : RE-C-RCA-106
