Features
-Dual Rows: The "2x3" designation indicates that the connector features two rows of RCA jacks. Each row contains three jacks, usually color-coded for easy identification of signal types.
-Versatility: This configuration allows for multiple connections within a single connector unit. It supports various audio and video configurations, including stereo audio signals (left and right channels) and composite video signals.
-Ease of Installation: They are designed for ease of installation, typically requiring basic tools for mounting and wiring. This makes them suitable for both professional installations and DIY projects where multiple audio/video connections need to be consolidated.
-Durable Construction: High-quality RCA jack connectors 2x3 are constructed from durable materials such as metal (often nickel-plated or gold-plated) or robust plastics. This construction ensures longevity and reliable performance even with frequent use.
Applications
1.DIY Audio/Video Projects
2.Industrial Applications
3.Outdoor Audio/Video Installations
4.Custom AV Solutions
Specifications
Technical parameters:
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Rated Load: DC 50V 0.5A
Withstand voltage: 500V AC / 1 minute/50Hz
Insertion Force :5-30 N
Life: 5000 times
Operating Temperature: -25ºC ~ 70ºC
Material:
Sealed Plate : Steel
Terminal : Brass
Outer Contact : Brass
Washer : PBT UL94V~0
Housing : PBT UL94V~0
Technical Documents
Please contact us for more information.

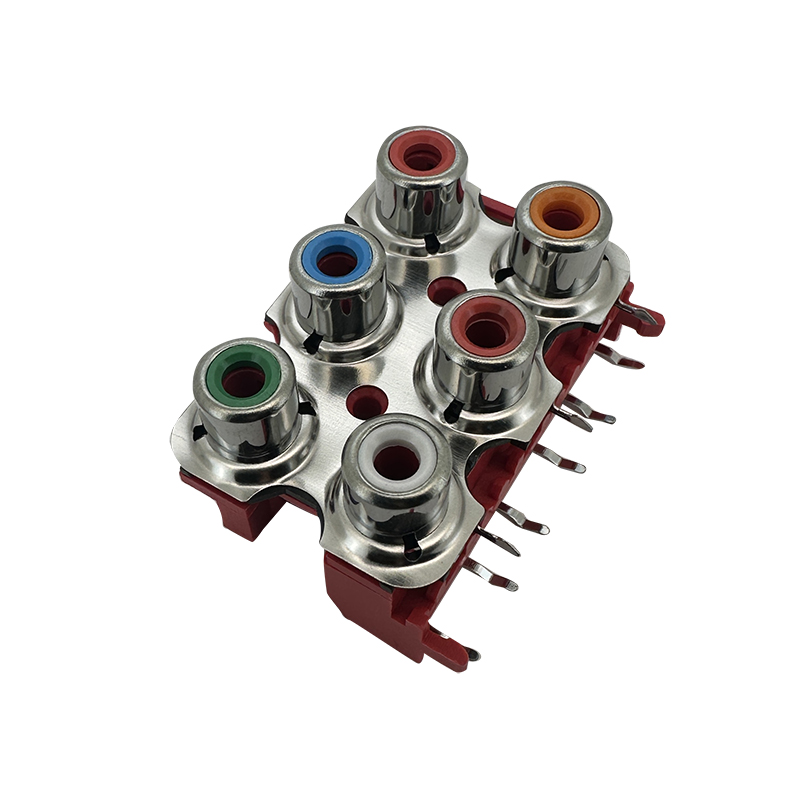

RCA Jack Connector 2x3 : RHTAYCA-610
