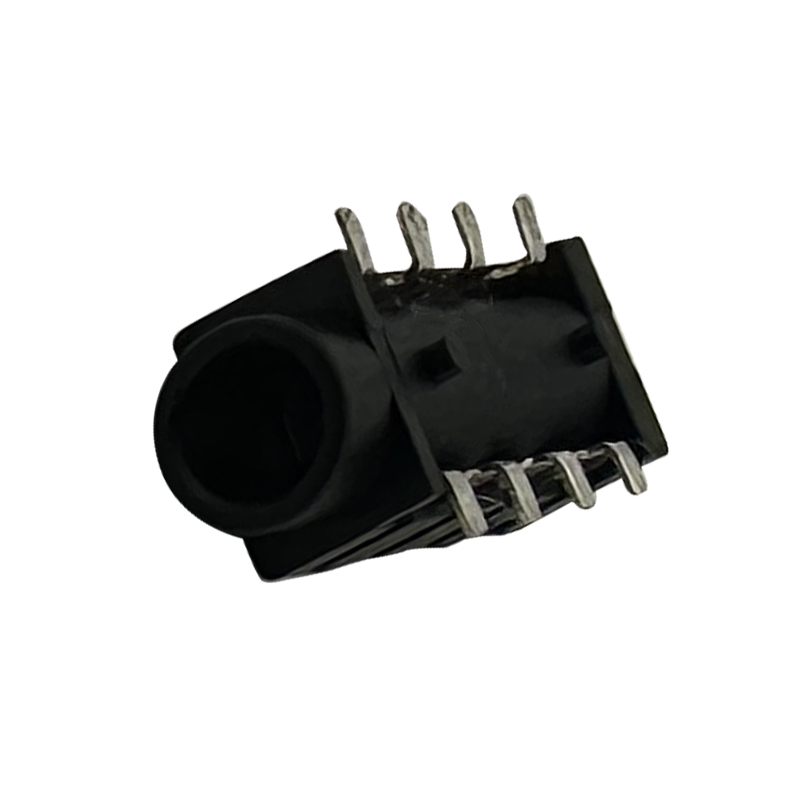

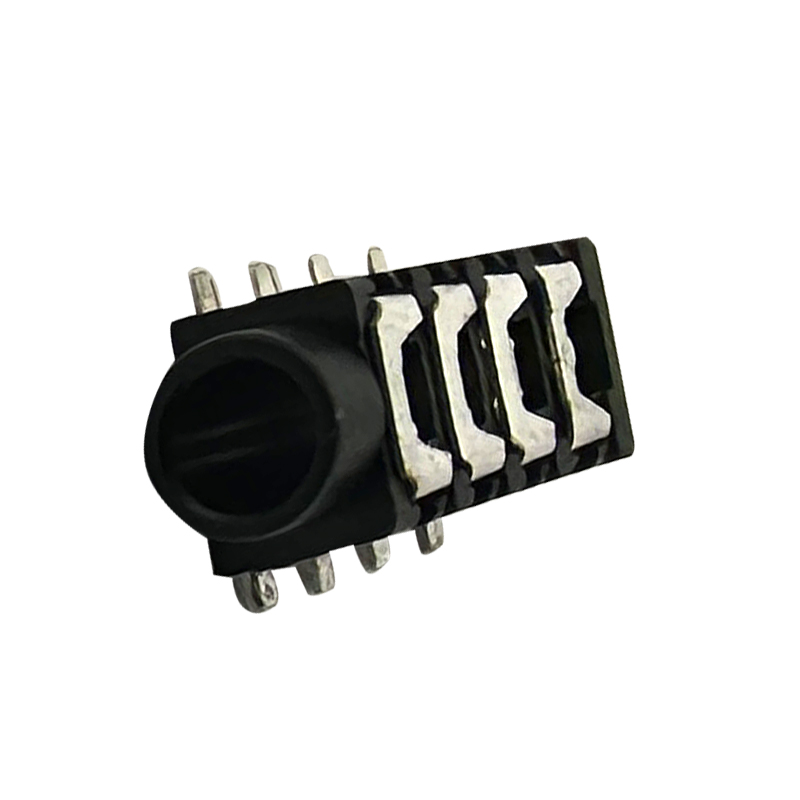

Phone Jack Series : RE-C-SPJ3.5-013

Series Part No: RE-C-SPJ3.5-013

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance:≦0.03Ω
Insulation resistance:≧100MΩ
Withstand voltage: AC500V (50Hz) / 1minute
Insertion Force :3-20 N
Life: 50000 times
Temperature:-30oC ~ 70oC

Phone Jack Series : RE-C-SPJ3.5-013
