Features
-Connector Type:Specifically designed for mono audio signals, suitable for connecting mono audio devices such as microphones, headphones, or other audio equipment.
-PCB Mount:Designed with solder pins or terminals for direct mounting onto a PCB, facilitating secure and stable integration into electronic circuits and audio equipment designs.
-Size and Dimensions:Compact size suitable for PCB integration, ensuring compatibility with standard PCB layouts and design constraints.
-Durability:Constructed from durable materials such as metal or high-quality plastic, ensuring robustness and longevity in various environmental conditions and applications.
Applications
1.Automotive Electronics
2.Consumer Electronics
3.Medical Devices
4.Industrial Equipment
Specifications
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5 A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ, min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing Material:PBT
Center Pin Material:
Terminal 1 :Brass
Terminal 2 :Copper Alloy
Terminal 3 :Brass
Bushing :Brass
Technical Documents
Please contact us for more information.

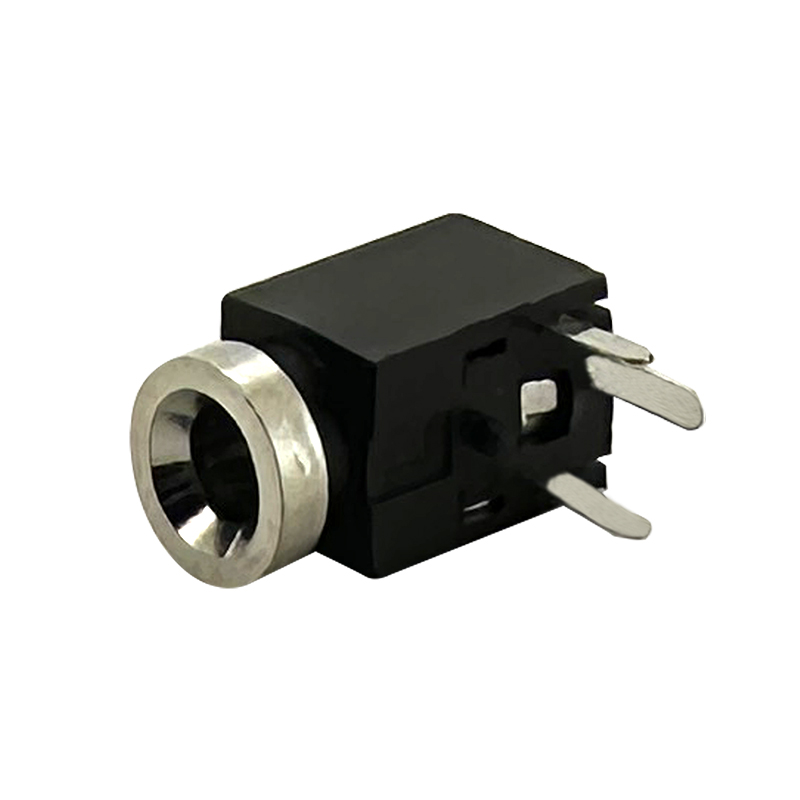

2.5mm Mono Jack For PCB Mount ：RHTAYG2.5-006A
