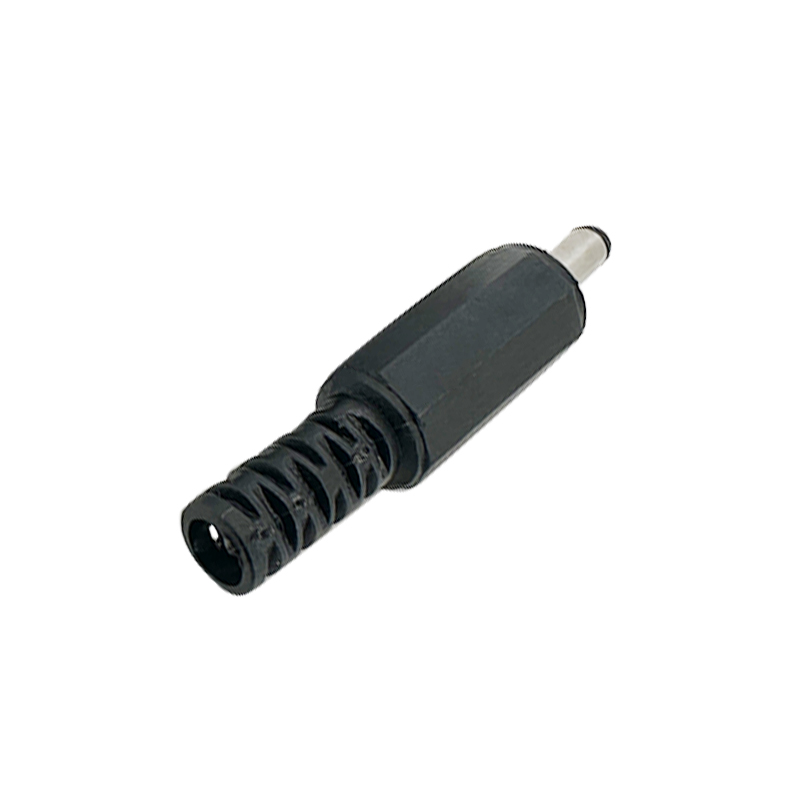

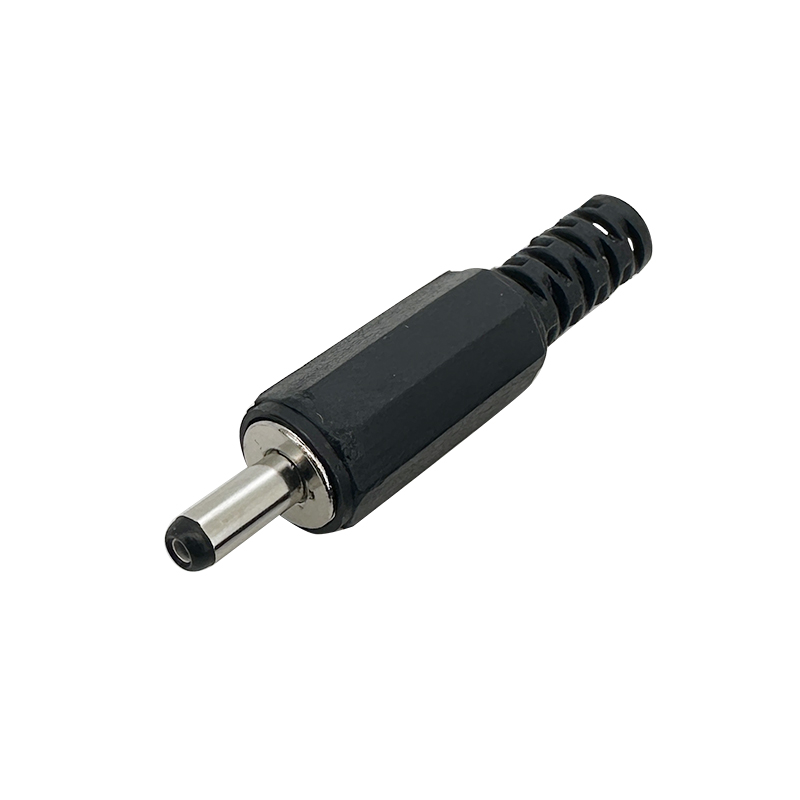

DC Power Plug : RE-C-DCP-02

Series Part No: RE-C-DCP-02

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Material:
Housing Material: PBT or PA66
Center Pin Material: Brass
Technical parameters:
Rated Load: DC 30V 1.0A
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥100MΩ
Withstand Voltage: AC500V(50Hz) 1min
Operating Temperature: -30ºC ~ 70ºC
Actuating Force: 3~20N
Life:5000Time

DC Power Plug : RE-C-DCP-02
