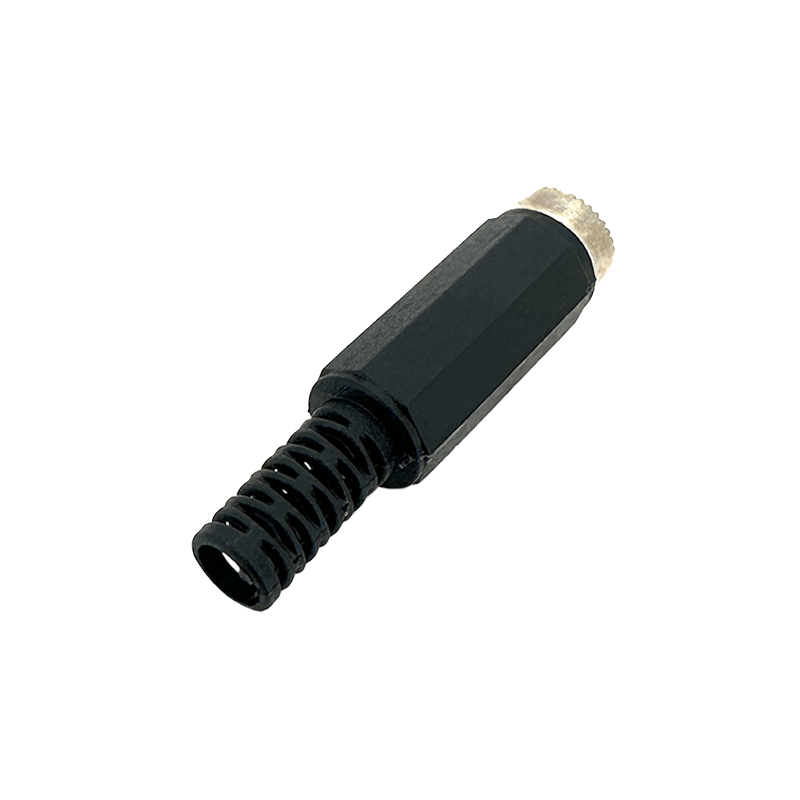

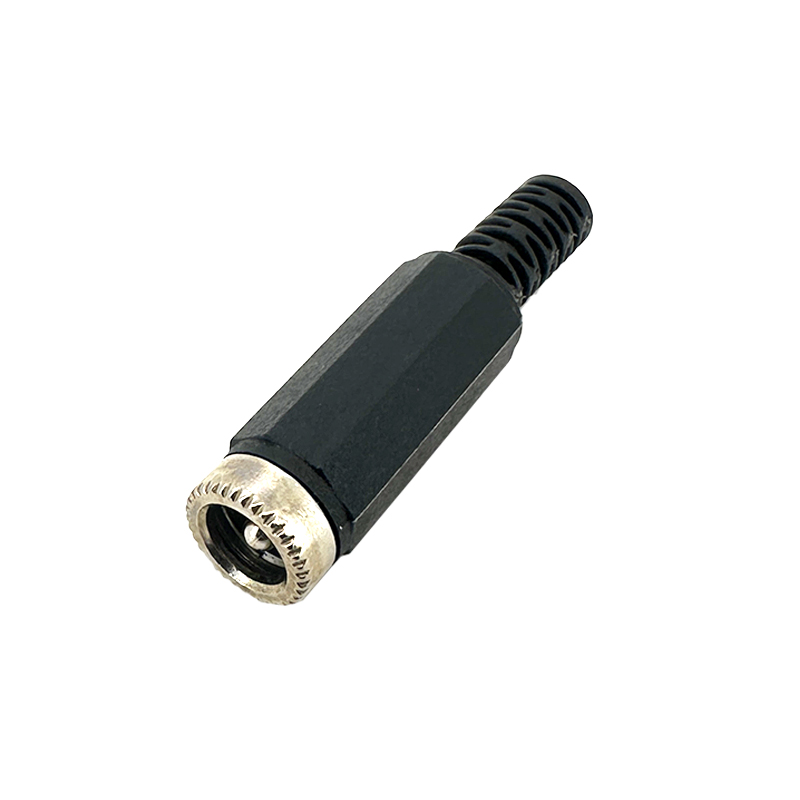

DC Power Plug Couplings:RHTAYCP-03

Series Part No: RHTAYCP-03

RoHS Compliance: Yes

Download
Datasheet:

Write Your Request Full P/N

Specifications Description Reviews

Features

-Current Rating: Commonly 1A to 10A, suitable for low to moderate power applications

-Contact Resistance: Low resistance to ensure minimal power loss

-Insulation Resistance: High resistance for reliable insulation and safety

-Coupling Mechanism: Available in push-in, screw-lock, bayonet, or threaded locking for secure connections

Applications

1.Consumer Electronics

2.Industrial & Automation Systems

3.Automotive & Electric Vehicles (EVs)

4.Medical & Healthcare Equipment

Specifications

Material:

1 BRASS (NICKEL)

2 ABS (WHITE)

3 P-BRONZE

4 PLASTIC TIBE

5 P-E (BLACK)

Technical parameters:

Rated Load: DC 30V 1.0A

Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥100MΩ

Withstand Voltage: AC500V(50Hz) 1min

Operating Temperature: -30ºC ~ 70ºC

Actuating Force: 3~20N

Life:5000Time

Technical Documents

Please contact us for more information.
