Features
-Design and Configuration:
Barrel Shape: Most DC power plugs have a cylindrical or barrel-shaped design with a central pin or socket for transmitting power.
Variety of Sizes: Available in various sizes and diameters (e.g., 5.5mm x 2.1mm, 3.5mm x 1.35mm), allowing compatibility with different devices and power requirements.
Polarity: Typically designed with a polarity convention (center positive or center negative) to ensure proper connection to devices without damaging them.
-Compatibility:
Standardization: Follows industry standards to ensure compatibility across different devices, power supplies, and electronic equipment.
Applications: Used in a wide range of consumer electronics, including routers, modems, CCTV cameras, LED lighting, audio equipment, and portable electronic devices.
-Power Ratings:
Voltage and Current Rating: Designed to handle specific voltage and current ratings, typically ranging from low voltage (e.g., 5V, 12V) to higher voltages depending on the application.
Amperage Capacity: Capable of carrying different levels of current, ensuring efficient power delivery without overheating or damage.
-Durability and Construction:
Materials: Constructed from durable materials such as plastic, metal (usually nickel-plated), or a combination to withstand wear and tear.
Reliability: Engineered for reliability and long-term use, providing stable electrical connections even under varying environmental conditions.
Applications
1.Automotive Electronics
2.Renewable Energy Systems
3.Security and Surveillance
4.Electronic Hobbyist Projects
Specifications
DC Power Plug (1.0mm / 1.35mm / 2.1mm / 2.5mm)
Technical parameters:
Housing Material: PBT or PA66
Center Pin Material: Brass
Rated Load: DC 30V 1.0A
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥100MΩ
Withstand Voltage: AC500V(50Hz) 1min
Operating Temperature: -30ºC ~ 70ºC
Actuating Force: 3~20N
Life:5000Time
Technical Documents
Please contact us for more information.

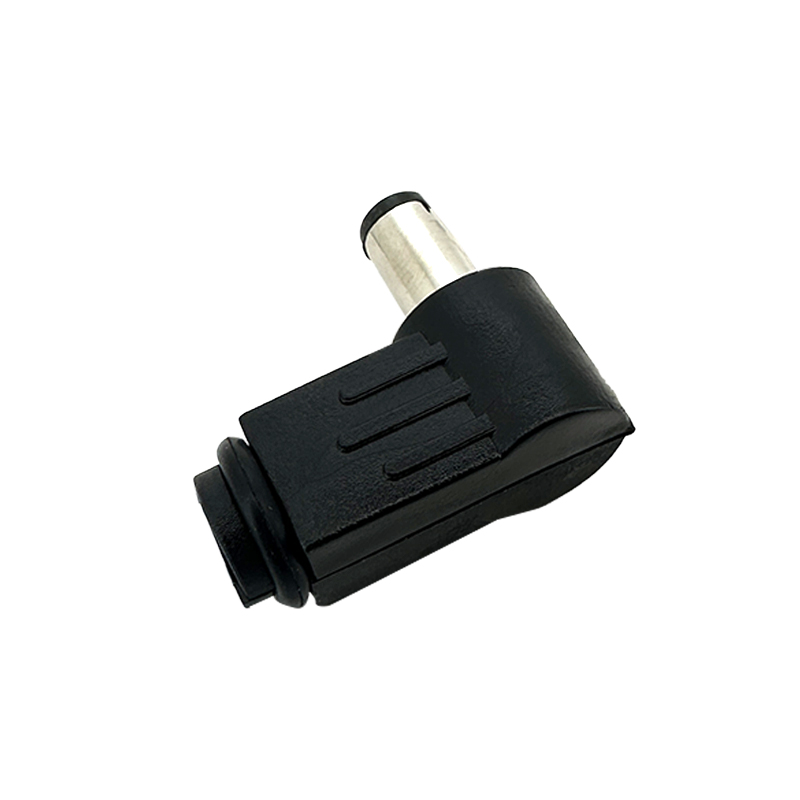

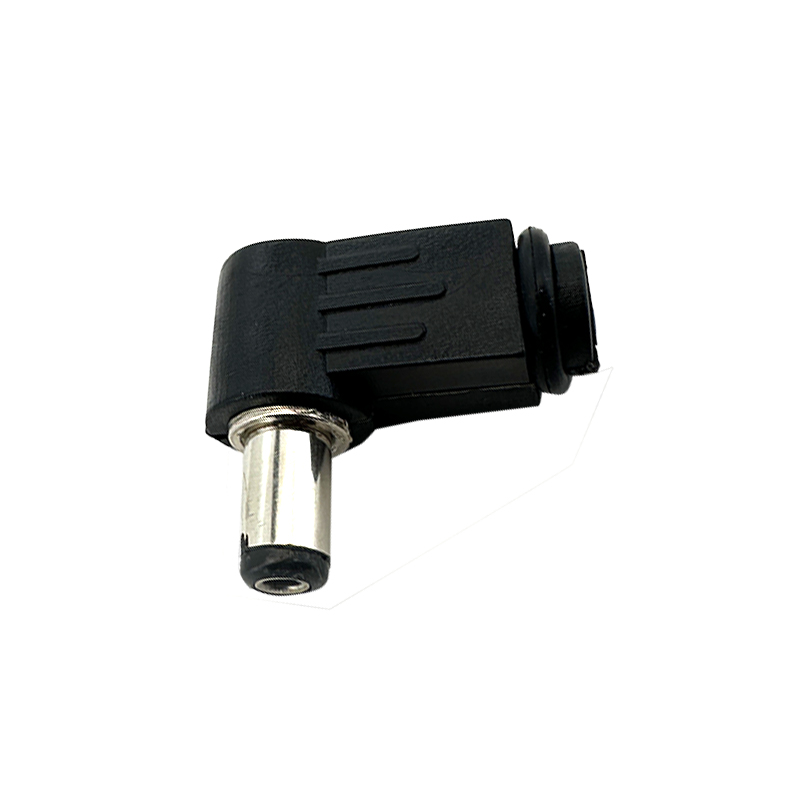

DC Power Plug :RHTAYCP-04
