Features
-Size and Dimensions:
Outer Diameter (Φ5.5 mm): Refers to the outer diameter of the plug where it connects to the device or power supply.
Inner Diameter (Φ2.5 mm): Refers to the inner diameter of the plug where the center pin is located.
Length (20.5 mm): Indicates the overall length of the plug from end to end.
-Design and Structure:
Barrel-Type Connector: This plug typically has a cylindrical or barrel-shaped design.
Two-Pole Configuration: It generally consists of two parts — an outer sleeve (negative or ground connection) and a center pin (positive connection).
Straight or Right-Angle: Available in both straight and right-angle configurations to suit different installation needs.
-Compatibility:
Standardized Size: Φ5.5Φ2.520.5 plugs are commonly used and widely available, ensuring compatibility with a variety of DC power jacks and devices.
Voltage and Current Ratings: Suitable for various voltage and current ratings, typically used for low-voltage DC applications such as power adapters, LED lighting, CCTV cameras, and other electronic devices.
-Durability and Materials:
Materials: Typically made from durable materials such as plastic or metal, ensuring longevity and reliability.
Ease of Use: Designed for easy insertion and removal, often with a snug fit to prevent accidental disconnection.
Applications
1.Industrial Equipment
2.Automotive Applications
3.Security and Surveillance
4.Telecommunications
Specifications
Note:
1.PBT
2.Brass,Nickel,1um~2um
3.P-Bronze,Nickel,1um~2um
Housing Material:Copper
Insertion force:3-30N
Rated load: 0.5A DC500V
Product certification:ROHS
Electrical life: 3000-5000 times
Technical Documents
Please contact us for more information.

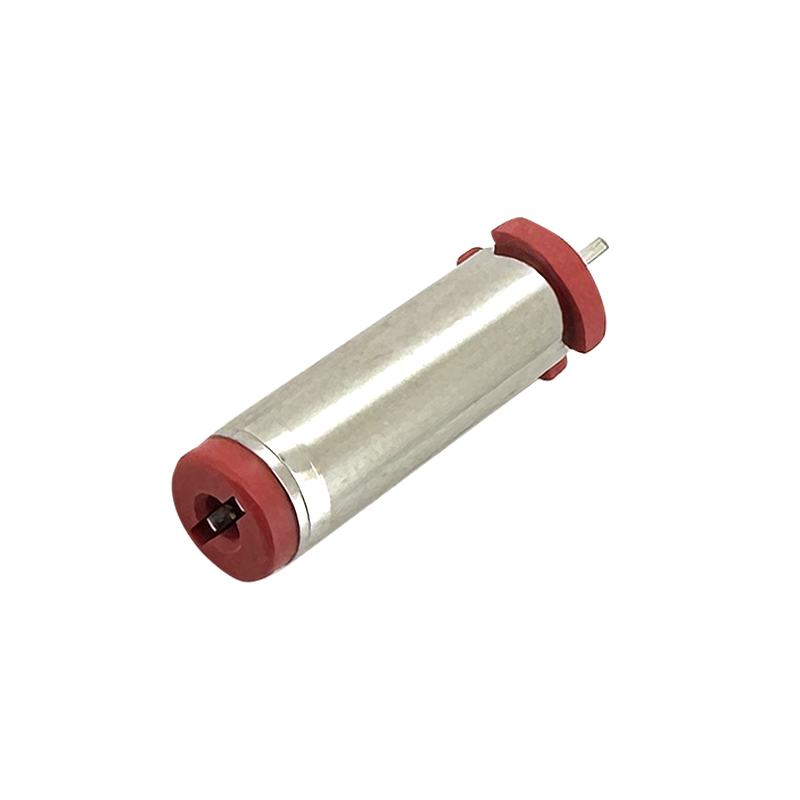

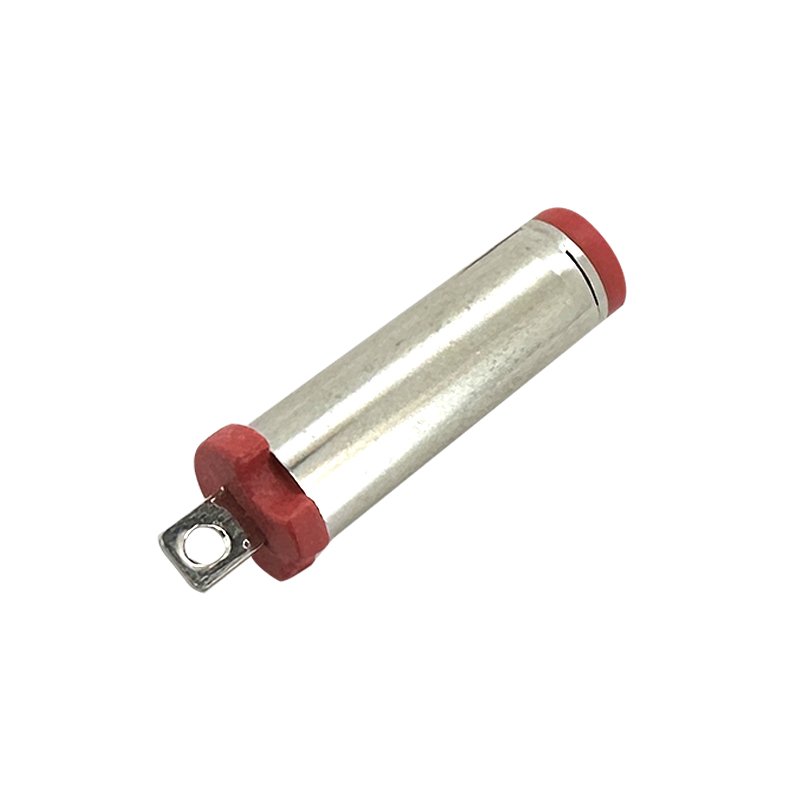

Φ5.5*Φ2.5*20.5 Plug :RHTAYC-5525
