Molex 732512200 Compatible
Features
-Gender: Female jack, designed to receive a male SMA connector (plug).
-Impedance: Standard impedance of 50 ohms, which is typical for RF applications.
-Frequency Range: Supports frequencies typically up to several GHz, depending on the specific design and construction quality.
-Durability: Constructed with materials suitable for maintaining electrical performance over a wide range of temperatures and environmental conditions.
Applications
1.Military and Aerospace Electronics
2.Industrial Automation
3.Medical Devices
4.Consumer Electronics
Specifications

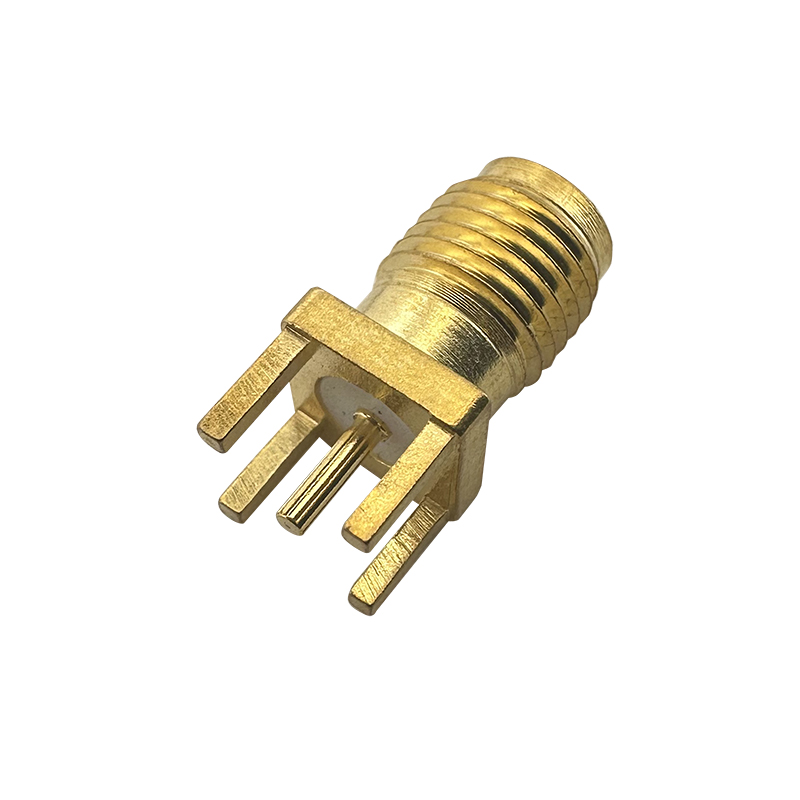

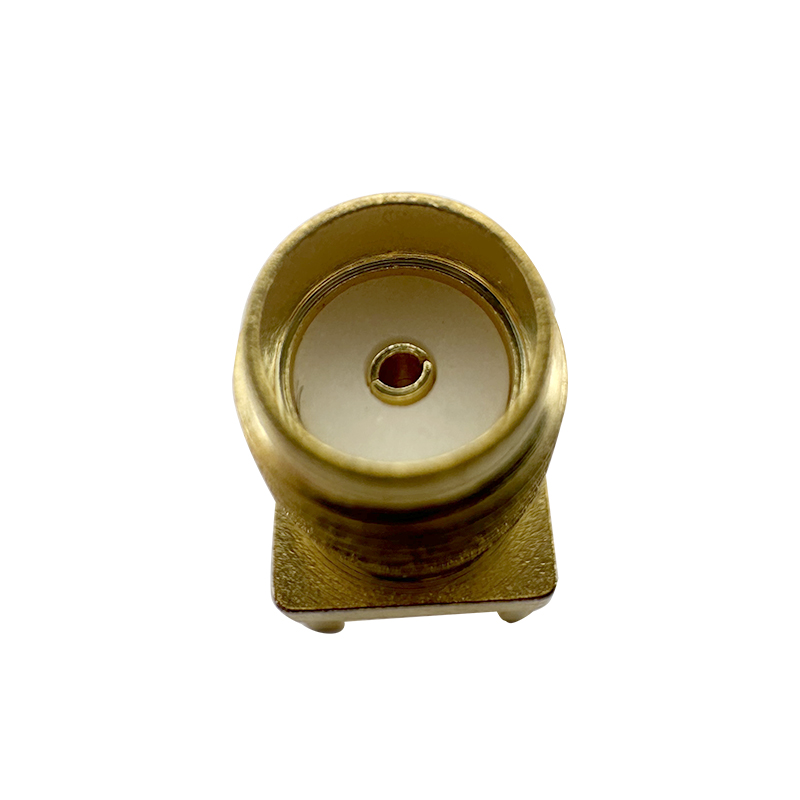

PCB Mount SMA Connector With Jack Female Straight Type
Electrical Specifications:
Impedance: 50 Ω
Frequency Range Max: 18 GHz
Voltage Rating : 335 volts rms.
Dielectric Withstanding Voltage : 500 volts rms.
VSWR : 1.15 +0 .02 f (GHz) for Straight connector typical
1.25 +0 .025 f (GHz) for Right angle connector typical
Contact Resistance Center contact: 2.0 mΩ
Body: 2.0 mΩ
Insulation Resistance: 5,000 MΩ
Mechanical Specifications:
Mating:1/4"-36 UNS thread coupling
Cable retention:6kgf typical
Durability:500Cycles Min.
Coupling nut retention:18kgf Min.
Temperature Range: - 55°C to +155°C
Material:
Connector body: Brass per QQ-B-626 ,gold Plating or nickel
Center contact Male: Brass,gold Plating
Center contact Female: Beryllium copper,gold Plating
Insulator: PTFE
Gasket:Silicone rubber
Crimp Ferrule:Annealed copper
Technical Documents
Please contact us for more information.
SMA CONNECTOR are available at RHT.
RHT can supply many SMA Connectr to replace Manufacturers
Amphenol, Cinch Connectivity, Hirose, Johnson / Cinch, Molex,
TE Connectivity, & more. We have been providing very large SMA CONNECTORS
in the international markets and get very good feedback from each customers .
Please view our large selection SMA CONNECTOR of below.
Amphenol RF 901-144 Compatible PCB Mount SMA Connector (Jack,Female,50Ω)：RHTAYMA001
