Features
-Modular Design: Allows for easy connection and disconnection of telephone cables using standard modular plugs (RJ11/RJ12), simplifying maintenance and troubleshooting.
-Durable Construction: Typically made from durable plastic materials, ensuring longevity and resistance to wear and tear in everyday use.
-Color Coding: Features color-coded terminals or markings to indicate proper wiring configurations for telephone lines, aiding in correct installation and connection.
-Compatibility: Compatible with standard telephone cables and equipment, supporting analog telephony services in residential homes, offices, and small business environments.
Applications
1.Residential Telephone Wiring
2.Small Office/Home Office (SOHO) Settings
3.Commercial Buildings
4.Retail and Hospitality
Specifications

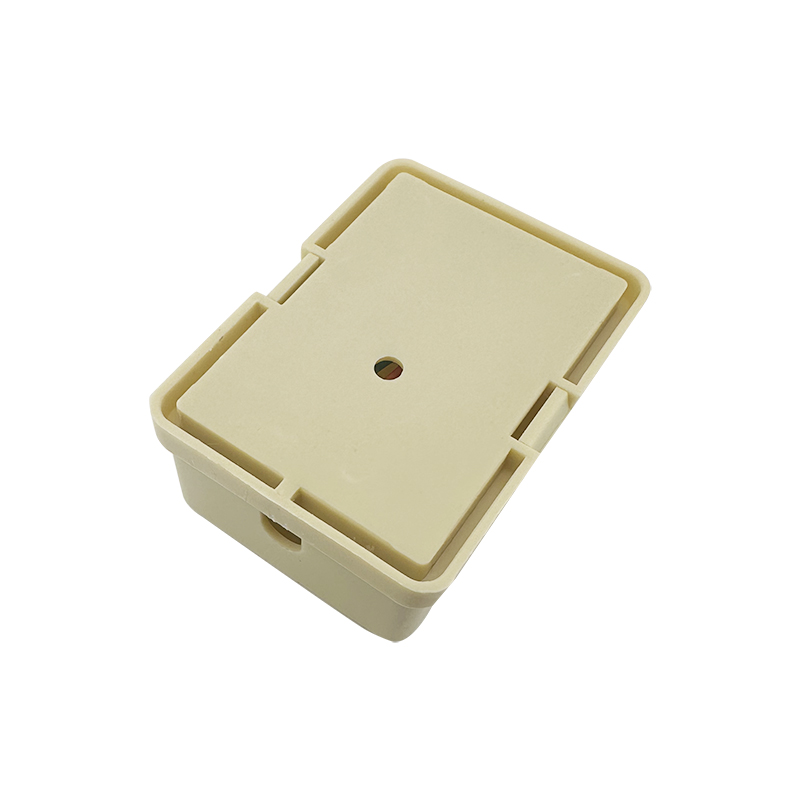

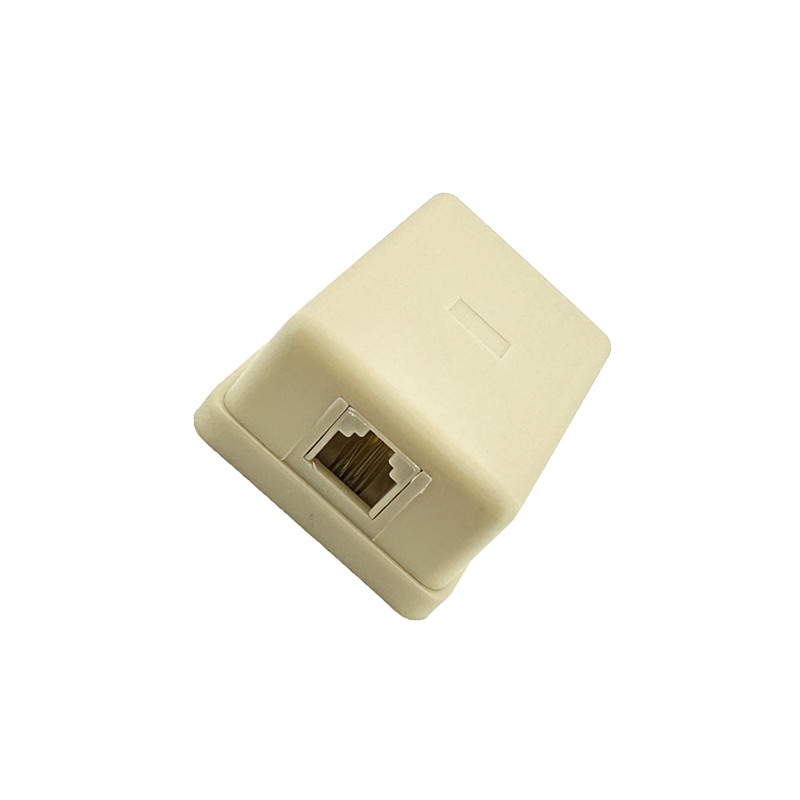

Telephone Surface Jack RJ11/RJ12
RJ11 Adapter : RHTLY86-6P4C
RJ12 Adapter : RHTLY86-6P6C
MATERIAL
HOUSING: ABS
CONTACT:PHOSPHOR BRONZE,HARD GOLD
SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH
ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX
WORKING TEMPERATURE : -35°C ~80°C
Technical Documents
Please contact us for more information.
Telephone Surface Jack RJ11/RJ12:RHTLY86-6P4C&RHTLY86-6P6C
