Features
-Connector Type: RJ45, which is the standard connector used for Ethernet cables in networking.
-Compatibility: Designed to connect two standard Ethernet patch cables with RJ45 connectors, allowing for extension or joining of Ethernet cables without the need for splicing or cutting wires.
-Modularity: Enables easy and quick installation by simply snapping into place between two RJ45 cables, making it suitable for both temporary and permanent network setups.
-Performance: Maintains the signal integrity of Ethernet connections, ensuring reliable data transmission over extended cable lengths.
Applications
1.Home Networking
2.Office Networking
3.Data Centers
4.Industrial Applications
Specifications

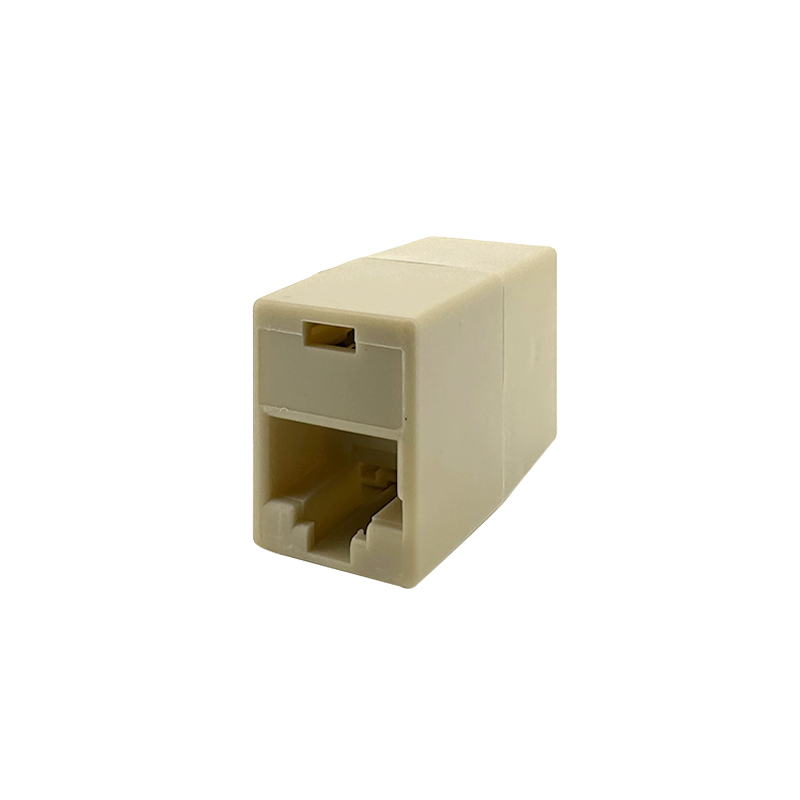

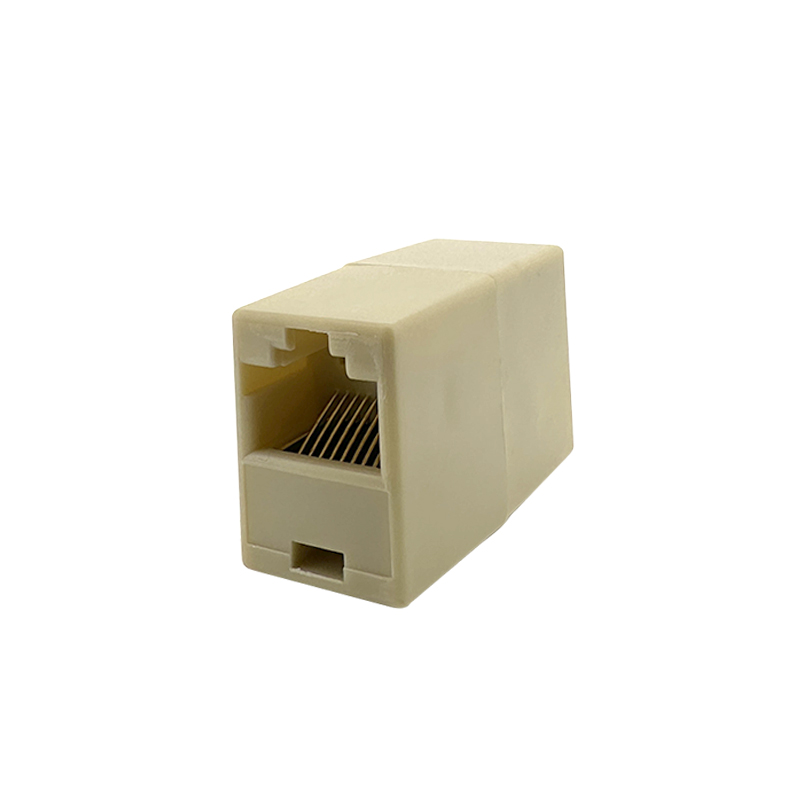

Modular Coupler RJ45
RHTLY76-8P8C
MATERIAL
HOUSING: ABS
CONTACT:PHOSPHOR BRONZE,HARD GOLD
SHIELDINJG:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH
ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX
WORKING TEMPERATURE : -35°C ~80°C
Technical Documents
Please contact us for more information.
Modular Coupler RJ45 :RHTLY76-8P8C
